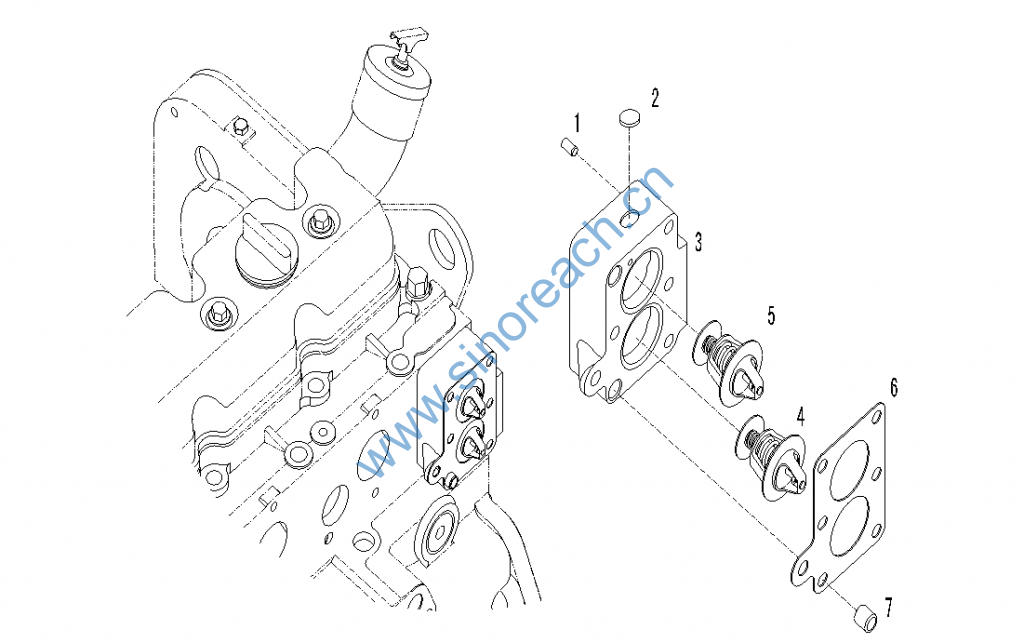

D22-000-39 调温器组件 THERMOSTAT GROUP

1 B00000121 圆柱销 DOWEL,PIN 2 GB/T119-A6*12
2 D02A-164-01 内六角螺塞(Z1/2) HEXAGON COUNTERSUNK PIPE PLUG 1
3 D22-101-30C 调温器体 THERMOSTAT HOUSING 1
4 D22-102-05 调温器部件 THERMOSTAT ASSY 1
5 D22-102-06 调温器部件 THERMOSTAT ASSY 1
6 D22-103-33 垫片 GASKET 1
7 D22-105-01 套筒销 ELASTIC PIN 2
