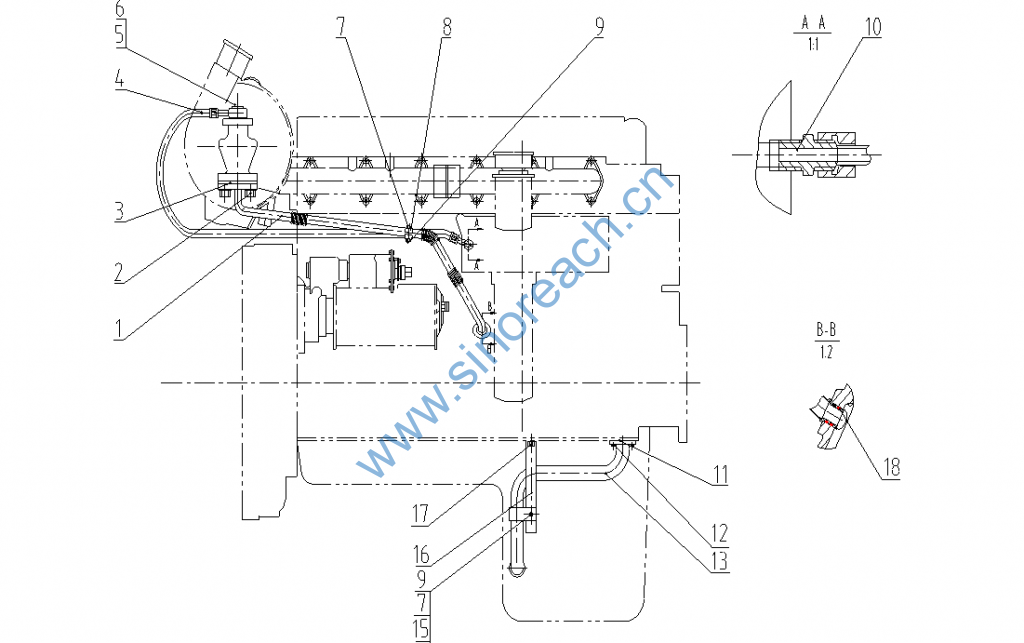

D19-000-88 机油管路组件 ENGINE OIL LINES GROUP

1 S00003328 增压器回油管焊接部件 TURBOCHARGER OIL RETURN TUBE ASSY (WELDED) 1

2 B00001999 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M10*25

3 D19-113-02 垫片 GASKET 1

4 D19-110-03C 增压器进油管 OIL INLET PIPE, TURBOCHARGER 1

5 B00002193 垫圈 WASHER 2 Q/SC642.1-03-12

6 B00002178 铰接螺栓 BANJO BOLT 1 Q/SC642.1-01-M12*1.25

7 B00002118 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M6*20

8 D19-003-01A 夹箍部件 CLAMP ASSY 2

9 B00000843 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M6-Y

10 D19-118-01 接头 JOINT 1

11 D19-114-01A 吸油管法兰垫片 GASKET, PIPE FLANGE-OIL SUCTION PUMP 1

12 B00003351 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREW 2 GB/T70.1-M6*20

13 D19-001-42 吸油管焊接部件 OIL SUCTION PIPE ASSY (WELDED), OIL SUCTION PUMP 1

14 B00001297 平垫圈 PLAIN WASHER 1 GB/T97.1-6-200HV-Y

15 B00001252 弹簧垫圈 SPRING WASHER 1 GB/T93-6

16 D19-105-30 吸油管支架 BRACE, OIL SUCTION PIPE-OIL SUCTION PUMP 1

17 B00002111 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M6*12

18 D02A-171-80 O型圈 O-RING 2
