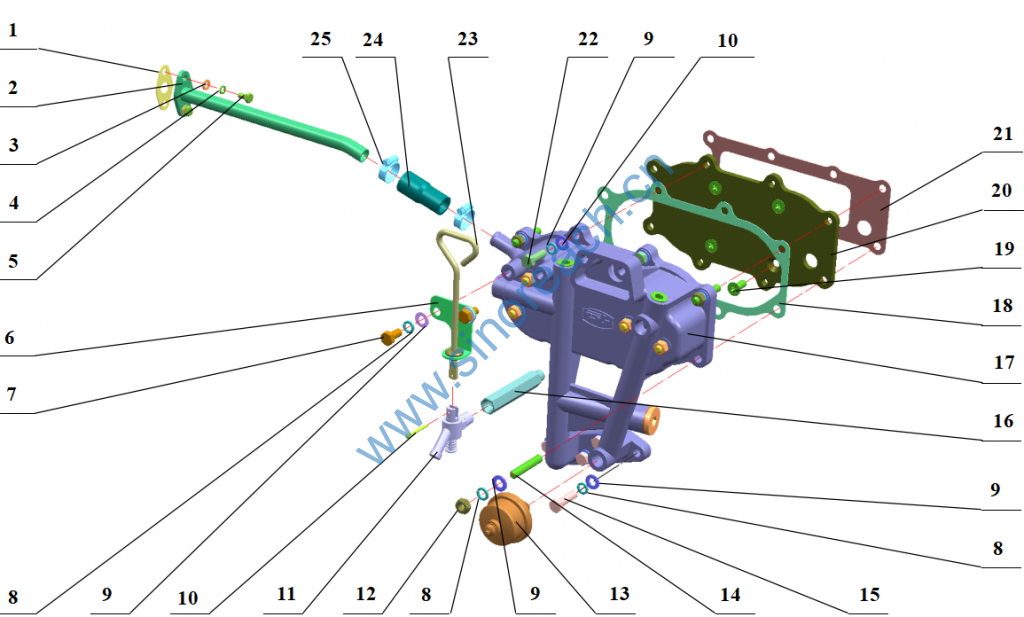

机油冷却器及放水开关部件Oil cooler and water drain cock Assy.

1.  HA01897 YN33-01.15-005 机冷器出水垫片 washer 1
2.  HA0106 YN33-01.15.03A 机冷器出水管焊合件 Exhaust pipe of cooler 1
3.  GB/T 97.1-2002 垫圈 Washer 6 2
4.  GB93-1987 垫圈 Sping washer 6 2
5.  GB/T 5783-2000 螺栓 Bolt M6×12 2
6.  HA0152 4100QB-01.08.01 水阀操作杆支撑组合件 Water valve operation 1
rod supporting assy
7.  GB/T 5783-2000 螺栓 Bolt M8×16 2
8.  GB93-1987 垫圈 Sping washer 8 2
9.  GB/T 97.1-2002 垫圈 Washer 8 2
10.  GB/T 91-2000 销 Pin 3×25 1
11.  HA01529 6105Q-1305010 气缸体放水阀总成 Drain valve assy 1
12.  GB/T 6170-2000 螺母  Nut M8 4
13.  HC02 24V/CA10 机油压力传感器 Oil pressure sensor 1
14.  GB898-88 螺柱 Bolt AM8×35 4
15.  GB/T 5783-2000 螺栓 Bolt M8×30 4
16.  HA01408 4100QBZL-01.08-008 放水开关接管 Drain cock connector 1
17.  HA01892 YN33-01.15.01 机油冷却器总成 Oil cooler assy 1
18.  HA01542 4100QBZL-01.15-003 机冷器密封垫片 Oil cooler washer 1
19.  GB/T 819.1-2000 十字槽沉头螺钉 Cross-recessed countersunk screws M8×20 4
20.  HA01541 4100QBZL-01.15-002 机冷器连接板 Connecting board 1
21.  HA01540 4100QBZL-01.15-001 机冷器连接板垫片 Washer, connecting board 1
22.  GB/T 5783-2000 螺栓 Bolt M8×25 4
23.  HA01727 4100QBZL-01.08-001 水阀操作杆 Water valve operation rod 1
24.  YN33-01.15-004 机冷器出水胶管 Exhaust pipe of cooler 1
25.  ZB J15 001-87 喉箍(不锈钢) Clamp d20 2
