排气系统 Exhaust System.

SINOREACH GROUP CO., LIMITED Posted on by

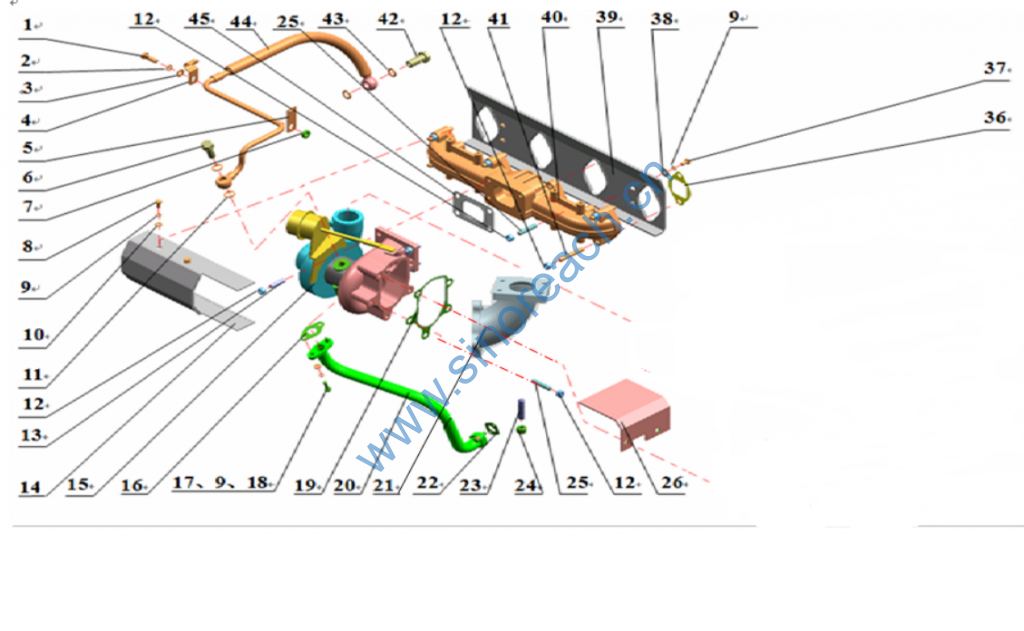

排气系统 Exhaust System.

  1. GB/T 5783-2000 螺栓 Bolt M8×25 1
  2. GB93-1987 垫圈 Spring washer 8 3
  3. GB/T 97.1-2002 垫圈 Washer 8 3
  4. HA11953 4100QBZL-11.12.04I-001 增压器进油管上夹片 Supercharger oil intake pipe upper sheet 1
  5. HA11952 4100QBZL-11.12.04-002 增压器进油管下夹片 Supercharger oil intake pipe lower clip 1
  6. HA1169 4100QBZ-11-006 铰接螺栓 Link bolt M12×1.5 1
  7. HA11409 4100QBZL-11.12-003 进油管夹垫圈 Intake oil pipe clamp washer 1
  8. GB/T 5783-2000 螺栓 Bolt M6×16 4
  9. GB93-1987 垫圈 Spring washer 6 12
  10. GB/T 97.1-2002 垫圈 Washer 6-140HV 4
  11. 9087060096 氟橡胶A型组合垫圈 Combination washer 12 2
  12. HA0930 4100QBZ-09-005 螺母 Nut M8 17
  13. HA0932 4100QBZ-09-006B 双头螺柱 Bolt L=22 4
  14. HA09196 4100QBZL-09.01.02A 排气防护板焊合件 Blind against exhausting welding-on 1
  15. LX28ZL-2A TB28 增压器总成 Turbo-charger 1
  1. φ22×38×1 增压器回油管法兰垫片 Flange gasket, Turbo-
    charger oil outlet pipe 1
  2. GB/T 5783-2000 螺栓 Bolt M6×20 4
  3. GB/T 97.1-2002 垫圈 Washer 6 4
  4. SHA08046 490GBZ-08104-LZ 排气尾管法兰垫片 Flanged packing of exhausting tail pipe 1
  5. HA11320 4100QBZ-11.11.01A 增压器回油管合件 Turbo-charger oil outlet pipe 1
  6. HA09324 YN38GBZ-09.02-LG 排气尾管焊合件 Exhaust tail pipe welding-on 1
  7. SHA3314 495ZQL-33002 增压器回油管法兰垫片 Flange gasket, Turbo-charger oil outlet pipe 1
  8. HA0962 4100QB-1A-09-002-NJ 排气管双头螺柱 Nut AM10×1×35 2
  9. HA0934 495QA-09-002 螺母 Nut M10×1 2
  10. HA0932 4100QBZ-09-006B 双头螺柱 Bolt L=30 3
  11. HA0992 4100QBZL-09.01-FT 排气防护板部件 Blind against exhausting 1
  12. HA0955 4100QBZ-09-006B 双头螺柱 Bolt L=35 2
  13. GB/T 96.1-2002 垫圈 Washer 8 2
  14. GB/T 5783-2000 螺栓 Bolt M8×30 2
  15. HA08082 YN38GBZ-08.03-LG 进气接管支架 Air intake connective
    pipe bracket 1
  16. ZBJ15001-87 喉箍NO.3 Clip Φ51～Φ70 2
  17. HA08110 4100QBZ-08-005C 增压进气胶管（L=70mm) Transition rubber tube 1
  18. HA08158 4102QBZL-08-003 进气接管 Intake connecting tube
  1. HA08168 4100QBZL-08.01-002A-FT 压板 pressure plate 1
  2. GB/T 6170-2000 螺母 Nut M8 2
  3. HA03271 4100QBZ-03-030 排气管垫片 Gasket, exhaust manifold 4
  4. GB/T 5783-2000 螺栓 Bolt M6×12 4
  5. GB/T 96.1-2002 垫圈 Washer 6 4
  6. HA09283 4100QBZL-09.01.01A 排气防护板部件Ⅰ Blind against exhausting Ⅰ 1
  7. HA09281 4100QBZ-09-001A-ⅠⅠⅠ 增压排气管 Exhaust manifold 1
  8. HA0994 4100QBZ-09-006B 双头螺柱 Bolt L=45 1
  9. HA1166 4100QBZ-11-013 铰接螺栓 Link bolt M14X1.5 1
  10. JB982-77 组合垫圈 Combination washer 14 2
  11. HA11540 4100QBZL-11.12A-II 增压器进油管合件 Turbo-charger oil inlet pipe 1
  12. HA09188 4100QBZL-09-002A-FT 增压器燃气进口法兰垫片 Flange gasket, Turbo-charger burning gas intake 1
