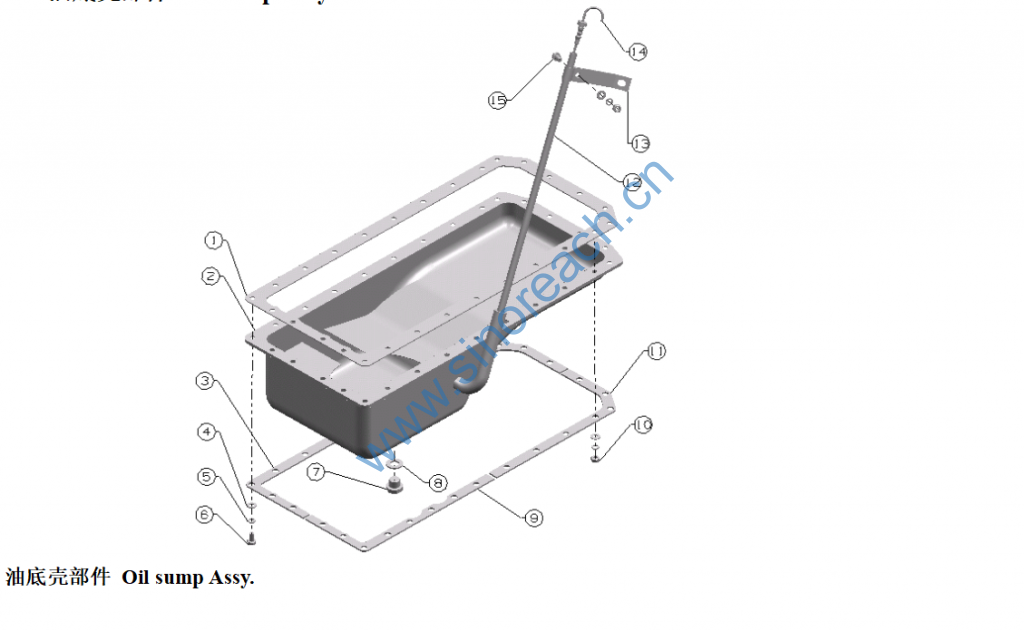

油底壳部件 Oil sump Assy

1 HA0189 4100QB-01-054A 油底壳垫片 Oil sump washer 1
2 HA01215 4100QB-01.06F.01 油底壳焊合件 Welded oil sump seaming 1
3 HA01243 4100QB-01.06D.01-009 加强板Ⅱ 1
4 GB97-76 垫圈8 Gasket 8 29
5 GB93-87 垫圈8 Gasket 8 29
6 GB21-76 螺栓M8×20 Bolt M8×20 12
7 HA0140 4100QB-1A-01.06-001 放油螺塞 Oil drain plug 1
8 JG982-77 组合垫圈18 Combination washer 18 1
9 HA01244 4100QB-01.06D.01-010 加强板Ⅲ 1
10 GB51-76 螺母M8 Nut M8 17
11 HA01242 4100QB-01.06D.01-008 加强板Ⅰ 1
12 HA01373 4100QB-1A-01.06.03 油尺套管焊合件 Dipstick bush welding-on 1
13 HA01232 4100QB-1A-01.06-004B 支承板 Support board 1
14 HA01184 4100QB-01.06.02C 油标尺合件 Dipstick seaming 1
15 GB5783-2000 螺栓M8×16 BoltM8×16 1
