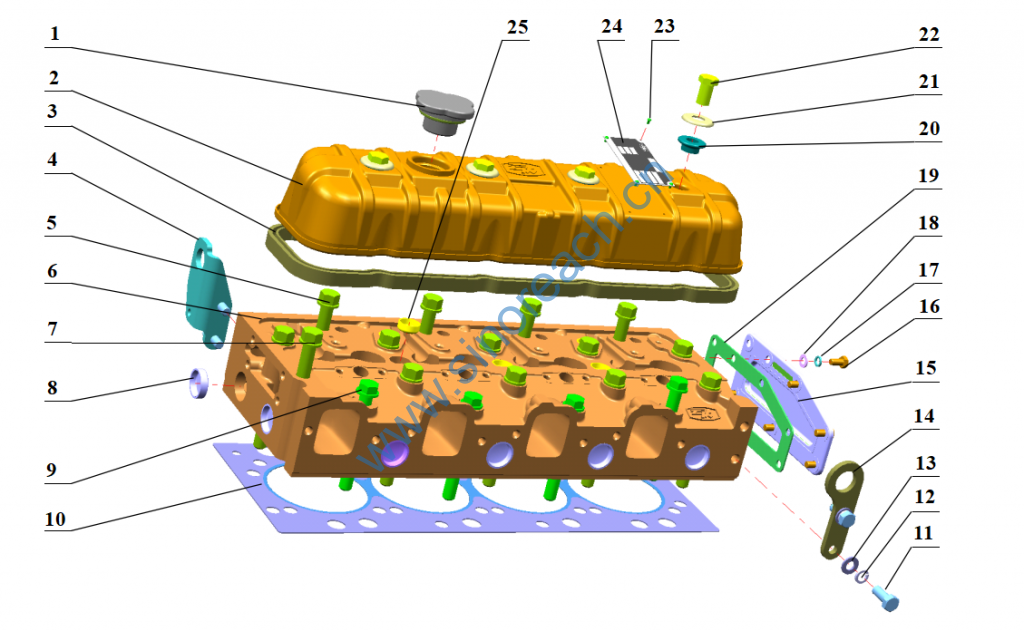

缸盖部件Cylinderhead Assy.

1.  HA0302 4100QBZL-03.03.02 加油口盖合件 Oil filler cap seaming 1
2.  HA03281 YN33-03.03.01 缸盖罩铆合件 Cylinder head cover riveting seaming 1
3.  HA03149 4100QB-03-014-FEV 缸盖罩垫片 Washer, cylinder head cover 1
4.  HA03167 4100QB-03-020A-EQ 前吊耳 Front hanger 1
5.  HA01115 4100QB-01-001 气缸盖螺栓 Cylinder head bolt M14×173 4
6.  HA03272 4100QBZL-03.01A 气缸盖部件 Cylinder head component 1
7.  HA01116 4100QB-01-002 气缸盖螺栓 Cylinder head bolt M14×125 10
8.  HA01238 495QA-01.01-007 碗形塞 Pug φ32 6
9.  HA01117 4100QB-01-003 气缸盖螺栓 Cylinder head bolt M14×111 4
10.  HA01881 4100QBZL-01-005 气缸盖垫片 Washer,cylinder head 1
11.  GB/T 5783-2000 螺栓 Bolt M10×25 4
12.  GB93-1987 垫圈 Sping washer 10 4
13.  GB/T 97.1-2002 垫圈 Washer 10 4
14.  HA0321 2100QB-03-021 后吊耳 Rear hanger 1
15.  HA03123 495QA-03-009 缸盖后盖板 Cylinder head rear cover 1
16.  GB/T 5783-2000 螺栓 Bolt M8×16 6
17.  GB93-1987 垫圈 Sping washer 8 6
18.  GB/T 97.1-2002 垫圈 Washer 8 6
19.  HA0331 495QA-03-008 缸盖后盖板垫片 Washer,rear cover plate of cylinder cover 1
20.  HA0336 4100QB-03-015 密封套 sealing sleeve 4
21.  HA03126 4100QB-03-016 垫片 Washer 4
22.  HA0354 4100QB-03-017 缸盖罩螺母 Cylinder head cover nut 4
23.  GB867-1986 铆钉 Rivet 2×6 4
24.  HA03313 YN33-03.03-006 铭牌 Nameplate 1
25.  HA03124 495QA-03.01-006 碗形塞 Pug φ24 6
