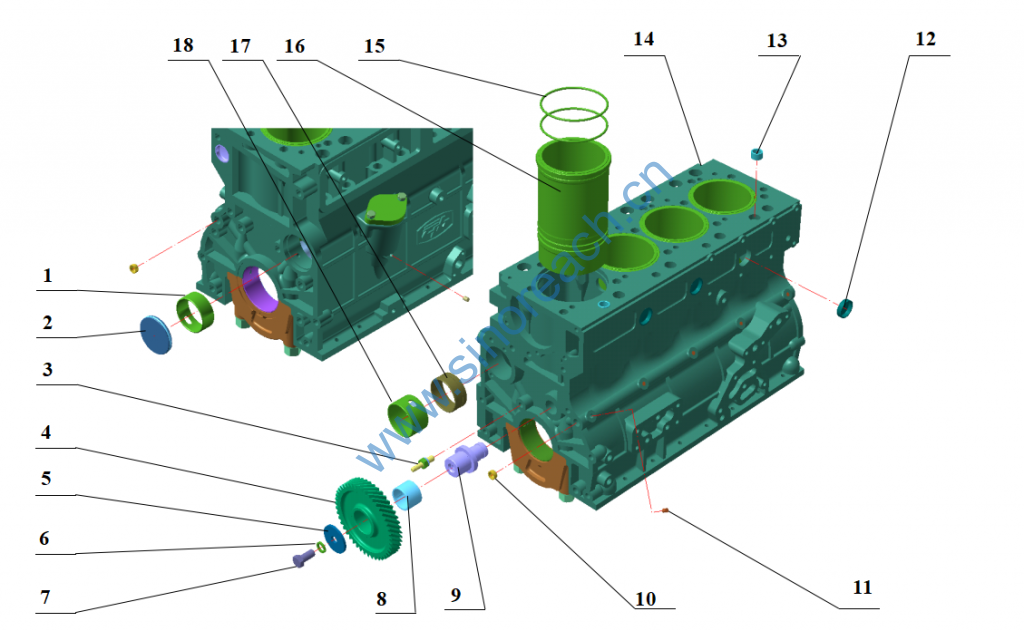

机体部件Cylinder Block Assy.

1. HA01106 4100QB-01-014 凸轮轴衬套Ⅲ Camshaft bushing III 1
2. HA011 4100QB-01.13 堵头组合件 Plug seaming 1
3. HA012 4100QB-01.14 喷嘴组合件 Nozzle seaming 1
4. HA01899 4100QBZ-01.02.01-001 惰齿轮 Idle gear １
5. HA01222 4100QB-01.02-002 惰齿轮挡圈 Idle gear Baffle 1
6. GB93-1987 垫圈 Sping washer 12 1
7. GB/T 5783-2000 螺栓 Bolt M12×22-8.8 1
8. 4100QB-01.02.01-002A 惰齿轮衬套 Bushing, idle gear 1
9. HA0132 4100QB-01.02-001 惰齿轮轴 Shaft, idle gear 1
10. HA03125 4100QB-01-017 碗形塞 Plug φ15 2
11. HA01123 4100QB-01-019 堵塞 Plug 6
12. HA01238 495QA-01.01-007 碗形塞 Plug φ32 4
13. HA013 495QA-01-022 定位套管 Locating bush 2
14. HA01282 4102QBZ-01.01 机体机械加工部件 Engine block machined parts 1
15. HA0171 4100QB-01-012 封水圈 Water seal ring, cylinder liner 8
16. HA01330 4102QB-01-011B 气缸套 Cylinder liner 4
17. HA0110801 4100QB-01-014-Ⅱ 凸轮轴衬套Ⅱ Camshaft bushing II 1
18. HA01105 4100QB-01-013A 凸轮轴衬套Ⅰ Camshaft bushing I １
