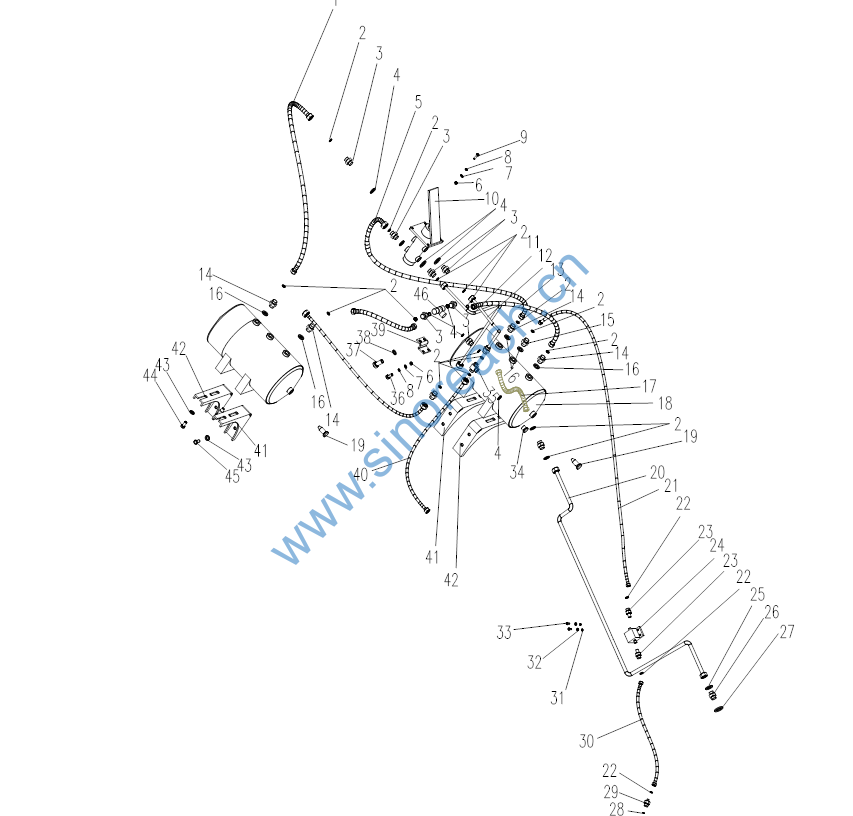

Z60H.9制动系统（三） Brake System（3）

1 W-13-000002 气管|DH/G18(L=1000) Hose joint 1
2 B-Q020710-00018 O形圈14×2.4 O-ring 12
3 Z30.9.3-1 接头 Joint 1
4 B-J010020-00007 垫圈 22 Washer 7
5 W-13-000019 气管|DH/G18(L=1200) Hose joint 2
6 B-G061700-00036 螺母 M8ZnD Nut 6
7 B-G00097B-00023 垫圈 8 nD Washer 6
8 B-G000930-00017 垫圈 8 Washer 6
9 B-G057830-00146 螺栓 M8x30ZnD Bolt 4
10 W-18-00034 气制动阀|T138B Brake valve 1
11 Z60F.9.2 制动阀出气管（前） pipe 1
12 Z60F.9.1 制动阀出气管（后） pipe 1
13 W-13-000029 气管|DH/G18(L=300) Hose joint 1
14 Z30.9.4-1 接头体 Joint 4
15 Z60F.9.13-2 接头 Joint 1
16 B-J010020-00005 垫圈 18 Washer 5
17 W-13-000040 气管|DH/G18(L=900) Hose joint 1
18 Z60F.9.6 右储气筒 Right air tank 1
19 W-18-00005 消音安全阀|FXS-1 Valve 2
20 Z60H.9.5 空压泵出气管 pipe 1
21 W-13-00006 气管|DH/G12x1.25(L=1600) Hose joint 1
22 B-Q020710-00098 O形圈8×1.9 O-ring 3
23 YZ16.9C-5 接头 Joint 2
24 W-18-00012 气压调节器|EQ140-3512C-01 Air adjuster 1
25 Z30E.11-8 紫铜垫 Washer 1
26 Z50H.9A-1 接头 Joint 1
27 B-J010020-00009 垫圈 27 Washer 1

28 B-J010020-00001 垫圈 10 Washer 1
29 Z50H.9A-2 接头 Joint 1
30 W-13-00010 气管|DH/G12x1.25(L=600) Hose joint 1
31 B-G00097B-00021 垫圈 6 ZnD Washer 2
32 B-G000930-00015 垫圈 6 Washer 2
33 B-G057830-00130 螺栓 M6x16 ZnD Bolt 2
34 W-11-00046 制动灯开关|JN150 Switch 1
35 YZ12.9.1 三通接头 Joint 1
36 B-G057820-00166 螺栓M8x65 ZnD Bolt 2
37 B-G057830-00137 螺栓 M12x20ZnD Bolt 6
38 B-G00097B-00004 垫圈 12 ZnD Washer 10
39 Z60F.9-15 支板 Support 1
40 W-13-00048 胶管总成1203506085A4 Tube 1
41 Z40E.9.5 支架 Support 2
42 Z40E.9B.9 支架 Support 2
43 B-Q020490-00003 垫圈 12 Washer 16
44 B-G057830-00037 螺栓M12x35 ZnD Bolt 4
45 B-G057830-00030 螺栓M12x25 ZnD Bolt 16
46 W-18-00018 阀|JN162-3515011 Valve 1
