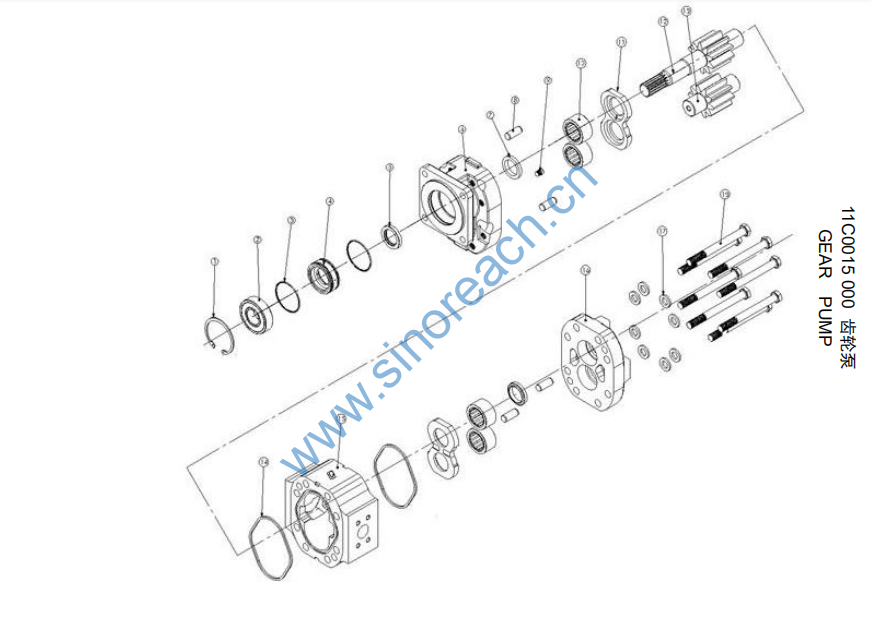

CLG856I 11C0015 000 齿轮泵 GEAR PUMP

1 11C0015-1 孔用弹性挡圈 SNAP RING 1
2 11C0015-2 外置滚珠轴承 OUTBOARD BEARING 1
3 11C0015-3 O 型密封圈 O-RING 2
4 11C0015-4 油封骨架 SEAL RETAINER 1
5 11C0015-5 骨架油封 SHAFT SEAL 1
6 11C0015-6 前盖 SHAFT END COVER 1
7 11C0015-7 二次密封环 RING SEAL 1
8 11C0015-8 圆柱销 DOWEL PIN 2
9 11C0015-9 螺塞 PLUG 1
10 11C0015-10 滚针轴承 CROWNED ROLLER
BEARING 2
11 11C0015-11 侧板 THRUST PLATE 1
12 11C0015-12 主动齿轮 DRIVE GEAR 1
13 11C0015-13 从动齿轮 IDLER GEAR 1
14 11C0015-14 方形密封圈 SQUARE GASKET SEAL 2
15 11C0015-15 泵体 GEAR HOUSING 1
16 11C0015-16 后盖 PORT END COVER 1
17 11C0015-17 垫圈 HAREDNED WASHER 8
18 11C0015-18 六角头螺栓 HEX HEAD CAP SCREW 8
