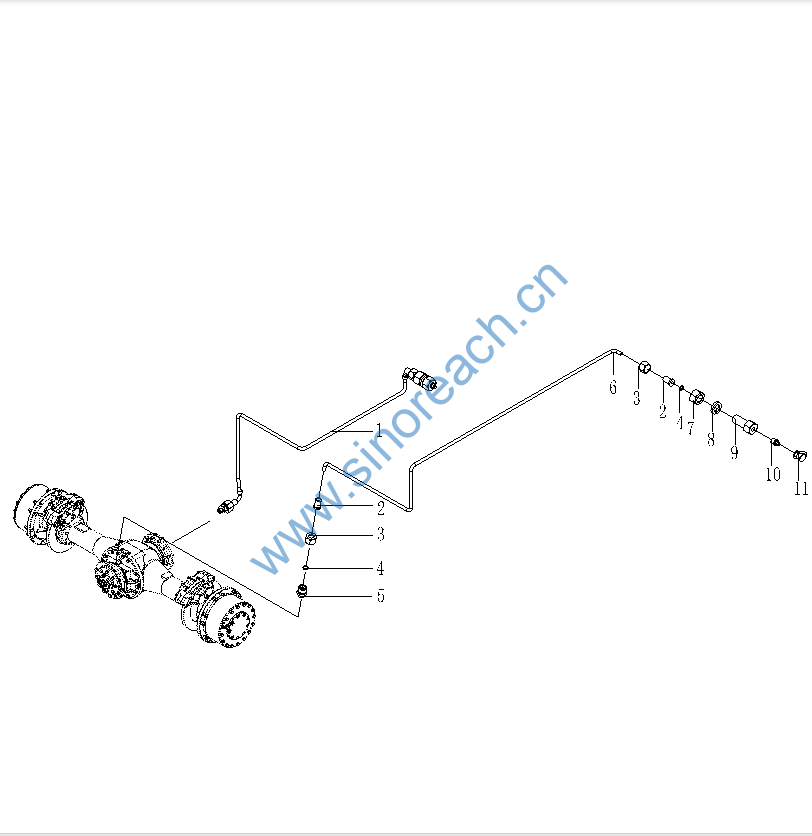

黄油润滑管路   Butter Lubricating Piping

1 932.8.2 1 后桥后部润滑油管 Butter Lubricating Piping 1 00005-
2 Z30.12.7-3 1 联管接套 Coupling sleeve 2 00005-
3 B-J009810-00002 1 螺母M16X1.5 Nut 2 00005-
4 B-Q020710-00007 1 O型圈11X1.9 Ball valve 2 00005-
5 B-J009840-00001 1 接头10/M10×1 tie-in 1 00005-
6 932.8.1.1-1 1 钢管 Steel tube 1 00005-
7 B-G061730-00007 1 螺母M16×1.5ZnD Nut 1 00005-
8 B-G000930-00006 1 垫圈16 Washer 1 00005-
9 Z30.12.7-1 1 外接螺栓 Bolt 1 00005-
10 B-J07940A-00001 1 油杯M10x1 Oil cup 1 00005-
11 W-12-00192 1 油杯防尘套M10×1 Oil cup dust sheet 1 00005-
