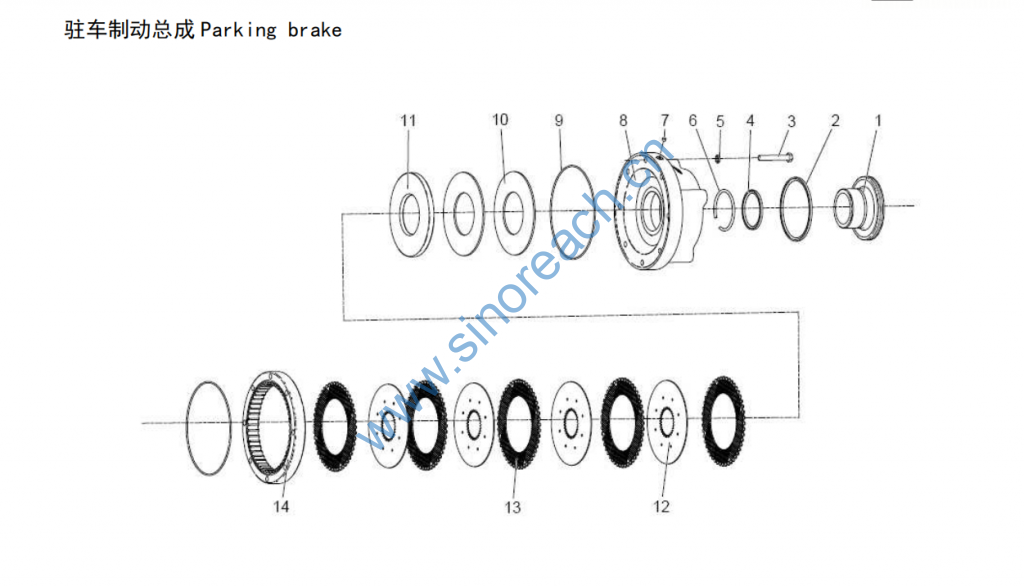

驻车制动总成 Parking brake

1 活塞 Piston TD16030022 1
2
组合油封 Combine oil seal W44000053 8T-637 1
O 型圈 O-ring W44000078 5F-0149 1
油封环 Oil seal ring W44000079 5J-7852 1
3 螺栓 M14X90-10.9 Boltm14x90-10.9 TD16030036 8
4
组合油封 Combine oil seal W44000054 3W-5928 1
O 型圈 O-ring W44000080 7J-8956 1
油封环 Oil seal ring W44000081 8T-6378 1
5 垫圈 14 Washer 14 B060111404 GB93-87 8
6 卡环 Lock ring TD16030026 1
7 螺塞 Z1/8″ Plug Z1/8″ B110400108 JB/ZQ4447-1997 1
8 制动缸体 Brake cylinder block TD16030024 1
9 O 型圈 O-ring W44000052 2
10 蝶形弹簧 Spring TD16030027 2
11 压板 Clamping plate TD16030025 1
12 从动片 Driven disc TD16030023 4

13 主动片 Driven disc TD16030018 5
14 齿圈 Ring gear TD16030019 1
