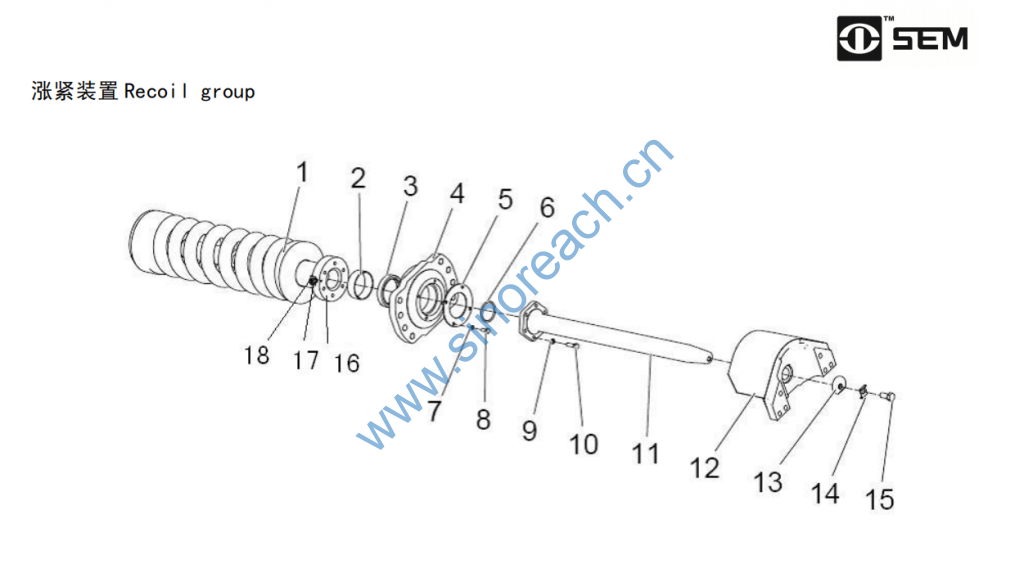

涨紧装置 Recoil group

1 涨紧弹簧组件 Recoil group W44020110 1
2 铜套 Copper coppy TD16029202 1
3 油封 Oil seal W44020121 95×120×20 1
4 盖 Cover TD16029201 1
5 挡板 Plate TD16029206 1
6 O 形圈 69×5.3 O-ring 69×5.3 B160140690 GB/T 3452.1-2005 1
7 垫圈 10 Washer 10 B060111003 GB93-87 4
8 螺栓 M10×25 Bolt M10×25 B040911025 GB/T5783-2000 4
9 垫圈 12 Washer 12 B060111203 GB93-87 6
10 螺栓 M12×40-10.9 Boltm12×40-10.9 B040961240 GB/T5783-2000 6
11 顶杆 Brace TD16029203 1
12 支座焊接组件 Bracket TD16029220 1
13 垫板 Backer plate TD16029204 1
14 锁片 Lock washer TD16029205 1
15 螺栓 M18×40-10.9 Bolt M18×40-10.9 B040961840 GB/T5783-2000 1
16 油缸 Cylinder W44020101

17 卡板 Plant W44020122 W44020100A-04 1
18 注油阀 Oil Valve W44020123 07959-20001 1
