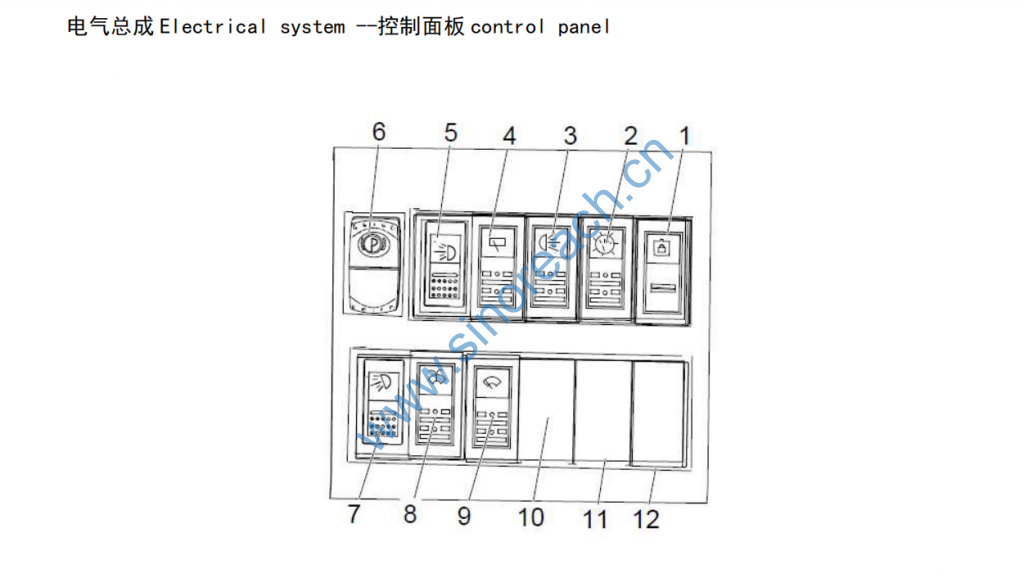

电气总成 Electrical system –控制面板 control panel

1 工作装置锁止开关 Lockup switch W46000127 1
2 仪表灯开关 Gauge light switch W370000520B JK939-002-3.27 1
3 后大灯开关 Rear lamp switch W370000850B JK939-002-3.25S 1
4 后雨刷开关 Windshield wiper switch W370000460B JK939-047-2.28 1
5 前大灯开关 Head lamp switch W370001200B 1
6 驻车制动开关 Brake switch W46000128 1
7 铲刀照明灯开关 Cutter switch W46000024 JK939-002 1
8 后大灯开关 Rear lamp switch W370000850B JK939-002-3.25S 1
9 前雨刷开关 Windshield wiper switch W370000450B JK939-047-2.5 1
10 盖板 Cover plate W110007470 8SQS.311.000 3
11 侧单框架(可组合) Mount W110008740 8SQS.084.005 4
12 中间单框架(可组合) Middle frame W110008750 8SQS.084.006 7
