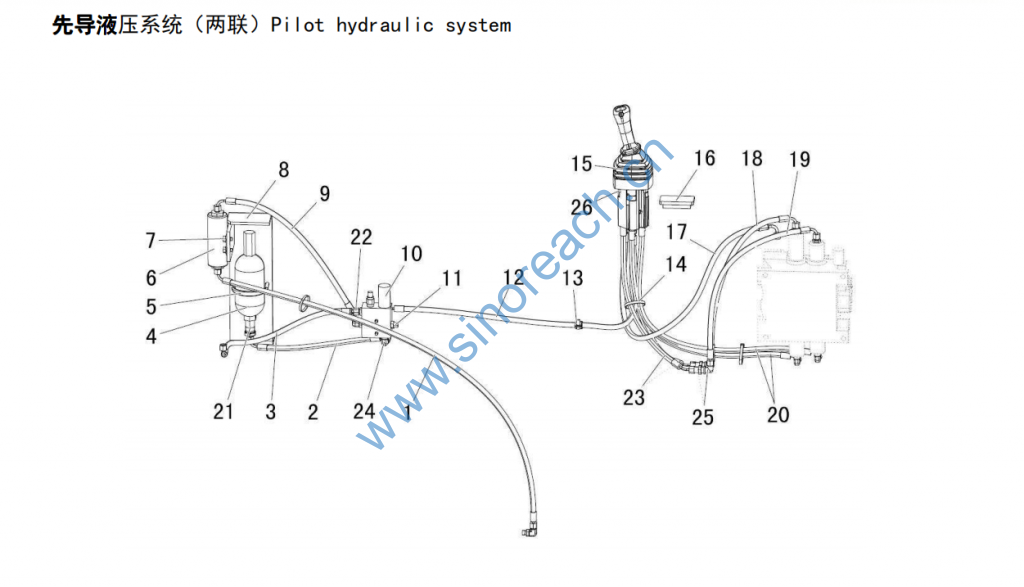

先导液压系统（两联）Pilot hydraulic system

1 高压软管组件 High pressure hose TD16019001 Ф6.4 1
2 高压软管组件 High pressure hose TD16019005 Ф6.4 1
3 高压软管组件 High pressure hose TD16019007 Ф7.9 1
4 先导蓄能器 Pilot accumulator W110021000 NXQ△-L0.63/※-H 1
5 U 形螺栓 U-bolt Z520520930 1
5 锁紧螺母 Locknut B500151013 GB/T889.2-2000 2
6
压力过滤器 Pressure filter W110015500A YL-161-00 1
压力过滤器滤芯 Filter W110015510A
7 螺栓 Bolt B040911020 GB/T5783-2000 7
7 垫圈 Washer B060461002 GB/T97.1-2002 9
8 支架组件 Bracket assemble TD16019027 1
9 高压软管组件 High pressure hose TD16019003 Ф6.4 1
10 电磁阀 Electric solenoid valve W42063000 1
11 测压接头 Pressure tap W42000291 PT-29 1
12 高压软管组件 High pressure hose TD16036005 Φ6.4 1
13 单管卡 Single clamp MG19013011 Φ9.5

14 扎带 Clip W110001370 ZD200×8 2
15 比例先导阀 Pilot valve W42122000 4THF5-00 1
15 保护套 Protective cover W42122010 4THF5-19 1
16 橡胶盖 Rubber cap TD16024101 1
17 高压软管组件 High pressure hose TD16036003 Φ7.9 1
18 高压软管组件 High pressure hose TD16036007 Φ6.4 1
19 高压软管组件 High pressure hose TD16019023 Ф6.4 1
20 高压软管组件 High pressure hose TD16019017 Ф6.4 2
21 过渡接头 Transition joints W42000250 S1CM-16-27WD 1
22 接头 Connection fitting Z520520920 10
23 高压软管组件 High pressure hose TD16019015 Ф6.4 2
24 过渡接头 Transition joints W42000274 S1CH9-16-14OGDQ 5
25 过渡接头 Transition joints W42000248 S6C9-16LN 2
26 螺钉 Threaded screw B010420625 GB/T70.1-2000 4
26 垫圈 Washer B060460602 GB/T97.1-2002 4
螺钉 Threaded screw B010410845 GB/T70.1-2000
