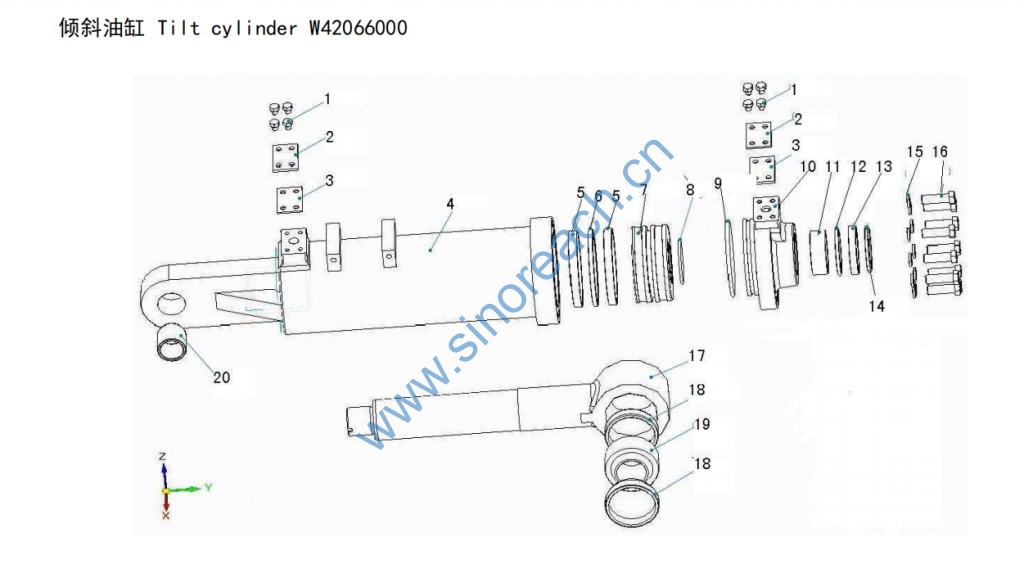

倾斜油缸 Tilt cylinder W42066000

1 螺栓 M1012 BoltM1012 GB/T5781 8
2 油口盖 Oil mouth cover G015 2
3 油口垫 Oil mouth pad G020 2
4 缸体 Cylinder block W42066002 CF(15080/147)F(G/E)01 1 7 活塞 Piston W42066009 HS150080-1A 1 10 缸盖 Cylinder head W42066005 CF(15080/147)F(G/E)-01 1
15 垫圈 16 Washer and B040820161 GB/T93 10
16 螺栓 M16*55 Bolt M16 * 55 B040811655 GB/T5782 10
17 活塞杆 Piston rod W42066006 CF(150*80/147)F(G/E)-02 1
18 挡块 DK09022 Stop DK09022 W42066007 RBS04 2
19 关节轴承 GEG60ES Joint bearing GEG60ES B120516063 GB/T9163 1
20 衬套 CT045-05S-050 BushingCT045-05S-050 W42066001 RBS09 1
倾斜缸密封包 Tilting cylinder seal bag W42066008 1 5,6,8,9,11,12,13,14
