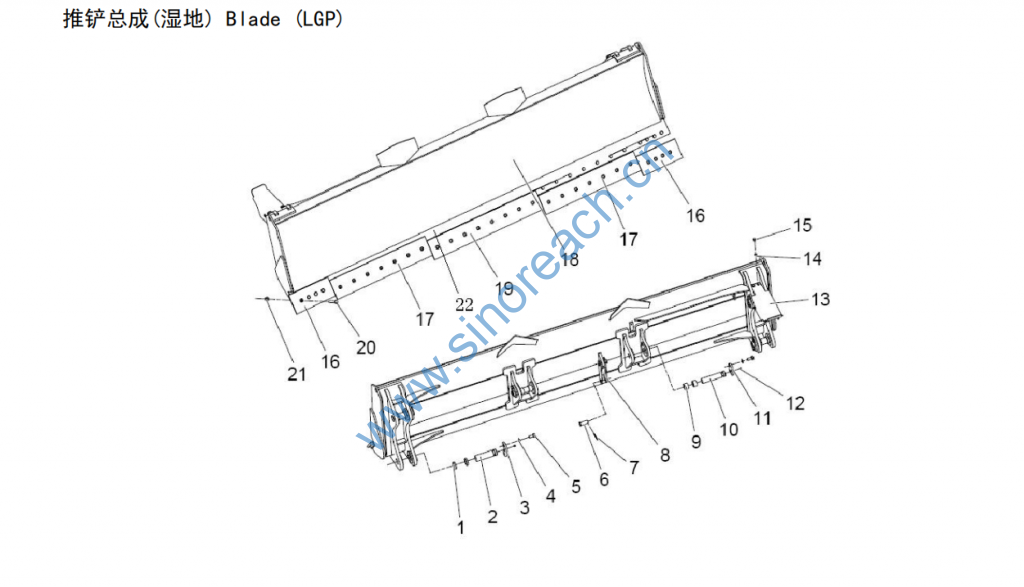

推铲总成(湿地) Blad

1 隔套 Spacer TD16006050 8
2 销轴 Bearing TD16053033 4
3 定轴板 Shaft positioning plate TD16100039 4
4 垫圈 20 Washer 20 B060412003 GB/T97.1-2002 12
5 螺栓 M20×45 Bolt M20×45 B040912045 GB/T5783-2000 12
6 销轴 B30×80 Bearing B080333080 GB882-2008, 2
7 开口销 6×70 Cotter pin 6×70 B080210670 GB/T91-2000 2
8 连杆 Rod TD16006037 1
9 隔套 Spacer TD16053030

10 销轴 Bearing TD16053032 2
11 定轴板 Shaft positioning plate TD16053034 2
12 油杯 M10×1 Oil cup M10×1 B150101000 JB/T7940.1-1995 6
13 侧倾缸护罩 Tilt cylinder cover TD16102014 1
14 垫圈 12-200HV Washer 12-200HV B060331203 GB/T96.1-2002 4
15 螺栓 M12×25 Bolt M12×25 B040911225 GB/T5783-2000 4
16 角刀板 Angle blade plate TD16100034

17 副刃板Ⅱ Sub-cutting edge TD16100033 2
18 推铲组件 Ripper assembly TD16102001 LGP 1
19 副刃板Ⅰ Sub-cutting edge TD16100032 1
20 螺栓 M20×65 Bolt M20×65 B041802065 GB/T21934-2008 30
21 螺母 M20 Nut M20 B051632020 GB/T1229-2006 30
22 主刃板 Cutting edge TD16102016
