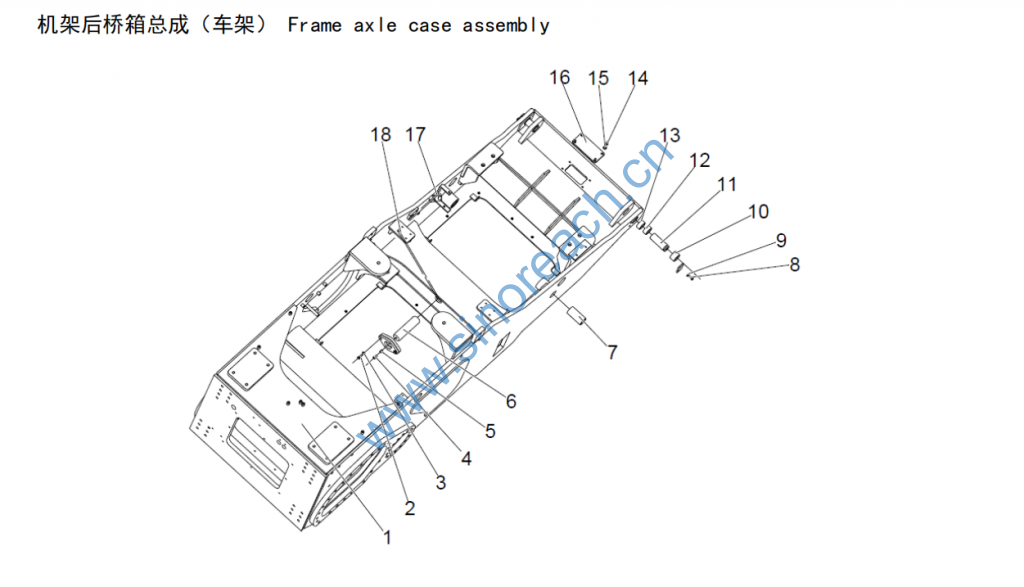

机架后桥箱总成 Frame axle case assembly

rame TD16051001 1
2 螺栓 M16×40-10.9 Bolt B040961640 GB/T5783-2000 2
3 垫圈 16 Washer B060411603 GB/T97.1-2002 2
4 螺栓 M10×1×25 Bolt B041200002 JB999-77 2
5 组合密封垫圈 A10 Combine seal gasket A10 B060811002 JB/T982-1977 4
6 销轴组件 Pin assembly TD16002064 1
7 衬套 Bushing TD16051017 1
8 螺栓 M10×25 Bolt B040911025 GB/T5783-2000 4
9 垫圈 10 Washer B060411002 GB/T97.1-2002 4
10 板Ⅲ Plate TD16051031 2
11 销轴 Pin TD16051030 2
12 衬套Ⅱ Bushing TD16051028 2
13 衬套Ⅰ Bushing TD16051027 2
14 螺栓 M14×30 Bolt B040911430 GB/T5783-2000 4
15 垫圈 14 Washer B060411403 GB/T97.1-2002 4
16 盖板 Cover plate TD16051032 1

17 油杯 Oil cup B150101000 1
18 平衡梁润滑油管组件 Assemble E-Bar TD16002067 1
