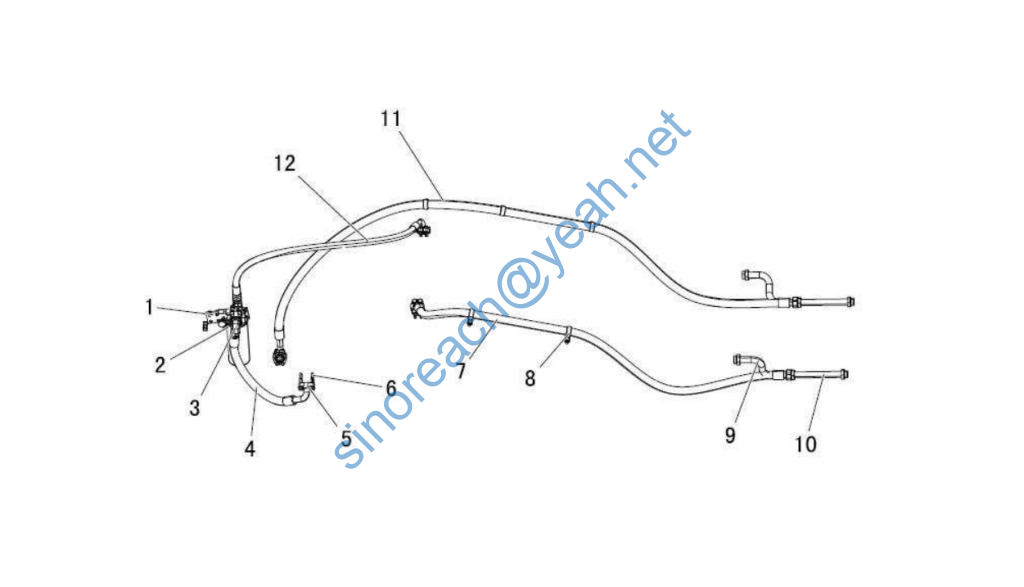

Transmission hydraulic system AS

1 滤油器固定板 Oil filterRetaining plate Z5B225011 Z5B225011 1
1 螺栓 M10×30 BoltM10×30 B040911030 GB/T5783-2000 8
2 过滤器 filter JB326370601 CAT图号:2491750 1
2 过滤器滤芯 filter Filter W42000008 1
3 可调接头 Fitting W154700470 S1C09-36-12OG 2
4 高压软管组件(594) High pressure hose assembly(594) Z5B225007 Z5B225007 1
5 拼合法兰 Split flange Z610200060 ZL60D.20-6 4
6 螺栓 M10×65 Bolt M10×65 B040811065 GB/T5782-2000 8
7 Φ25 高压软管组件(1875)
Φ 25High pressure hose
assembly(1875) Z6B208003 1
8 双管卡 Pipe clamp Z5A04300700 4
8 螺栓 M10×20 BoltM10×20 B040911020 GB/T5783-2000 12
9 硬管组件 Tube assembly Z6B208008 2
9 0 型圈 26×2 O-ring 26×2 B161620260 DIN EN ISO8434-4 2
10 硬管组件 Tube assembly Z6B208005 2
10 O 形圈 30×3.55 O-ring30×3.55 B160130300 GB/T3452.1-2005 2
11 Φ25 高压软管组件(2655)
Φ 25High pressure hose
assembly(2655) Z6B208001 1
12 高压软管组件(990) High pressure hose assembly(990) Z5B225005 Z5B225005 1
0 垫圈 10-300HV Washer10-300HV B060461002 GB/T97.1-2002
