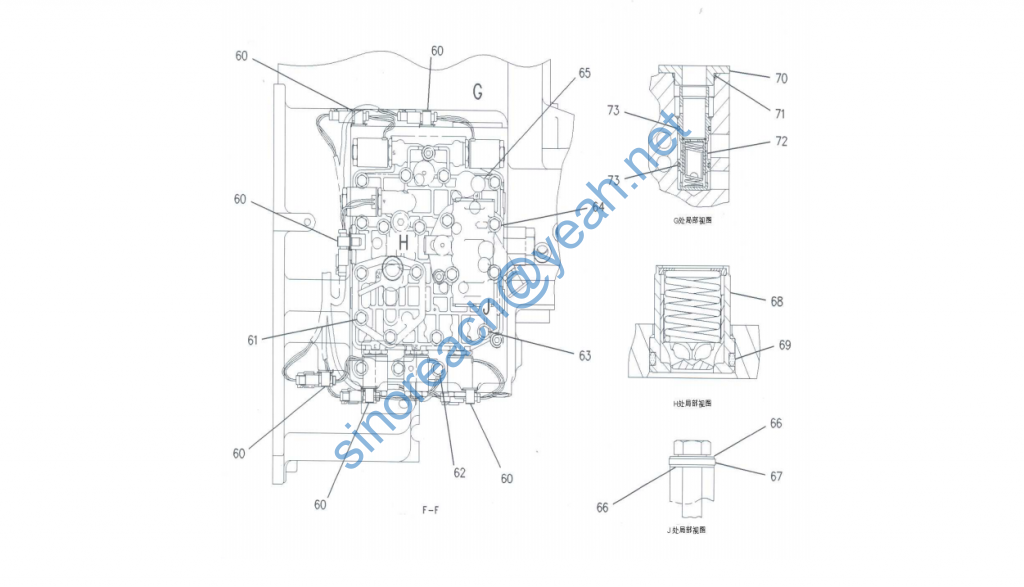

ESM699C 变速箱箱体 Gear box body

1 垫圈 WASH-HARD 13.525.53MM THK JB326236400 10
2 变速箱盖 COVER-TRANSMISSION JB325270103 1
3 O 型密封圈 SEAL-O-RING JB329556101 1
4 O 型圈 SEAL-O-RING B160130375 1
5 堵塞 PLUG JB326374502 1
6 旋转密封圈 SEAL JB329555901 1
7 输出油封 SEAL-LIP JB326078700 1
8 螺栓 BOLT M101.540MM JB326238700 27
9 圆锥滚子轴承 CUP-BEARING JB326297600 1
10 螺栓 BOLT M81.2525MM B040960825 8
11 吸油滤网安装孔盖 COVER JB326066800 1
12 O 型密封圈 SEAL-O-RING JB326301600 1
13 过滤网骨架组件 TUBE AS (MAGNETIC SCREEN) JB326066900 1
14 过滤网组件 SCREEN-SUCTION JB326303702 1
16 滚针轴承 BEARING-ROLLER JB326295700 5
17 螺栓 BOLT M101.580MM B040861080 6
18 呼吸器 BREATHER(PRESSURE RELIEF) JB326305000 1
19 堵塞组件 PLUG-DRAIN JB326374402 1
20 O 型密封圈 SEAL-O-RING B160130280 1
21 圆锥滚子轴承 CUP-BEARING JB326297900 2
22 密封圈 SEAL-RECTANGULAR JB326293800 1

23 短圆柱轴承 BEARING-ROLLER JB326296900 1
24 吸油管组件 TUBE AS JB326066602 1
25 密封圈 SEAL JB326293800 1
26 螺栓 BOLT M101.570MM JB326237801 1
27 螺栓 BOLT M101.530MM JB326237000 5
28 O 型密封圈 SEAL-O-RING JB326301400 1
32 输出轴垫片 SHIM PACK (INCLUDES 19 SHIMS) JB326066500 1
33 螺栓 BOLT M121.7530MM B040961230 10
34 垫片 GASKET JB326301100 1
35 1/3 轴密封盖 COVER JB326301000 1
36 螺栓 BOLT M121.7525MM JB326236800 4
37 O 型密封圈 SEAL-O-RING JB326302200 3
38 堵塞 PLUG JB326374201 3
39 O 型密封圈 SEAL-O-RING JB326300700 1
40 输入轴垫片 SHIM PACK (INCLUDES 24 SHIMS) JB326066400 1
41 轴承座 CAGE-BEARING JB326066700 1
48 隔油板 JB329555600 3
49 螺栓 BOLT(M81.2520MM) JB326238600 3
50 变速箱壳体 CASE AS-TRANSMISSION NJB325270300 1
51 控制阀安装位 Control valve install location 1
52 堵塞 PLUG (13.9MM DIA 2

56 油量计安装孔密封盖 COVER JB326304200 1
59 垫片 GASKET JB326300500 1
60 螺栓 M10 BOLT M10 B040911016 6
线卡 CLIP W46000002 6
61 螺栓 M81.25110 BOLT M81.25110MM JB326238900 4
62 螺栓 M81.2550 BOLT M81.2550MM JB326239100 3
63 螺栓 M81.25100 BOLT M81.25100MM JB326239000 9
64 螺栓 BOLT B040840002 4
65 O 型密封圈 SEAL-O-RING JB326067400 1
66 组合密封垫圈 WASHER(8.25181.84 MM THK) JB326237100 40
67 垫圈 WASHER(8.4191.83MM THK) JB326236900 20
68 安全阀 VALVE-RELIFF JB326373200 1
69 O 型密封圈 SEAL-O-RING JB326301200 1
70 变速阀进油管固定座 PIPE FIXATION JB326298901 1
70 变矩器出油管固定座 PIPE FIXATION JB326299001 1
71 O 型密封圈 SEAL-O-RING JB326302400 1
72 流量控制阀 VALVE GP-FLOW CONTROL JB326371801 1
73 O 型密封圈 SEAL-O-RING JB326067300 2
