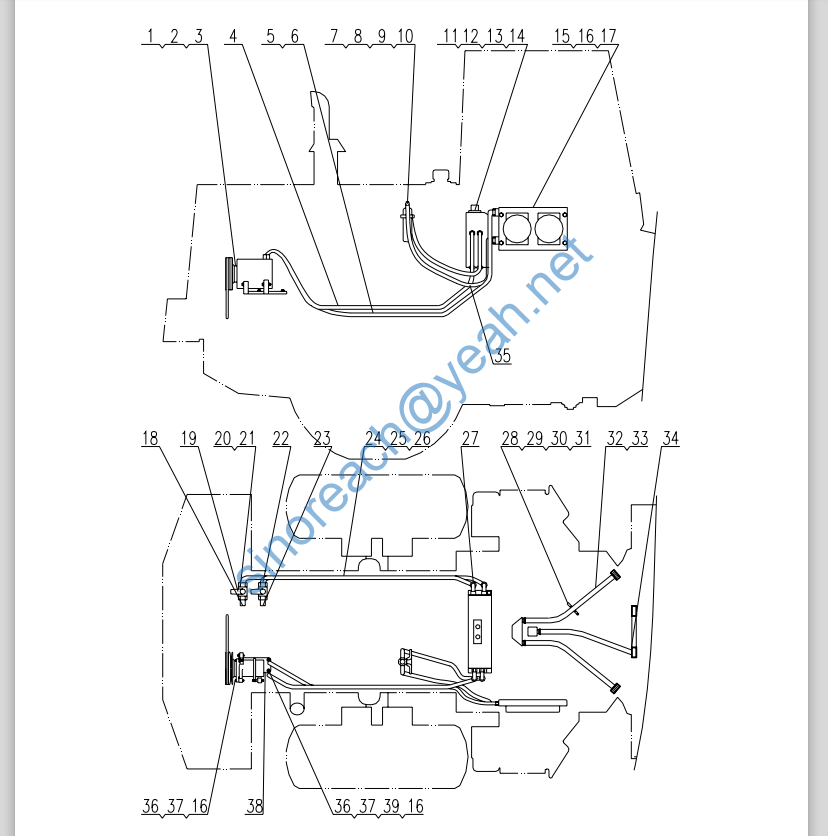

Z50H.21A 空调系统 Air Condition System

1 W-08-00033 1 空调器总成 BKG-08A Air-condition 1
2 1 压缩机 SD5H14 compressor 1
3 1 三角带 17-450 strap 1
4 1 低压软管 Hose 1
5 1 高压软管 Hose 1
6 B-Q020020-00004 1 尼龙箍 90 hoop 8
7 1 储液器总成 oil storage 1
8 B-G057830-00128 1 螺栓 M6X12ZnD Bolt 2
9 B-G000930-00015 1 垫圈 6 Washer 2
10 B-G00097B-00021 1 垫圈 6ZnD Washer 2
11 1 蒸发器总成 evaporator 1
12 B-G00097B-00004 1 垫圈 Washer 4
13 B-G057830-00034 1 螺栓 M12X30ZnD Bolt 4
14 B-G000930-00003 1 垫圈 12 Washer 4
15 1 冷凝器总成 condenser 1
16 B-G00097B-00002 1 垫圈 10ZnD Washer 12
17 B-G057830-00006 1 螺栓 M10X25ZnD Bolt 4
18 Z50H.21A-2 1 接头 tie-in 1
19 W-15-00051 1 球阀 1/2″Q11F-16T Ball valve 2
20 Z30.20.4 1 接管 take-over 2
21 B-Q020710-00021 1 O 形圈 16×2.4 O-ring 2
22 Z50B.21-5 1 接头 tie-in 2
23 Z50H.21A-1 1 接头 tie-in 1
24 Z50B.21-1 1 进水管Ф16×1800 pipeline 1
25 Z50B.21-2 1 出水管Ф16×3000 pipeline 1
26 B-J088700-00012 1 喉箍d25 Clamp 4
27 Z30.16.4-16 1 出线圈 36 Outlet loop 2
28 Z50E.21F-1 1 支撑 Support 5
29 B-G057830-00137 1 螺栓 M8X16ZnD Bolt 10
30 B-G000930-00017 1 垫圈 8 Washer 10
31 B-G00097B-00023 1 垫圈 8ZnD Washer 10
32 1 风管组件 pipeline 1 套
33 B-J088700-00017 1 喉箍 d60 Clamp 22
34 Z40E.21F-1 1 三通 tube 1
35 1 高压软管 Hose 2
36 B-G057830-00012 1 螺栓 M10X35ZnD Bolt 8
37 B-G000930-00001 1 垫圈 10 Washer 8
38 Z50B.21C.1 1 压缩机支架 bracket 1
