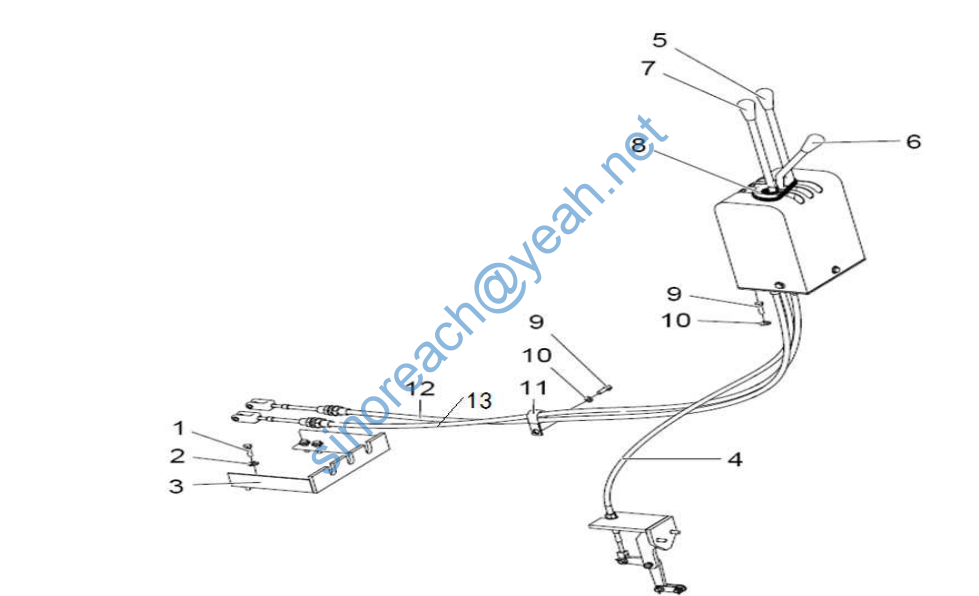

工作操纵机构总成 PILOT CONTROL

1 螺栓 M12×20 Bolt M12×20 B040911220 GB/T5783-2000 4
2 垫圈 12 Washer 12 B060411203 GB/T97.1-2002 4
3 软轴支架组件 Hose bracket assembly Z5B05400100 1
4 高低速操纵软轴 H/L speed control mechanisim cable W48007010 LJ135K-SG-1500 1
5 举升操纵杆 Lift control rod W48007040 1
6 高低速操纵杆 H/L speed control lever W48007020 1
7 翻斗操纵杆 Tilt bucket control lever W48007030 1
8 工作阀高低速操纵机构防 尘罩(652B) Implement valve H/L speed control mechanisim dust boot (652B) W48006010 1
9 螺栓 M10×25 Bolt M10×25 B040911025 GB/T5783-2000 5
10 垫圈 10 Washer 10 B060411002 GB/T97.1-2002 5
11 管卡 Pipe clamp Z5A20400500 1
12 举升操纵软轴 Lifting control cable W48007050 LJ135K-SG-2000 2
13 翻斗操纵软轴 Tripping control cable W48007060 LJ135K-SG-2000
工作阀高低速操纵软轴组
件(两联)
Implement valve H/L speed
control mechanisim cable
(two unite)
W48006000
