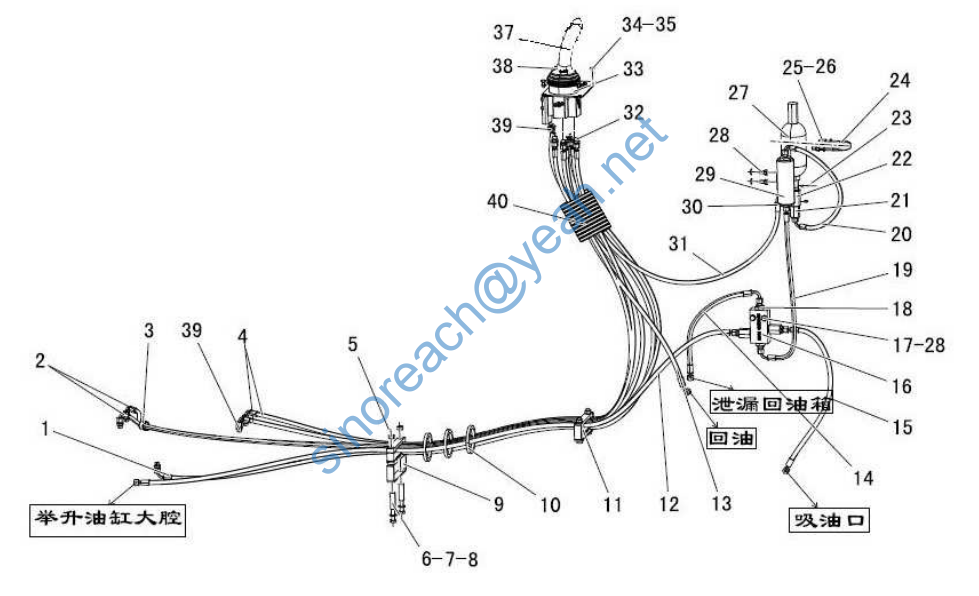

先导液压系统 PILOT HYDRAULIC SYSTEM

1 先导油管组件 3180 pilot oil pipe assembly Z5B031013 1
2 先导油管组件 3280 pilot oil pipe assembly Z5B031005 2
3 管卡 Φ19 tube clip Z5A01701900 1
4 先导油管组件 2810 pilot oil pipe assembly Z5B031011 2
5 螺母 M12 Nut B050331211 GB/T6170-2000 4
6 螺栓 M12×85 Bolt B040811285 GB/T5782-2000 4
7 垫圈 12-300HV Gasket B060461203 GB/T97.1-2002 4
8 隔套 Stell ring Z520520810 4
9 支架 support Q235-A Z520520800 2
10 扎带 ZD200×8 clip W110001370 3
11 先导管固定卡 pilot pipe fixed clip Z5B20000600 2
12 先导油管组件 2610 pilot oil pipe assembly Z5B031007 1
13 先导油管组件 1160 pilot oil pipe assembly Z5B031009 1
14 先导油管组件 5/16-505 pilot oil pipe assembly Z5B03100300 1
15 先导油管组件 1/4-676 pilot oil pipe assembly Z5B03100100 1
16 压力选择阀 SF8 pression switch W272400000B 1
17 螺栓 M10×55 Bolt B040811055 GB/T5782-2000 2
18 接头 connection joint Z520520920 2
19 先导油管组件 760 pilot oil pipe assembly Z5B031017 1
20 先导油管 L=600 pilot oil pipe Z5A20000100 1
21 单向阀 check valve W272400010B 1
22 三通接头组件 tee adapter component Z5B031019 1
23 O 形圈 26.5×2.65 O ring B160120265 GB/T3452.1-2005 1

24 U 形螺栓 U bolt 45 Z520520930 1
25 锁紧螺母 M10×1.25 nylon lock nut B500151013 GB/T889.2-2000 2
26 垫圈 10-300HV Gasket B060461002 GB/T97.1-2002 6
27
先 导 蓄 能 器 NXQ △ –
L0.63/※-H pilot accumulator W110021000 1
28 螺栓 M10×20 Bolt B040911020 GB/T5783-2000 2
29 压力过滤器 YL-161-00
pressure filter (pilot
valve) W110015500A 1
29 滤芯 YL-161-100 filter W110015510A #N/A 1
30 测压接头 TC-D10 adapter W152200000 1
31 先导油管组件 1540 pilot oil pipe assembly Z5B031015 1
32 接头 connection joint Z3A20004500 4
33 先导阀 321-8705,2JS pilot valave W272600000B 1
34 螺栓 M8×20 Bolt B040910820 GB/T5783-2000 4
33 普林斯吸盘修理包 Repair package W42099100 12-00821 1
35 垫圈 8 Gasket B060410802 GB/T97.1-2002 4
37 手柄组件 DXS-01-00S handle knob W42133000 1
37 普林斯吸盘修理包 W42099100 12-00821 1
38 螺母 M12 Nut B050331211 GB/T6170-2000 1
39 接头 connection joint Z3A20001600 3
40 胶管保护套 内径Φ35 hose bush Z5A052008 1
