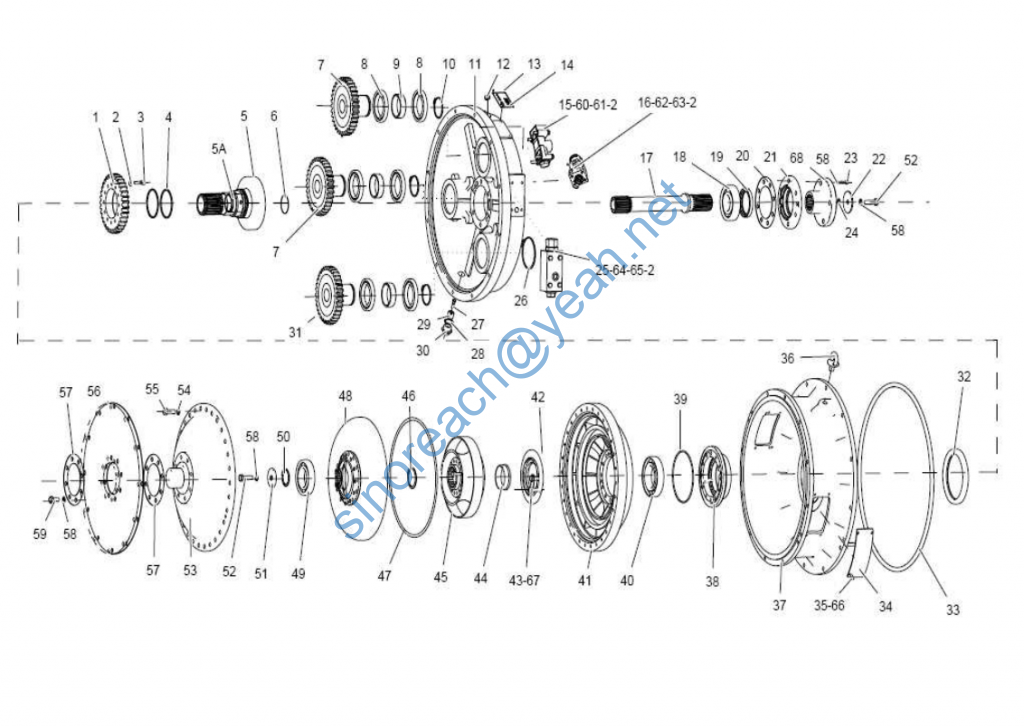

TORQUE CONVERTER ASSEMBLY

1 主动齿轮 Drive gear W020400311 1
2 垫圈 8 Washer 8 B060110802 26
3 螺钉 M8×25 Threaded screw M8×25 B010410825 12
4 密封环 90 Ring seal 90 W020400741 2
5 导轮座 Stator hub W020400051 1
6 密封环 60 Ring seal 60 W020200331 1
7 输出齿轮(工作泵) Output gear (implement pump) W021700010B （14T-12/24） 1
8 轴承 113 Bearing 113 B120116518 6
9 定位套 Setting sleeve W020400231 3
10 挡圈 65 Retainer 65 B070256503 4
11 齿轮箱 Gearbox W020400121 1
12 透气塞 VENT PLUG 1
13 铆钉 Rivet 4
14 名牌标签 Nameplate 1
15 压力阀 PRESSURE VALVE W020400151 1
16 溢流阀 RELIEF VALVE W020400171 1
17 涡轮轴 Turbine shaft W020400301 1
18 轴承 310 Bearing 310 B120135027 1
19 油封 SG70×90×12 Oil seal SG70×90×12 B160240002 1
20 纸垫 Paper gasket 1
21 压盖 Gland W0204

22 挡板 Baffle B060111203 1
23 螺栓 M12×70 Bolt M12×70 B040811270 6
24 纸垫 Paper gasket 1
25 出口压力阀 Outlet pressure valve W020400161 1
26 挡圈 100 Retainer 100 B070150002 3
27 螺栓 M6×30 Bolt M6×30 B040910630 1
28 垫圈 27 Washer27 B060902702 1
29 磁环 Magnetic ring W020400710 1
30 放油塞 Drain plug 1
31 输出齿轮（单键） Output gear W020400211 1
32 油封 PG140×170×16 Oil seal PG140×170×16 B160210010 1
33 O 形密封圈 549.3×3.5 O-ring 549.3×3.5 B160135493 1
34 盖板 Cover plate 1
35 螺栓 M6×12 Bolt M6×12 B040910612 8
36 吊环螺钉 M16 Eye bolt M16 1
37 中节 Case W020400131 1
38 泵轮毂 Impeller hub W020400061 1
39 O 形密封圈 165×3.1 O-ring 165×3.1 W110012650 1
40 轴承 3056214 Bearing 3056214 B121327040 1
41 泵轮 Converter impeller W020400101 1
42 挡板 Ba

43 双联垫片 Double spacer W020400431 6
44 定位套 Setting sleeve W020400281 1
45 导轮 Converter stator W020400091 1
46 挡圈 50 Retainer 50 B070255002 1
47 O 形密封圈 399×3.1 O-ring 399×3.1 W110012140 1
48 涡轮 Converter turbine W020400111 1
49 轴承 212 Bearing 212 B120126022 1
50 挡圈 60 Retainer 60 B070256002 1
51 挡板 Baffle 1
52 螺栓 M12×40 Bolt M12×40 B040961240 2
53 泵轮罩 Impeller shell W020400081 1
54 垫圈 Washer B060111003 30
55 螺栓 M10×40 Bolt M10×40 B040811040 30
56 弹性板 Elastic plate W020400141 2
57 垫板 Backer plate W020400341 1
58 垫圈 12 Washer 12 B060111203 38
59 螺栓 M12×25-10.9 Bolt M12×25-10.9 B040961225 8
60 纸垫 Paper gasket W020400911 1
61 螺栓 M8×60 Bolt M8×60 B040610860 4
62 纸垫 Paper gasket W020400921 1
63 螺栓 M8×65 Bolt M8×65 B040610860 4
64 纸垫 Paper gasket W020400811 1
65 螺栓 M8×60 Bolt M8×60 B040610860 4
66 垫圈 6 Washer 6 B060110602 8
67 螺栓 M10×32-10.9 Bolt M10×32-10.9 B040961030 12
68 连接盘 Joint plate W020400261 1
变矩器 YJ375 Torque converter YJ375 W0218
