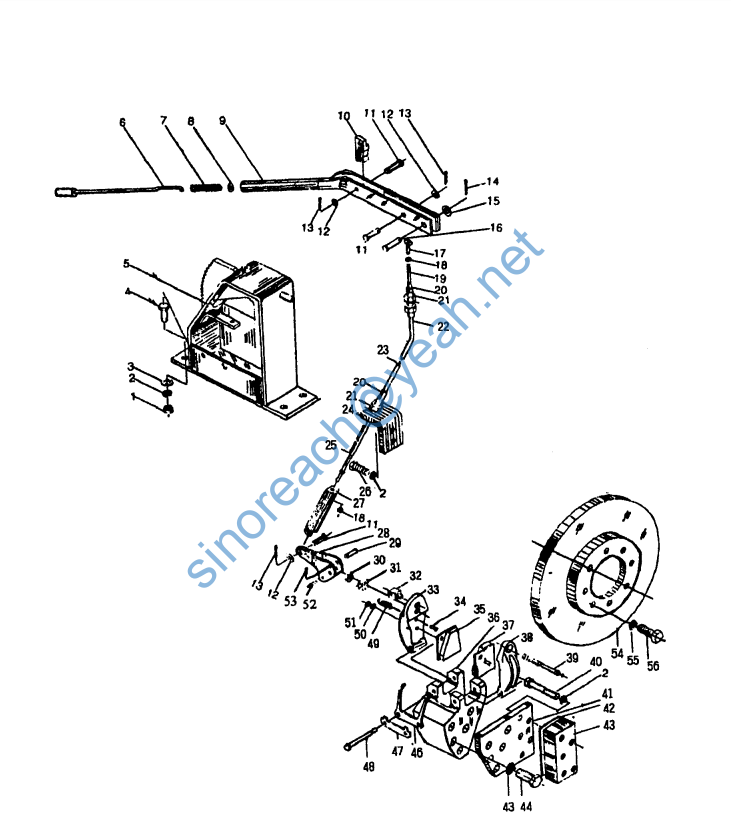

Z50B.11   手制动器   Parking  Brake

1 B-G061700-00007 “螺母 M12 ZnD Nut”
2 B-G000930-00003 “垫圈 12 YH Washer”
3 B-G00097B-00004 “垫圈 12 ZnD Washer”
4 B-G057830-00030 “螺栓 M12×25 ZnD Bolt”
5 Z50B.11.2 “支架 Support”
6 Z30.11B.3.1 “钩杆 Hook bar”
7 Z30.11B.3-1 “弹簧 Spring”
8 Z30.11B.3-2 “垫片 Gasket”
9 Z30.11B.3.2 “组合杆 Combined rod”
10 Z30.11B.3-3 “撑牙块 Chunk”
11 Z30.11B-8 “销轴 Shaft”
12 B-G00097B-00002 “垫圈 10 ZnD Washer”
13 B-G000910-00027 “销 3.2×20ZnD Pin”
14 B-G000910-00030 “销 3.2×24ZnD Pin”
15 B-G00097B-00004 “垫圈 12 ZnD Washer”
16 Z30.11B.3-5 “销轴 Shaft”
17 Z50B.11.1-7 “接头 Joint”
18 B-G061700-00034 “螺母 M6 ZnD Nut”
19 Z50B.11.1-1 “螺纹接杆 Bolt connect rod”
20 Z50B.11.1-2 “接套 Nipple”
21 B-G061720-00003 “螺母 M14 ZnD Nut”
22 Z50B.11.1-4 “护管 Guard tube”
23 Z50B.11.1-6 钢丝绳 φ3.5（1×37）Core wire
24 Z50B.11-3 “软轴支架 Flexible shaft support”
25 Z50B.11.1-5 “护罩 Cleaving”
26 B-G057810-00020 “螺栓 M12×30 ZnD Bolt”
27 Z50B.11-5 “叉 Fork”
28 Z30.11B.2.3 “制动曲柄 Brake crank”
29 Z30.11B.2-4 “销轴 Shaft”
30 B-G061840-00001 “螺母 M10 Nut”

31 Z30.11B.2.3-1 “支座 Pedestal”
32 Z30.11B.2-10 “支座 Pedestal”
33 Z30.11B.2-2 “主夹钳 Main clamp”
34 Z30.11B.2-6 “弹簧拉销 Spring pin”
35 Z50B.11.3.2 “主磨擦块 Main friction block”
36 Z50B.11-7 “支座 Pedestal”
37 Z50B.11.3.1 “副磨擦片 Second friction plate”
38 Z30.11B.2-1 “副夹钳 Second clamp”
39 Z30.11B.2-9 “拉杆螺栓 Linkage bolt”
40 B-G057830-00050 “螺栓 M12×65 ZnD Bolt”
41 Z50B.11-1 “夹钳支架 Clamp support”
42 Z50B.11-6 “调整垫片 Adjusting gasket”
43 Z50B.11-2 “垫块 Packing block”
44 B-G057820-00173 “螺栓 M14×40-10.9 ZnD Bolt”
45 B-Q020490-00004 “垫圈 14 Washer”
46 Z30.11B.2-3 “复位弹簧 Retraction spring”
47 Z30.11B.2-7 “止动垫 Stop gasket”
48 Z30.11B.2-8 “螺栓 Bolt”
90 Z30.11B.2-5 “拉簧 Tension spring”
50 B-G00861A-00001 “垫圈 5 Washer”
51 B-G061700-00031 “螺母 M5 Nut”
52 B-G001190-00013 “销 4×22 Pin”
53 B-G000910-00002 “开口销 1.6×10 Cotter pin”
54 Z50B.11-4 “制动盘 Brake disc”
55 B-G000930-00006 “垫圈 16 Washer”
