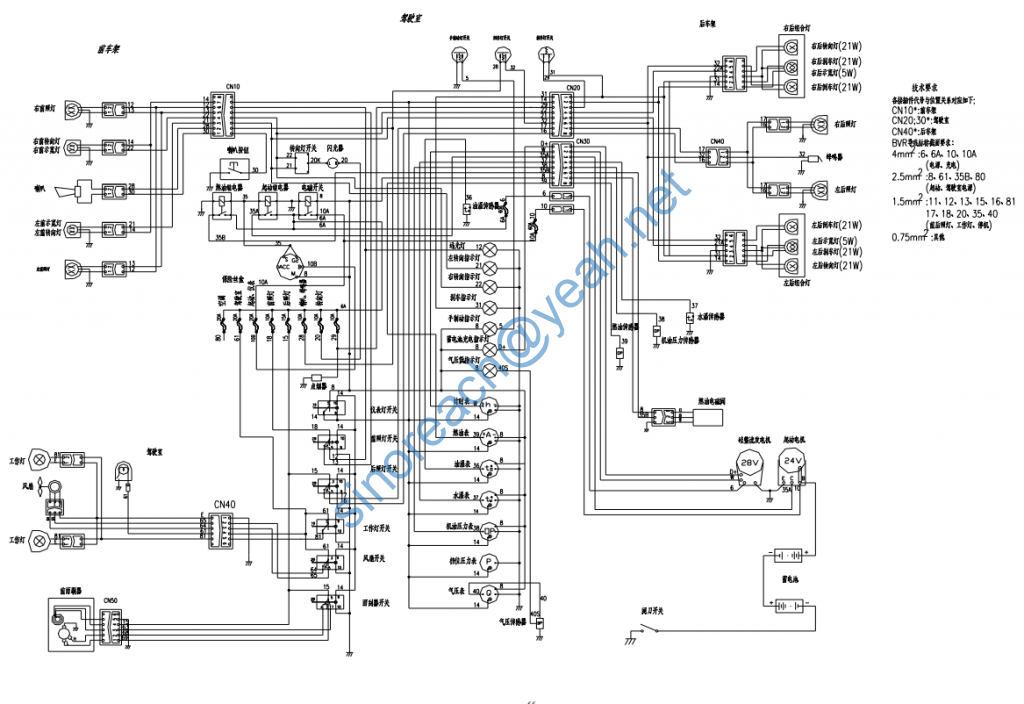

955L.18 电气系统 Electrical System

1 W-06-00148 1 蓄电池|115E41R Battery 2 955L0005-
2 W-06-00154 1 闪光器|SG224C Flash relay 1
955L0005-
3 W-11-00104 1 电源开关|K01K18-A Knife switch 1
955L0005-
4 W-06-00348 1 工作计时表|52 Service gauge 1
955L0005-
5 W-06-00053 1 喇叭|DL229G Horn 1
955L0005-
6 W-06-00302 1 气压传感器|YG901C2 Air pressure sensor 1
955L0005-
7 W-06-00303 1 机油压力传感器|YG901C Engine oil pressure sensor 1
955L0005-
8 W-06-00301 1 温度传感器|WDG1371 Temperature sensor 2
955L0005-
9 W-06-00297 1 气压表|YY242 型-2L Air pressure gauge 1
955L0005-
10 W-06-00300 1 电流表|DL922 型-2A Current gauge 1
955L0005-
11 W-06-00295 1 水温表|SW242 型-2A Water temperature gauge 1
955L0005-
12 W-06-00296 1 油温表|YW242 型-2B Oil temperature gauge` 1
955L0005-
13 W-06-00299 1 机油压力表|YY242 型-2K Oil pressure gauge 1
955L0005-
14 W-06-00298 1 档位压力表|YY04 型-04C Clutch pressure gauge 1
955L0005-
15 W-06-00348 1 工作计时表|52 Service gauge 1
955L0005-
16 W-05-00079 1 左前组合大灯|QD230X110（L） Left front lamp 1
955L0005-
17 W-05-00097 1 后照灯|ND-134-5 Rear lamp 2
955L0005-
18 W-05-00086 1 后组合灯总成|XHYJKJ24-202 Rear group lamp 2 955L0005-
19 W-09-00117 1 雨刷器|ZD2330C/Z40H Wiper 1 955L0005-
20 W-09-00001 1 风扇|756720C Fan 1 955L0005-
21 W-05-00009 1 工作灯|201 Working lamp 2 955L0005-
22 W-05-00066 1 顶灯|0810112410 Tip lamp 1 955L0005-
23 W-11-00010 1 开关|JK931 Switch 1 955L0005-
24 W-06-00310 1 继电器|MZJ100A/006 Relay 1 955L0005-
25 W-05-00080 1 右前组合大灯|QD230X110（R） Right front lamp 1 955L0005-
26 W-06-00039 1 蜂鸣器|DF204 Buzzer 1
955L0005-
27 W-06-00467 1 燃油传感器|RG2266 型-M7 Oil location meter 1 955L0005-
28 W-06-00407 1 压力表联接管|ZL2-208F-5 Pipe 1 955L0005-
29 W-12-00143 1 自粘式吸盘|TM30 Acetabulu 6 955L0005-
30 W-06-00298 1 档位压力表|YY04 型-04C Clutch pressure gauge 1 955L0005-
31 W-05-00086 1 后组合灯|XHYJKJ24-202 Rear group lamp 2 955L0005-
32 W-06-00466 1 组合仪表|ZJB2010-01/955L Portfolio Instruments 1 955L0005-
38
39
40
41
W-06-00467 燃油传感器|RG2266 型-M7
W-06-00407 压力表联接管|ZL2-208F-5
