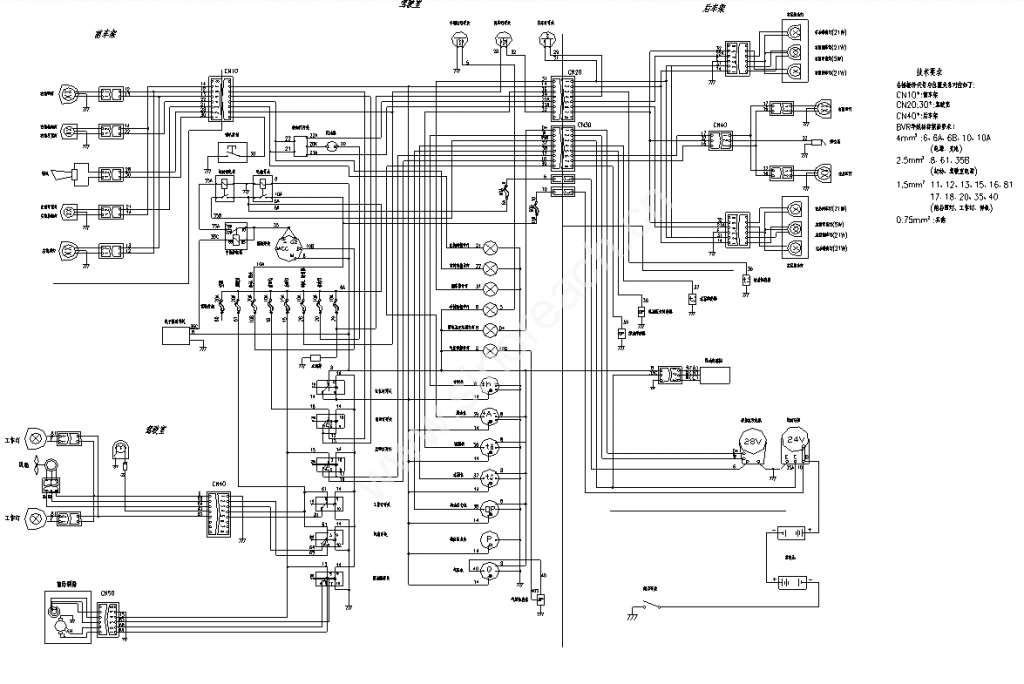

936.18   电气系统    Electrical System

1 W-06-00148 1 蓄电池|115E41R Battery
2 W-05-00080 1 右前组合大灯|QD230X110（R） Front headlamps
3 W-11-00104 1 电源开关|K01K18-A Knife switch
4 W-06-00053 1 喇叭|DL229G Horn
5 W-05-00079 1 左前组合大灯|QD230X110（L） Left headlight
6 W-06-00391 1 组合仪表|ZJB2009-01/936 Portfolio Instruments
7 W-12-00143 1 自粘式吸盘|TM30 Acetabulu
8 W-11-00010 1 开关|JK931 Switch
9 W-05-00028 1 照灯|202 Working lamp
10 W-05-00086 1 后组合灯|XHYJKJ24-202 Rear group lamp
11 W-09-00117 1 雨刷器|ZD2330C/Z40H Wiper
12 W-09-00003 1 风扇|ZDS-110R Fan
13 W-05-00009 1 工作灯|201 Working lamp
14 W-05-00066 1 顶灯|0814112410 Tip lamp
15 W-06-00039 1 蜂鸣器|DF204 Buzzer
16 W-06-00320 1 工簧片DT622-T-6.3B Public reed
17 W-06-00302 1 气压传感器|YG901C2 Pressure Sensor
18 W-06-00301 1 温度传感器|WDG1371 Temperature Sensor
19 W-06-00377 1 机油压力传感器|YG901C3 Oil Pressure Sensor
20 W-06-00417 1 燃油表|RY242型-2A Fuel Table
21 W-06-00348 1 工作计时表|52 Working Chronograph
22 W-06-00297 1 气压表|YY242型-2L Barometer
23 W-06-00298 1 档位压力表|YY04型-04C Stall pressure gauge
24 W-06-00299 1 机油压力表|YY242型-2K Oil Pressure Gauge
25 W-06-00296 1 油温表|YW242型-2B Oil Temperature Table
26 W-06-00295 1 水温表|SW242型-2A Water Temperature
27 W-06-00416 1 仪表油管|Z12-208F-5 Instrumentation Tubing
28 W-06-00420 1 燃油传感器|RG2266型-M12 Fuel Sensor
29 W-11-00147 1 电子接近开关|LJG2A-4/Z2CN2 ectronic Proximity Switches
