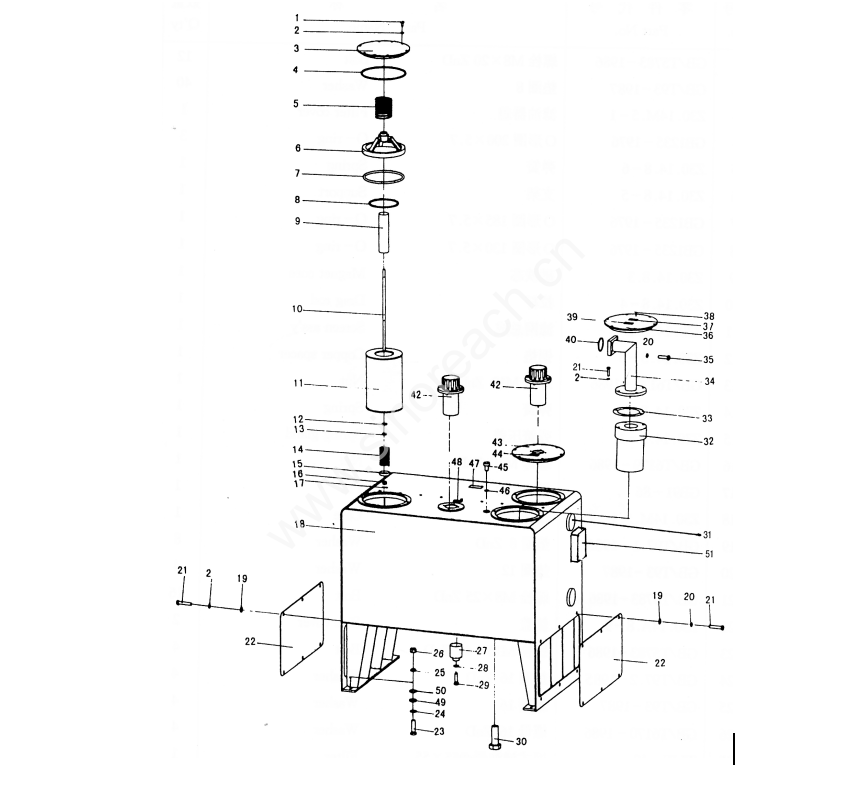

936.14.1  油   箱  Tank

1 B-G057830-00139 1 螺栓 M8×20 ZnD Bolt
2 B-G000930-00017 1 垫圈 8 Washer
3 Z30.14M.5-1 1 滤油器盖 Filter cover
4 B-Q020710-00030 1 O形圈 200×5.7 O-ring
5 Z30.14.8-6 1 弹簧 Spring
6 Z30.14.8-5 1 支架 Support
7 B-Q020710-00027 1 O形圈 185×5.7 O-ring
8 B-Q020710-00014 1 O形圈 130×5.7 O-ring
9 Z30.14.8.3 1 磁铁芯 Magnet core
10 Z30.14.8-4 1 拉杆 Drag rod
11 Z30.14.8.2 1 滤网总成 Screen ass’y
12 Z30.14.8-3 1 铜垫 Copper spacer
13 B-G061720-00002 1 螺母 M12 ZnD Nut
14 Z30.14.8-2 1 弹簧 Spring
15 Z30.14.8-1 1 弹簧压盖 Spring gland
16 B-G061790-00001 1 螺母 M10 ZnD Nut
17 B-G000910-00020 1 销 2×20 Pin
18 936.14.1.1 1 箱体 Case
19 B-G00097A-00012 1 垫圈 8 ZnD Washer
20 B-G000930-00003 1 垫圈 12 Washer
21 B-G057830-00143 1 螺栓 M8×25 ZnD Bolt
22 Z30.14A.8-9 1 侧盖 Side cover
23 B-G057830-00076 1 螺栓 M16×45 ZnD Bolt
24 B-G00097B-00008 1 垫圈 16 ZnD Washer
25 B-G000930-00006 1 垫圈 16 Washer
26 B-G061700-00014 1 螺母 16 ZnD Washer
27 W-15-00053 1 网式滤油器 φ55×55 Filter
28 B-J009820-00002 1 垫圈 14 Washer
29 B-J009990-00001 1 螺栓 M14×1.5×32 Bolt
30 Z30E.14.27-3 1 螺塞 Plug
31 Z30.14A.8.7 1 油标 Oil lever
32 W-15-00043 1 进油滤油器 Filter
33 Z30E.14.27-2 1 纸垫 Pad
34 Z30E.14.27.2 1 油管 Oil pipe
35 B-G057830-00032 1 螺栓 M12×30-6.8 YH Bolt
36 Z30E.14.27-1 压盖 Gland
37 Z30.14.8-19 标牌 Name plate
38 B-G008270-00006 铆钉 2×8 Screw
39 Z30.14.8-20 标牌 Name plate
40 B-Q020710-00085 O形圈 60×3.1 O-ring
42 W-15-00065 液压空气滤清器 Air cleaner
43 Z30.14A.8-8 盖 Cover
44 Z30.14A.8-27 标牌 Name plate

45 Z30.14.8-18 螺塞 Plug
46 B-Q020710-00023 O形圈 16×2.4 O-ring
47 Z30.14A.8-12 标牌 Name plate
48 Z30.14.8-21 1 标牌 Name plate
49 Z30.14A.8-25 1 调整垫片 Washer

50 Z30.14A.8-26 1 调整垫片 Washer
51 W-15-00168 1 液位计总成 Level gauge
