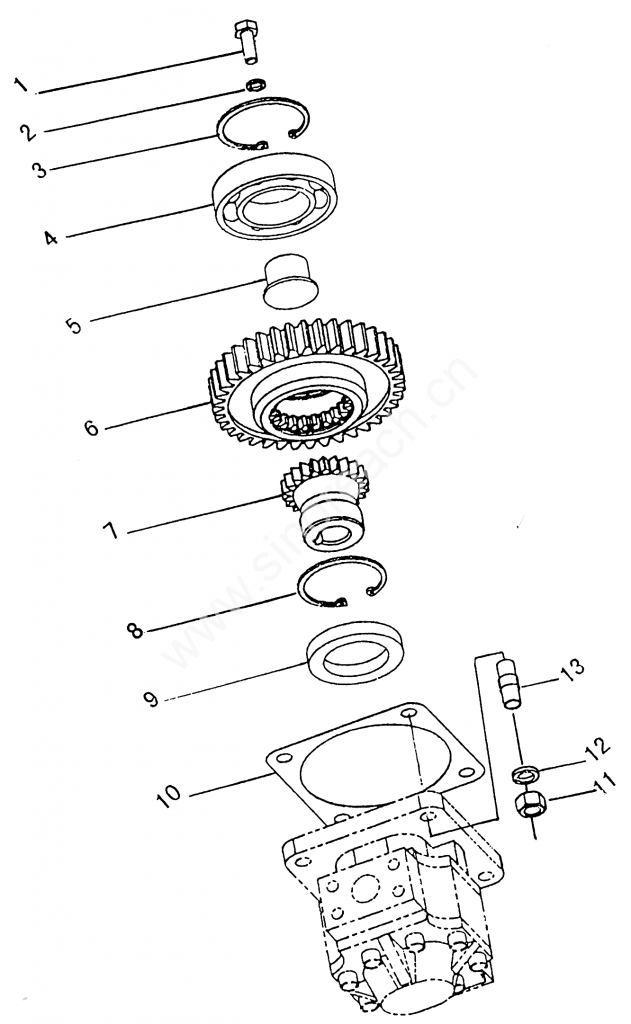

936.2.2  液力变矩器（四）  Torque Converter(4)

1 B-G057860-00002 1 螺栓 M10×1×28 Bolt
2 B-G000930-00001 1 垫圈 10 Spring washer
3 B-G00893A-00013 1 挡圈 72 Snap ring
4 B-G002760-00015 1 滚动轴承 6207 Bearing
5 Z30.2.3-4 1 芯轴 Shaft
6 Z30.2.3-43L 1 齿轮 Gear
7 936.2.2-3 1 联接套 Connecting sleeve
8 B-G00893A-00012 1 挡圈 70 Snap ring
9 B-G09877A-00024 1 油封 FB50×80×12B Oil seal
10 936.2.2-5 1 密封垫 Gasket
11 B-G061700-00007 1 螺母 M12 ZnD Nut
12 B-G000930-00003 1 垫圈 12 Spring washer
13 B-G009010-00008 1 螺柱 M12×55 Stud
B-G009010-00009 1 螺柱 M12×50 Stud
