Description

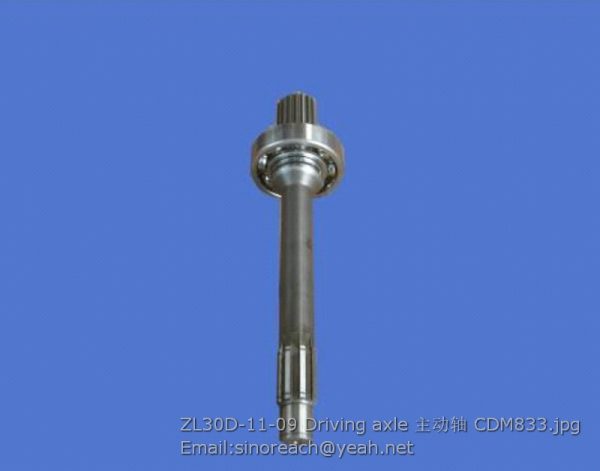

ZL30D-11-09 Driving axle for LONKING CDM833 Spare parts

LG855.01704-704A 扶手总成 Arm rail assembly
GB/T93 垫圈 16 Washer 16
GB/T97.1 垫圈 16 Washer 16
GB/T5783 螺栓 M16×20 Bolt M16×20
LG855.07501-501A 机油箱体 Hydraulic oil tank body
LG50G.07524-525B 侧面扶手 Side arm rail
YB-M42×1.5 圆形油标 Dip stick
507529C 销轴 Pin
GB/T91 开口销Ф4×40 Cotter pin Ф4×40
GB/T5783 螺栓 M10×25 Bolt M10×25
507526C-Ⅱ 堵头 Plug
507527-527-Ⅱ 放油盖 Drain cover
407505B 垫片 Washer
LG50G.07528A 磁铁Ф80×40 Magnet Ф80×40
507523C 垫片 Washer
507512-513C 吸油口 Suction port
GB/T93 垫圈 10 Washer 10
GB/T5783 螺栓 M10×25 Bolt M10×25
GB/T5783 螺栓 M16×40 Bolt M16×40
507521-523C 回油法兰 Oil return flange
LG50F-1000×120-H 回油滤清器 Oil return filter
GB/T5783 螺栓 M8×20 Bolt M8×20
QL-10C 空气滤清器 Air cleaner
507525-528C 垫片 Washer
507524C 法兰盖 Flange cover

GB/T5783 螺栓M8×20 Bolt M8×20
GB/T95 垫圈 8 Washer 8
GB/T93 垫圈 8 Washer 8
LG50F-1000×120-J 吸油滤清器 Oil suction filter

GB/T91 开口销 Cotter pin
O型圈 O-ring
活塞 Piston
D180×20×2.5 支承环 Supporting ring
HJD180 格来圈 Glyd Ring
槽形螺母 Castle nut
缸体 Cylinder body
GB/T893.1 弹性挡圈Ф75 Elastic collarФ75
GB/T9163 关节轴承GE70ES Joint bearing GE70ES
GB/T1235-76 O型圈 Ф180×5.7 O-RINGФ180×5.7
导向套 Guide sleeve
GB/T93 垫圈 16 Washer 16
GB/T5783 螺栓 M16×50 Bolt M16×50
HJY100 支承环 Supporting ring
HJZ100 组合密封圈 Step seal
Y型密封圈 Y-ring
防尘圈 Dust ring
活塞杆 Piston rod
GB/T91 螺钉 M8×35 Screw M8×35
双耳环 Eyes
