Description

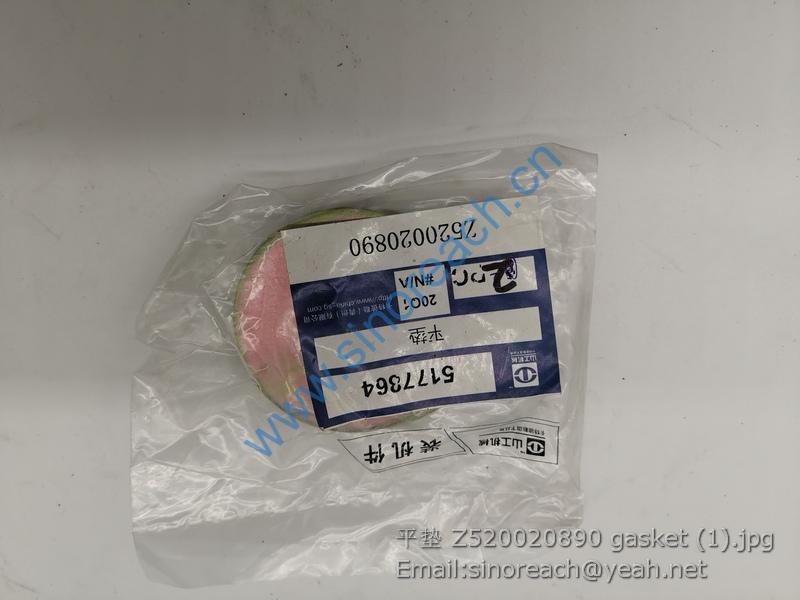

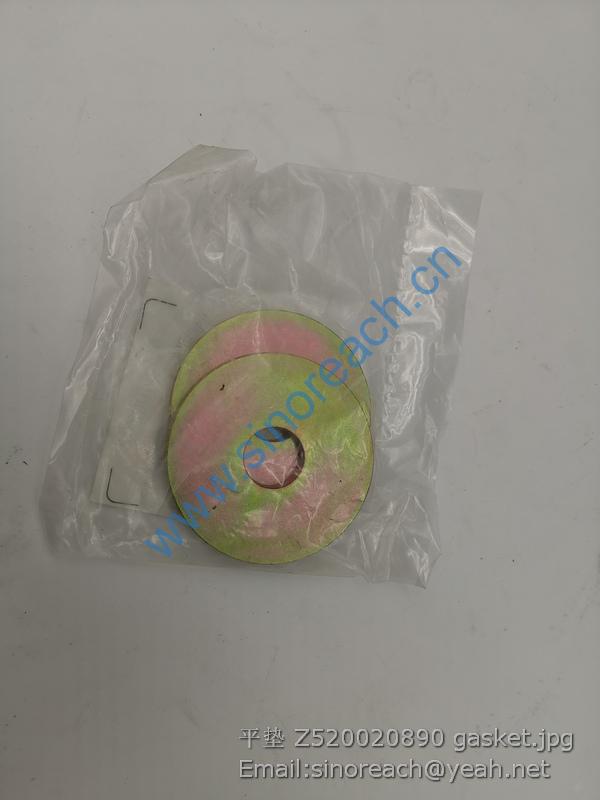

Z520020890 Washer

1
Front frame AS MG22002100 1
2
Limited Block Z520020870 4
3
Washer12 B060411203 GB/T97.1-2002 20
4
Bolt M10×130M12×50
B040811250 GB/T5782-2000 6
5
Bolt M10×130M16×80
B040811680 GB/T5782-2000 4
6
Washer16 B060411603 GB/T97.1-2002 4
7
Pin Plate Z520031230 1
8
Adjusting Spacer Ⅲ
Z640030090 2
9
下 Bearing cover
MG19002140 1
10
Bearing33216X2 B120408035 2
11
Seal RingB95 120 12 B160410003 GB9877.1-88 2
12
UP Sleeve Z620030370 1
13
UP Sleeve MG19002139 1
14
Adjusting Spacer t0.1 Z520021110 10
15
Adjusting Spacer t0.5 Z520021120 6
16
上 Bearing cover
Z520021130 1
17
Bolt M10×130M12×140
B040810047 GB/T5782-2000 8
18
Pin MG19002147 1

19
Bearing cover Z620020070 ZL60F.2-7 1
20
BearingGE80ES B120528055 GB304.5-81 1
21
Adjusting Spacer δ0.3
Z620020030 ZL60F.2-3 1
22
Adjusting Spacer δ0.5
Z620020100 ZL60F.2-10 1
23
Adjusting Spacer δ0.7
Z620020110 ZL60F.2-11 1
24
Lock Pin AS MG19002201 1
25
Bearing cover Z620020050 ZL60F.2-5 1
26
Bolt M10×130M12×80
B040911280 GB/T5783-2000 6
27
Pin AS Z620030141 1
28
Bolt M10×130M10×1×25
B041200002 JB999-77 4
29
Seal Spacer A10 B060811002 JB982-77 8
30
Bolt M10×130M16×25
B040911625 GB/T5783-2000 1
31
Washer Z520020890 1
32
Pin lubricant Pipe Z520030690 ZL50F.3.5 2
33
Support pad Z520020070 ZL50F.2-9 4
34
Steering cylinder Pin Z510020861 4
35
Washer Z640020100 4
36
Bolt M10×130M12×25
B040911225 GB/T5783-2000 4

39
Bushing MG19002205 4
40
Orientation Bushing MG19002200 1
41
Seal Ring W41000002 AF55×69×8 1
42
Guard MG22002106 1
43
Guard MG22002104 1
44
Guard MG19002192 2
45
Right Protection Plate MG22002111 1
46
Bushing MG19002191 1
47
Left Protection Plate MG22002110 1
48
Front Guard MG22002105 1
49
Bracket AS MG22002107 1
50
Rear frame assembly MG22002001 1

1 左护板 Left Protection Plate MG19002193 1
2 右护板 Right Protection Plate MG19002194 1
3 中间护板 Middle Protection Plate MG19002192 2
4 橡胶防尘密封圈 Rubber Dustproof Seal Ring MG19002204 8
5 衬套 Bushing MG19002205 4
6 前车架组件 Front Frame Group MG19002100 1
7 盖板 Cover Plate MG19002209 1
8 定位衬套 Orientation Bushing MG19002200 1
9 AF 型密封圈55×69×8 AF-Seal Ring 55×69×8 W41000002 GB10708.3-2006 1
10 前桥衬套 Front axle Bushing MG19002191 1
11 螺栓 M16×25 Bolt M16×25 B040911625 GB/T5783-2000 1
12 平垫 Washer Z520020890 1
13 摆架前销润滑油管
Swing Frame Front Pin
Lubricate Hose Z520030690 ZL50F.3.5 2
14 下铰接销轴总成 DOWN Joint Pin Assembly Z620030141 1
15 下铰接上轴承盖 DOWN Joint UP Bearing Cover Z620020050 ZL60F.2-5 1
16 密封圈 Seal Ring Z620020060 ZL60F.2-6 2
17 调整垫片 δ0.3 Adjusting Spacer δ0.3 Z620020030 ZL60F.2-3 1
18 轴承 GE80ES Bearing GE80ES B120528055 GB304.5-81 1

19 下铰接下轴承盖 DOWN Joint DOWN Bearing Cover Z620020070 ZL60F.2-7 1
20 螺栓 M10×20 Bolt M10×20 B040911020 GB/T5783-2000 18
21 转向缸前销轴总成
Cylinder Steering Front Pin
Assembly Z510020861 4
22 螺栓 M12×25 Bolt M12×25 B040911225 GB/T5783-2000 4
23 垫圈10 Washer10 B060411002 GB/T97.1-2002 22
24 螺栓 M10×25 Bolt M10×25 B040911025 GB/T5783-2000 4
25 油杯 M10×1 Oil Cup M10×1 B150101000 JB/T7940.1-1995 6
26 平垫 Washer Z640020100 4
27 螺栓 M10×1×25 Bolt M10×1×25 B041200002 JB999-77 4
28 组合密封垫圈 A10 Combined Seal WasherA10 B060811002 JB982-77 8
29 螺栓 M12×80 Bolt M12×80 B040911280 GB/T5783-2000 6
30 调整垫片 δ0.5 Adjusting Spacer δ0.5 Z620020100 ZL60F.2-10 1
31 调整垫片 δ0.7 Adjusting Spacer δ0.7 Z620020110 ZL60F.2-11 1

1 锁止销组件 Lock Pin Group MG19002201 1
2 主铰接销轴 Main Joint Pin MG19002147 1
3 上轴承盖 UP Bearing Cover Z520021130 1
4 调整垫 t0.1 Adjusting Spacer t0.1 Z520021110 10
5 上隔套 UP Sleeve MG19002139 1
6 密封圈 B95 120 12 Seal RingB95 120 12 B160410003 GB9877.1-88 2
7 圆锥滚子轴承33216X2 Tapered Roller B120408035 2
8 下轴承盖 DOWN Bearing Cover MG19002140 1
9 上隔套 UP Sleeve Z620030370 1
10 调整垫Ⅲ Adjusting Spacer Ⅲ Z640030090 2
11 上铰接销轴固定盘 UP Joint Pin Seat Z520031230 1
12 螺栓 M12×50 Bolt M12×50 B040811250 GB/T5782-2000 6
13 螺栓 M16×80 Bolt M16×80 B040811680 GB/T5782-2000 4
14 垫圈12 Washer12 B060411203 GB/T97.1-2002 20
15 螺栓 M12×140 Bolt M12×140 B040810047 GB/T5782-2000 8
16 调整垫 t0.5 Adjusting Spacer t0.5 Z520021120 6
17 垫圈16 Washer16 B060411603 GB/T97.1-2002 4
18 后车架组件 Rear Frame Group MG19002001 1
19 开口销6×70 Cotter Pin 6×70 B080210670 GB/T91-2000 1
