Description

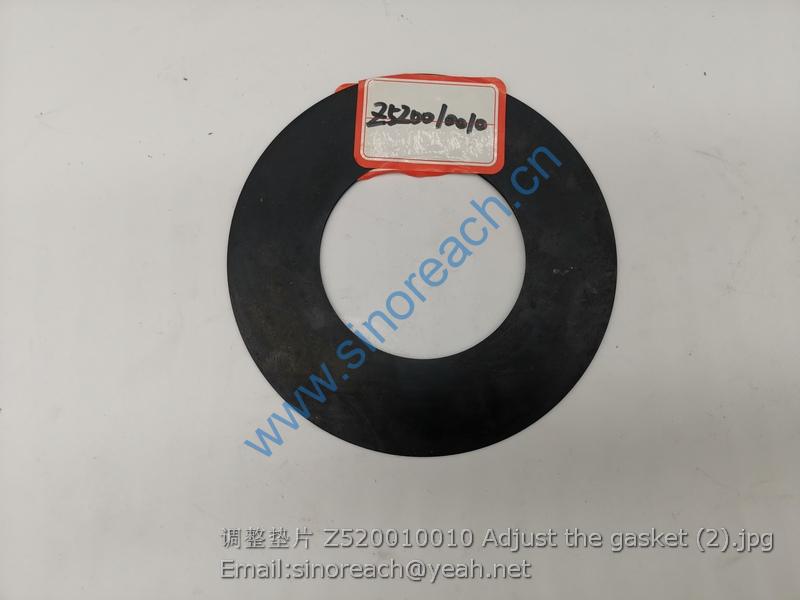

Z520010010 Adjust the gasket

1 螺栓 BOLT B040911020
8T4137 M10×20
GB/T5783-2000 14
2 焊接螺母 Nut B052221008
8T3490 M10
GC/T13681-1992 2
3 扎带 Clip W370000370A
1545143 PLB4H-
TLO,panduit 2
4 螺栓 BOLT B040911025
8T4136 M10×25
GB/T5783-2000 8
5 垫圈 Washer B060411002
8T4121 10
GB/T97.1-2002 31
6 管卡支架组件 II HOSE CLIP BRACKET GP.II Z5B753032 1
7 双管卡组件 II DOUBLE CLIP GP II Z5B753020 6
8 双管卡组件 I DOUBLE CLIP GP II Z5B753021 6
9 管卡支架 I HOSE CLIP BRACKET GP.II Z5B753024 4
10 管卡 Tube clip Z5A02701000 2
11 管卡支架组件 HOSE CLIP BRACKET GP Z5B753035 1
12 压缩机组件 COMPRESSOR W48000446 1
13 喉箍 Clamp B190120250
4346673 d25
JB/T8870-1999 4

14 手动水阀 Water valve W300601200B 2
15 手阀接头 Inlet air adapter Z5B02700700 2
16 空调进水接头 A/C inlet water adapter Z5A02700700 2
17 压缩机皮带 Compressor Belt W48000447 1
18 继电器 Relay W46000317 JQ211A 2
19 压-冷软管组件 Com.-Con.Hose Group W48000444 1
20 暖水管 HEATER HOSE W48000448 2
21 管卡支架组件 I CLIP GP I Z5B753030 1
22 蒸-压软管组件
EVAPORATOR-COMPRESSOR
HOSE GP. W48000445 1
23 贮-膨软管组件 RECEIVER-EAP.HOSE GP. W48000396 1
24 护线套 BUSHING Z5B753007 1
25 空调控制面板组件 A/C CONTROL PANEL GP W48000391 1
26 蒸发器装配组件 EVAPORATOR ASSEMBLY GP Z5B753001 1
27 管卡 Tube clip Z5B753027 4
28 冷凝器组件 CONDENSER GP Z5B753002 1
29 冷凝器支架 CONDENSER BRACKET Z5B753009 1

30 螺栓 BOLT B040911030
8T4195 M10×30
GB/T5783-2000 1
30 螺母 Nut B050331008
8T4133 M10
GB/T6170-2000 8
31 空调线束组件 A/C Harness GP Z5B586010 1
32 制冷剂加注贴花(1150g) FILM-A/C TD16001512 1
螺钉 Screw B010450001
M10*140
GB/T70.1-2008 1
螺钉 Screw B010451030
M10*30
GB/T70.1-2008 3
