Description

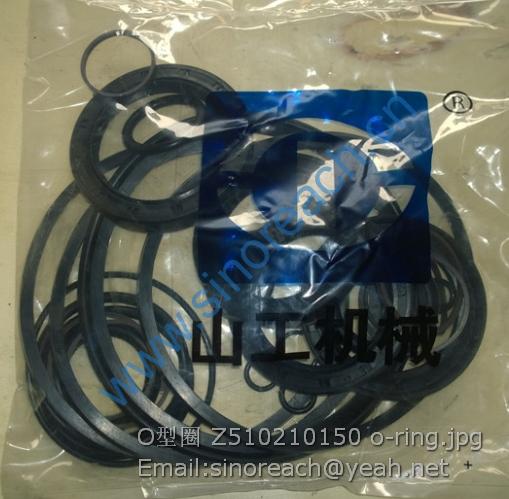

Z510210150 o-ring

1 螺钉 M10×30 Threaded screw M10×30 B010411030 16
2 螺栓 M12×60 Bolt M12×60 B040811260 4
3 螺栓 M8×20 Bolt M8×20 B040910820 20
4 螺栓 M10×16 Bolt M10×16 B040911016 28
5 螺栓 M10×25 Bolt M10×25 B040911025 4
6 螺栓 M12×25 Bolt M12×25 B040911225 15
7 螺栓 M12×30 Bolt M12×30 B040911230 30
8 螺栓 M20×50 Bolt M20×50 B040912050 8
9 螺母 M16 Nut M16 B050331614 6
10 垫圈 8 Washer8 B060110802 20
11 垫圈 10 Washer10 B060111003 48
12 垫圈 12 Washer12 B060111203 49
13 垫圈 20 Washer20 B060112005 8
14 组合密封垫圈 a14 Combine seal washer a14 B060811403 1
15 挡圈 130 Retainer 130 B070150011 1
16 挡圈 90 Retainer 90 B070159003 1
17 挡圈 95 Retainer 95 B070159503 2
18 挡圈 40 Retainer 40 B070214002 8
19 挡圈 110 Retainer 110 B070250001 1
20 挡圈 50 Retainer 50 B070255002 4
21 销 b16×30 Pin b16×30 B080121630 2
22 开口销 6.3×55 Cotter pin 6.3×55 B080210027 1
23 开口销 6.3×70 Cotter pin 6.3×70 B080210030 2
24 开口销 5×45 Cotter pin 5×45 B080210545 1
25 铆钉 2×5 Rivet 2×5 B090110205 4
26 螺柱 M16×30 Threaded stud M16×30 B100111630 6

27 螺塞 ZG1/4″ Plug ZG1/4″ B110200104 4
28 螺塞 M14×1.5 Plug M14×1.5 B110301400 1
29 螺塞 Z1/8″ Plug Z1/8″ B110400108 8
30 轴承 308 Bearing 308 B120134023 4
31 轴承 409 Bearing 409 B120144529 1
32 轴承 2222E Bearing 2222E B120320001 1
33 轴承 92312E Bearing 92312E B120330001 2
34 轴承 2408 Bearing 2408 B120344027 3
35 止动环 90/96.5 Stop ring 90/96.5 B120639000 5
36 轴承 50308 Bearing 50308 B121134023 5
37 O 形圈 14×2.65 O-ring 14×2.65 B160120140 4
38 O 形圈 26.5×2.65 O-ring 26.5×2.65 B160120265 1
39 O 形圈 32.5×3.55 O-ring 32.5×3.55 B160130325 1
40 O 形圈 37.5×3.55 O-ring 37.5×3.55 B160130375 1
41 O 形圈 97.5×3.55 O-ring 97.5×3.55 B160130975 1
42 O 形圈 175×5.3 O-ring 175×5.3 B160141750 1
43 油封 SG65×90×12 Oil seal SG65×90×12 B160240001 1
44 油封 SG70×95×12 Oil seal SG70×95×12 B160240003 2
45 呼吸器 Respirator JB326305000 1
46 铁丝 Iron wire W110002140 1
47 齿轮 Gear Z510210180 1
48 前输出连接法兰 Front output flange Z510210200 1
49 油标 GCY-100 Oil indicator GCY-100 W110001540 1
50 螺母 Nut Z200020480 1
51 箱体 Tank body Z510210010 1
52 离合器轴 Clutch shaft Z510210020 3
53 盖 Cover Z510210030 3

54 输入联接盘 Input joint plate Z510210040 1
55 输入轴 Input shaft Z510210050 1
56 压板 Clamping plate Z510210060 1
57 O 型圈 38×5.7 O-ring 38×5.7 Z510210070 1
58 输入齿轮 Input Gear Z510210080 1
59 齿轮 Gear Z510210090 1
61 齿轮 Gear Z510210110 1
62 输出轴 Output shaft Z510210130 1
63 压板(输出轴)
Clamping plate (Output
shaft) Z510210140 2
64 O 型圈 41×8.6 O-ring 41×8.6 Z510210150 2
65 挡板 Baffle Z510210160 2
66 接合套 Joint sleeve Z510210170 1
67 弹簧 Spring Z200020860 1
68 轴承座 Bearing carrier Z510210190 1
69 钢球 10 Steel ball 10 B120711000 1
70 套 Sleeve Z510210210 1
71 变速箱盖 Gear box cover Z5102102201 1
72 进油盖 Inlet cover Z510210232 2
73 密封环 Ring seal Z510210240 8
74 垫片 Gasket Z510210250 8
75 封油板 Oil sealing board Z510210260 1
76 套 Sleeve Z510210270 4
77 进油盖(前进档) Inlet cover (front gear) Z510210282 1
78 输入轴盖 Input shaft Cover Z510210290 1
79 进油盖(后退档) Inlet cover (rear gear) Z510210302 1
80 密封环 Ring seal Z510210310 4
81 拨叉 Yoke Z510210330 1

82 拉杆 Tension rod Z510210340 1
83 螺钉 Threaded screw Z510210350 1
84 螺塞 Plug Z510210360 1
85 垫片 Gasket Z510210370 1
86 法兰 Flange Z510210380
87 压板 Clamping plate Z510210390 1
88 螺母(M36×1.5) Nut (M36×1.5) Z510210400 3
89 高低速齿轮轴套 High-low speed gear bushing Z510210411 1
90 变速箱标牌 Gearbox name plate Z510210420 1
91 离合器(F、R)组 Clutch (F、R) NZ51021043000 2
92 离合器(Ⅰ、Ⅲ)组 Clutch (Ⅰ、Ⅲ) NZ51021058000 1
93 离合器(Ⅱ、Ⅳ)组 Clutch (Ⅱ、Ⅳ) NZ51021060010 1
94 蓄能器总成 Accumulator assembly Z510210640 1
95 滤油器左法兰盘 Oil filter left flange Z510210870 1
滤油器右法兰盘 Oil filter right flange Z510210880 1
96 变速箱操纵阀 Gear box control valve W031500000 1
97 挡油板总成 Oil Retainer assembly Z510211040 1
98 过渡盘 Transition case Z510211130 1
99 进油盖轴套 Inlet cover shaft sleeve Z510211230 4
100 呼吸器接头 Respirator fitting Z51021167 1
101 过油板 Oil-Through board Z51021168 1
102 后输出连接法兰 Connecting flange Z510210120 1
103 放油螺塞 Purge cock Z640060320 1
104 滤网总成(120 目)50D Screen assembly Z510210890 1
105 O 形圈 71×5.3 O-ring71×5.3 B160140710 2
106 销 Pin B080121040 1
