Description

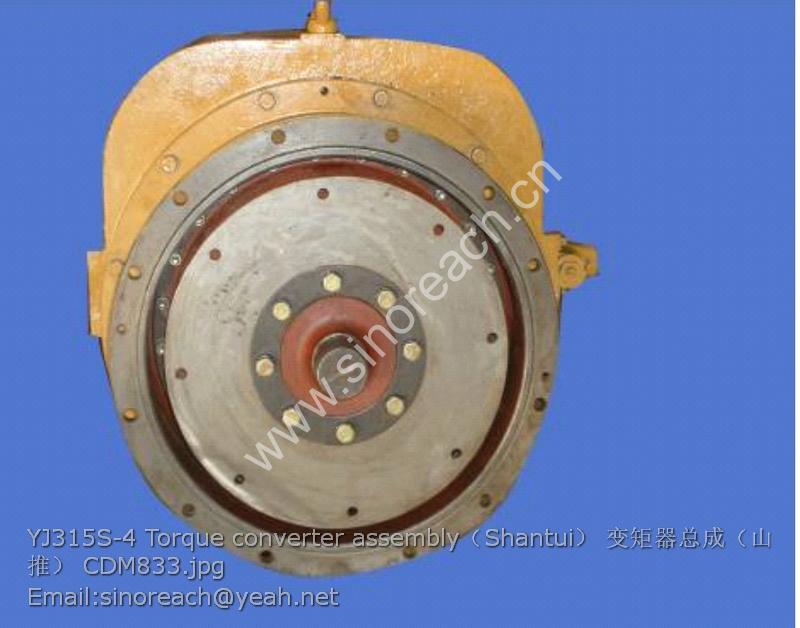

YJ315S-4 Torque converter assembly for longking CDM833 spare parts

GB5786-86 螺栓M12×1.5×40-10.9 Bolt M12×1.5×40-10.9 40
GB889-86 螺母M12×1.5-8 Nut M12×1.5-8 40
LG50F.04201A 前传动轴总成 Front drive shaft assembly 1 LG855.04.01
LG50F.04202A 中间支承轴 Intermediate support shaft 1 LG855.04.02
GB5782-86 螺栓M16×50-8.8 Bolt M16×50-8.8 4
GB97.1-85 垫圈 16 Washer 16 4
GB93-87 垫圈 16 Washer 16 4
LG50F.04203A 中/后传动轴总成 Intermediate/rear drive shaft assembly 2 LG855.04.03

403302A 尼龙自锁螺母M33×1.5 Nylon self-lock nut M33×1.5
404327 O型圈 O-ring
404301-302B 输入法兰 Input flange
GB/T5782 螺栓M14×55-8.8 Bolt M14×55-8.8
GB/T93 垫圈 14 Washer Ф14
GB/T5782 螺栓 M12×55-8.8 Bolt M12×55-8.8
GB/T93-87 垫圈 12 Washer 12
GB/T9877.1-1998 油封 FB62×93×13 Seal FB62×93×13
404303A 密封盖 Seal cover
404304 密封垫 Seal gasket
GB/T297 圆锥滚子轴承 31310 Taper roller bearing 31310
404306 轴承套 Bearing sleeve
404305 铜垫 Copper pad
404325 调整垫片 Adjusting shims
404307 轴套 Shaft sleeve
GB/T297 圆锥滚子轴承 31311 Taper roller bearing 31311
404312B 托架 Bracket
GB/T297 圆锥滚子轴承 32215 Taper roller bearing 32215
404315 调整螺母 Adjusting nut
404319B 锁紧片 Lock sheet
GB/T93-87 垫圈 10 Washer 10
GB/T32.1 螺栓 M10×1×20-8.8 Bolt M10×1×20-8.8
GB/T97-76 垫圈 22 Washer 22
GB/T32.1 螺栓 M22×90-8.8 Bolt M22×90-8.8
保险铁丝Ф1.6×450 Iron wire Ф1.6×450
404311C/D 主动螺旋伞齿轮 Spiral bevel gear
