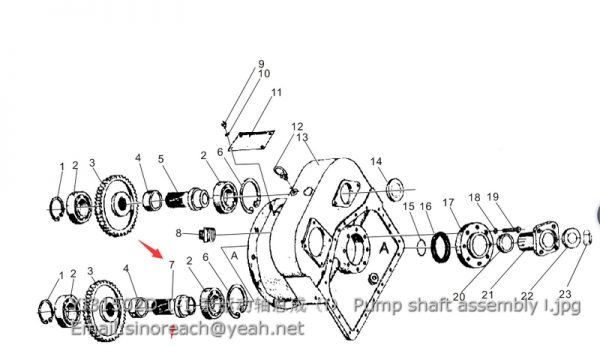

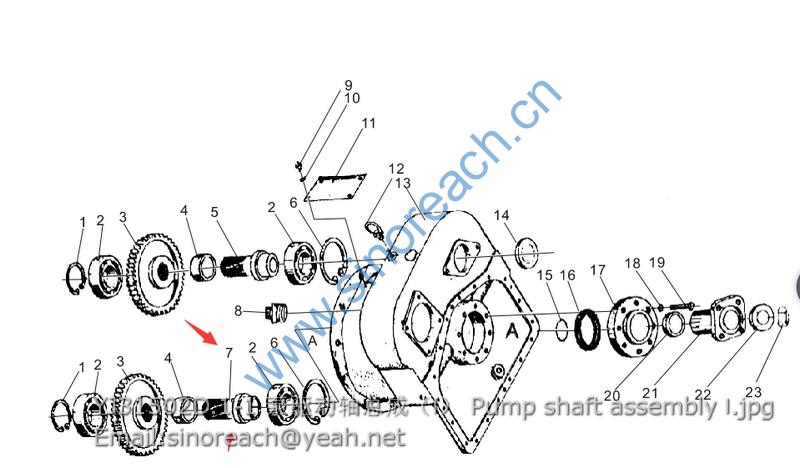

YJ31502D.1-1 Pump shaft assembly Ⅰ for LONKING spare parts

1 CDM6210.05.01 BOOM ARM 动臂本体 1
2 GB/T5783 BOLT M12×30 螺栓 M12×30 30
3 GB/T97.1 WASHER 12 垫圈 12 24
4 CDM6210.05-04 BOOM ARM HOSE CLIP Φ27 动臂管夹Φ27 8
5 GB/T5783 BOLT M16×35 螺栓 M16×35 2
6 GB/T97.1 WASHER 16 垫圈 16 2
7 CDM6210.05-01 LAMP BRACKET 灯架 2
8 GB/T5782 BOLT M16×150 螺栓 M16×150 2
9 GB/T6170 NUT M16 螺母 M16 4
10 LG6230.15-07 SLEEVE 隔套 2
11 CDM6210.05-12 ADJUST SHIMS 垫片 2
12 CDM6210.14.06-04 CLIP D27-27 管夹 D27-27 2
13 CDM6210.05-13A BOOM ARM MIDDLE PIN 动臂中部销轴 1
14 CDM6210.05-02 BOOM ARM HOSE CLIP Φ27-34 动臂管夹Φ27-34 4
15 CDM6210.05-05 ANTIFRICTION WASHER Ⅲ 减磨垫片Ⅲ 2
16 CDM6210.05-06 ADJUST SHIMS Ⅰ（GROUP） 调整垫片Ⅰ(组) 4
17 VAW09001 DUST PROVE SEAL 90×105×6 防尘密封圈 90×105×6 2
18 CDM6210.05-07 BEARING Φ90×Φ105×90 轴承Φ90×Φ105×90 2
19 CDM6210.05.09 REAR PIN ASSEMBLY 后端销轴总成 1
20 CDM6210.05-08 SPRAG Φ22×5.5 挡圈Φ22×5.5 5
21 GB/T5783 BOLT M20×40 螺栓 M20×40 2
22 GB/T97.1 WASHER 20 垫圈 20 5
23 CDM6210.05-03 BOOM ARM HOSE CLIP Φ27 动臂管夹Φ27 4
24 CDM6210.05-15 ANTIFRICTION WASHER Ⅰ 减磨垫片Ⅰ 2
25 CDM6210.05.12 BOOM ARM FRONT PIN ASSEMBLY 动臂前端销轴总成 1
26 GB/T5783 BOLT M12×50 螺栓 M12×50 8
27 CDM6210.14.04-06 SLEEVE D27 胶套 D27 5
28 CDM6210.14.06-05 CLAMP D27 管夹 D27 4
29 CDM6210.05-19 WASHER 垫片 4
30 GB/T5783 BOLT M20×30 螺栓 M20×30 1
31 CDM6210.05.11 BUCKET ROD CYLINDER PIN ASSEMBLY 斗杆油缸销轴总成 1
32 CDM6210.05-09 PIN WASHER Φ82×12 销轴垫圈Φ82×12 1
33 CDM6210.05-18 SPACER 垫片 4

1 H30973401 CYLINDER SUBASSEMBLY 缸筒组件 1
2 H71109800 PIN SLEEVE 销衬套 1
3 H30973601 ROD SUBASSEMBLY 杆组件 1
4 H71109800 PIN SLEEVE 销衬套 1
5 80B248-0 FRONT END COVER 前端盖 1
6 E8415280 SLEEVE 衬套 1
7 00M320-0 RETAINER RING 保持环 1
8 E5500281 SHOCK-ABSORBING SEAL RING 减震密封圈 1
9 E5320882 SHAPE-U WASHER U 形垫圈 1
10 E6671060 SPRAG 挡圈 1
11 E6020280 DUST-GUARD RING 除尘器 1
12 00M314-0 RETAINER RING 保持环 1
13 E6311621 O-RING O 形圈 1
14 53B423-1 SPRAG 挡圈 1
15 E6311641 O-RING O 形圈 1
16 00C363-0 WASHER 垫圈 1
17 53B393-1 PISTON 活塞 1
18 E5130260 PISTON SEAL 活塞密封 1
19 00Z105-0 ABRASION-RESISTANT RING 承磨环 2
20 00R097-0 DUST-GUARD RING 防尘环 2
21 E6311301 O-RING O 形圈 1
22 53B422-1 SPRAG 挡圈 2
23 82A207-2 PISTON NUT 活塞螺母 1
24 E1330544 ADJUSTING SCREW 调节螺钉 1
25 E0502139 HEXAGON BOLT 内六角螺栓 10
26 H30973700 PIPE CLAMP COMPONENTS 管夹带圈组件 1
27 03B243-0 PIPE CLAMP 管夹带圈 1
28 E3110102 SPRING WASHER 弹簧垫圈 2
29 E0020673 HEXAGON BOLT 六角螺栓 2
30 H30974000 PIPE COMPONENTS 管组件 1
31 E6300621 O-RING O 形圈 1
32 E3110102 SPRING WASHER 弹簧垫圈 4
33 E0501246 HEXAGON BOLT 内六角螺栓 4
34 H30974100 PIPE COMPONENTS 管组件 1
35 E6300621 O-RING O 形圈 1
36 E3110102 SPRING WASHER 弹簧垫圈 4
37 E0501246 HEXAGON BOLT 内六角螺栓 4
38 00C257-0 PIPE CLAMP 管夹 1
39 E3110112 SPRING WASHER 弹簧垫圈 1
