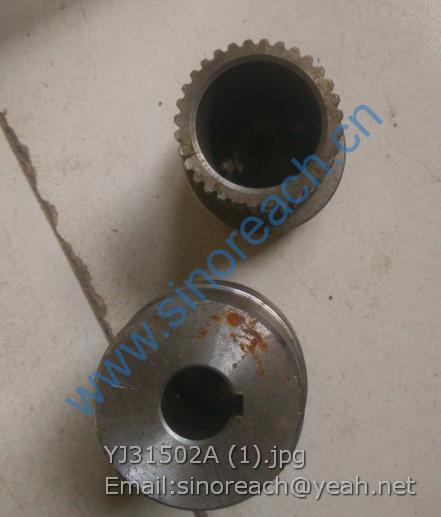

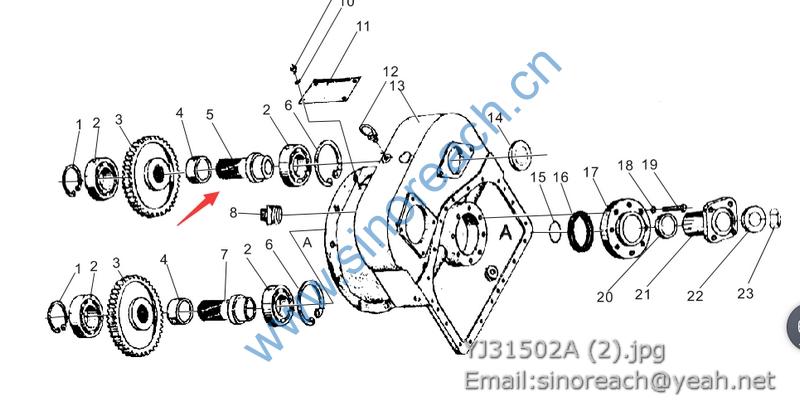

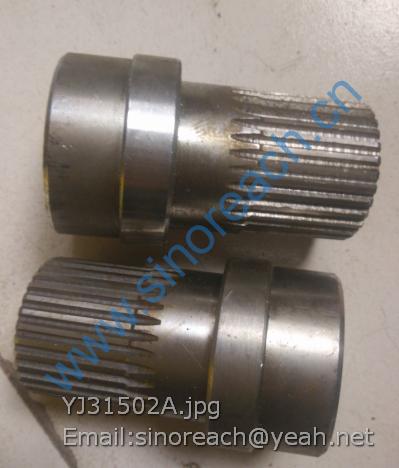

YJ31502A.4-1 Pump shaft assembly Ⅱ for LONKING spare parts
1 CDM6200.74.01 BUCKET 铲斗本体 1
2 GB/T5782 BOLT M16×150 螺栓 M16×150 2
3 GB/T6170 NUT M16 螺母 M16 4
4 CDM6210.71.02 PIN ASSEMBLY 销轴总成 2
5 LG6230.15-09 ADJUST SHIMS 调整垫片 4
6 GB/T3452.1 O RING Φ145×10 O 形圈Φ145×10 4
7 GB/T6170 NUT M24 螺母 M24 10
8 GB/T1230 WASHER 24 垫圈 24 10
9 S/C-6230L LEFT CORNER TOOTH 左侧齿板 1
10 GB/T5782 BOLT M24×70 螺栓 M24×70 10
11 S/C-6230R RIGHT CORNER TOOTH 右侧齿板 1
12 GB/T5782 BOLT M16×150 螺栓 M16×150 1
13 SPRING-6230 SNAP RING 扣环 5
14 PIN-6230 PIN 销 5
15 P-6230 TOOTH SLEEVE 齿套 5
1 CDM6210.73.01 BUCKET 铲斗本体 1
2 GB/T5782 BOLT M16×150 螺栓 M16×150 2
3 GB/T6170 NUT M16 螺母 M16 4
4 CDM6210.71.02 PIN ASSEMBLY 销轴总成 2
5 LG6230.15-09 ADJUST SHIMS 调整垫片 4
6 GB/T3452.1 O RING Φ145×10 O 形圈Φ145×10 4
7 GB/T6170 NUT M24 螺母 M24 8
8 GB/T1230 WASHER 24 垫圈 24 8
9 E200BL LEFT CORNER TOOTH 左侧齿板 1
10 GB/T5782 BOLT M24×70 螺栓 M24×70 8
11 E200BR RIGHT CORNER TOOTH 右侧齿板 1
12 GB/T5782 BOLT M16×150 螺栓 M16×150 1
13 SPRING-6230 SNAP RING 扣环 4
14 PIN-6230 PIN 销 4
15 1U3352RC TOOTH SLEEVE 齿套 4
1 CDM6210.06.02.01 TILT ARM 摇臂本体 1
2 CDM6210.05-14 ANTIFRICTION WASHER II 减磨垫圈 II 2
3 VAY 80 95 4 DUST PROVE SEAL 80×95×4 防尘密封圈 80×95×4 8
4 CDM6210.06.02-02 STEEL SLEEVE Φ80×Φ95×80 钢套Φ80×Φ95×80 2
5 CDM6210.06.02.02 CONNECTION FRAME 连接架本体 1
6 CDM6210.06.02-01 TILT ARM PLATE 摇臂板 2
7 GB/T5782 BOLT M16×150 螺栓 M16×150 2
8 CDM6210.06.02-03 LINK ROD SHAFT 连杆轴 1
9 GB/T6170 NUT M16 螺母 M16
10 CDM6210.06.02-04 TILT ARM SHAFT 摇臂轴 1
11 VAY 70 85 4 DUST PROVE SEAL 70×85×4 防尘密封圈 70×85×4 2
12 CDM6210.06-01 STEEL SLEEVE Φ70×Φ85×70 钢套Φ70×Φ85×70 2
13 CDM6210.06-02 STEEL SLEEVE Φ80×Φ95×110 钢套Φ80×φ95×110 4
14 CDM6210.06.01 BUCKET ROD 斗杆本体 1
15 VAW09001 DUST PROVE SEAL 90×105×6 防尘密封圈 90×105×6 2
16 CDM6210.05-07 BEARING Φ90×Φ105×90 轴承Φ90×Φ105×90 2
17 PT1/8 OIL CUP 油杯 7
18 LG6230.15-05 ADJUST SHIMS 调整垫片 2
19 CDM6210.05-09 WASHER Φ82×12 垫圈Φ82×12 1
20 CDM6210.05.11 BUCKET ROD CYLINDER PIN ASSEMBLY 斗杆油缸销轴总成 1
21 CDM6210.05-08 SPRAG Φ22×5.5 挡圈Φ22×5.5 2
22 GB/T97.1 WASHER 20 垫圈 20 2
23 GB/T5783 BOLT M20×40 螺栓 M20×40 2
24 CDM6210.06.03 BUCKET CYLINDER PIN ASSEMBLY 铲斗油缸销轴 1
25 CDM6210.06-03 WASHER D72×14 垫圈 D72×14 1
