Description

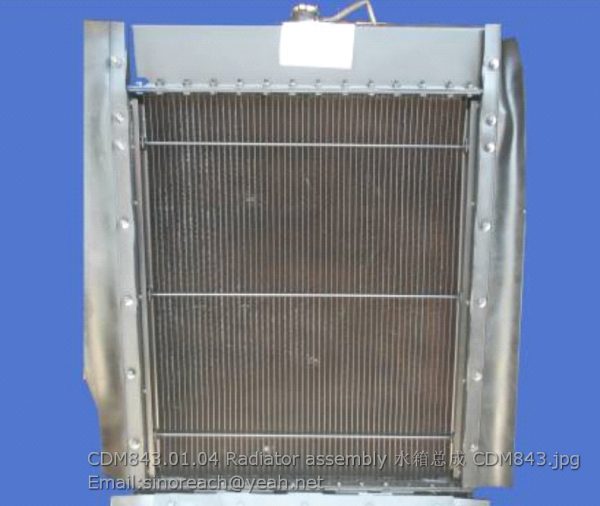

Wheel Loader Parts Plate CDM843.01.04 Water Radiator for Lonking CDM843
| GB/T296-94 | 轴承3212（60×100×36.5） | Bearing 3212（60×100×36.5） | 1 | |
| GB3452.1-92 | O型密封圈140×2.65 | O-ring 140×2.65 | 1 | |
| YJ31502A-8 | 泵轮毂 | Pump wheel hub | 1 | |
| YJ31502A-16 | 隔板 | Baffle | 1 | |
| YJ31502A-15 | O型密封圈 | O-ring | 2 | |
| GB/T2600-80 | 骨架油封SG115×140×12 | Framed oil seal SG115×140×12 | 1 | |
| YJ31502A-11 | 主动齿轮 | Drive gear | 1 | |
| GB/T894.1 | 挡圈100 | Spacer 100 | 1 | |
| YJ31502A-9 | 密封环 | Seal ring | 2 | |
| YJ31502B-2 | 导轮座 | Idler seat | 1 | |
| GB3452.1-92 | O型密封圈185×3.55 | O-ring 185×3.55 | 1 | |
| GB3452.1-92 | O型密封圈190×3.55 | O-ring 190×3.55 | 1 | |
| YJ31502C-5 | 涡轮轴 | Turbine shaft | 1 | |
| GB/T276-94 | 轴承 6312（60×130×31） | Bearing 6312（60×130×31） | 1 | |
| GB/T893.1 | 挡圈130 | Spacer 130 | 1 | |
| GB/T97.2 | 垫圈8 | Washer 8 | 24 | |
| YJ31502D-1 | 定心轴头铜套 | Centering shaft end copper sleeve | 1 |
| LG380F.03.01 | 变速箱总成 | Transmission assembly | 1 | ZL30E.5G |
| GB/T97.1 | 垫圈 16 | Washer 16 | 8 | |
| GB/T890 | 螺母M16 | Nut M16 | 4 | |
| GB/T5783 | 螺栓M16×50 | Bolt M16×50 | 4 | |
| LG380F.03.02 | 制动器 | Brake | 1 | ZL1615.2A |
| ZL30E.5G-1 | 箱体 | Transmission case | 1 | |
| GB/T119-2000 | 圆柱销 | Cylindrical pin | 2 | |
| ZL30E.5-2A | 箱盖 | Transmission cover | 1 | |
| ZL30E.5-3 | 密封垫 | Seal gasket | 1 | |
| ZL30E.5.1 | 一轴离合器总成 | Shaft Ⅰ clutch assembly | 1 | |
| ZL30E.5.3 | 二轴离合器总成 | Shaft Ⅱ clutch assembly | 1 | |
| ZL30E.5.4 | 三轴离合器总成 | Shaft Ⅲ clutch assembly | 1 | |
| ZL30E.5-4 | 倒挡齿轮 | Reverse gear | 1 | |
| GB893.1-86 | 挡圈90 | Spacer 90 | 3 | |
| GB/T276-94 | 轴承 6308 | Bearing 6308 | 1 | 40×90×28 |
| ZL30E.5-7 | 轴套 | Shaft sleeve | 1 | |
| GB894.1-86 | 挡圈40 | Spacer 40 | 1 | |
| ZL30E.5-5 | 轴套 | Shaft sleeve | 1 | |
| ZL30E.5-6 | 倒挡齿轮轴 | Reverse gear shaft | 1 | |
| GB3452.1-82 | O型圈45×2.65 | O-ring 45×2.65 | 1 | |
| ZL30E.5-26A | 密封垫 | Seal gasket | 1 | |
| GB93.1-87 | 垫圈10 | Washer 10 | 47 | |
| GB/T5782-2000 | 螺栓M10×30 | Bolt M10×30 | 15 | |
| ZL30E.5.2 | 一轴端盖总成 | Shaft Ⅰ end cover assembly | 1 | |
| ZL30E.5-8 | 密封垫 | Seal gasket | 2 | |
| GB93.1-87 | 垫圈12 | Washer 12 | 35 | |
| GB5782-2000 | 螺栓M12×35 | Bolt M12×35 | 29 | |
| ZL30E.5.9A | 二轴端盖总成 | Shaft Ⅱ end cover assembly | 1 |
