Description

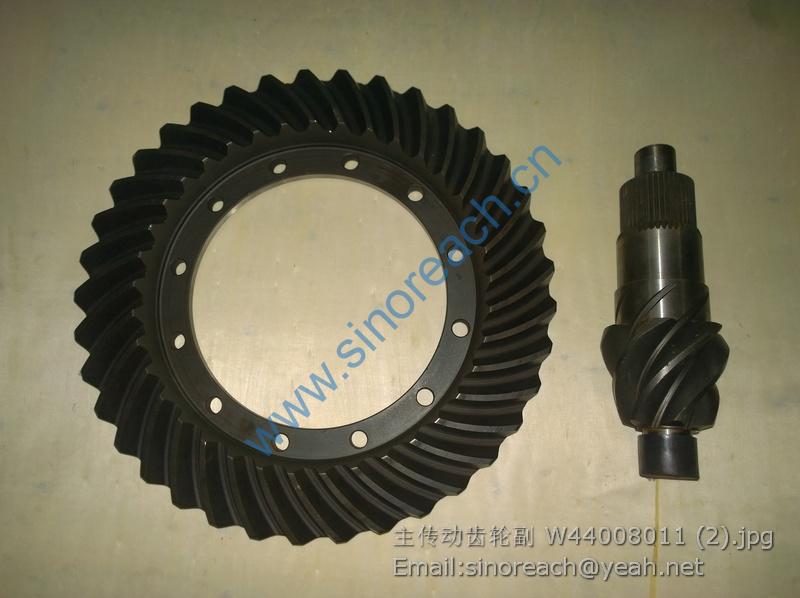

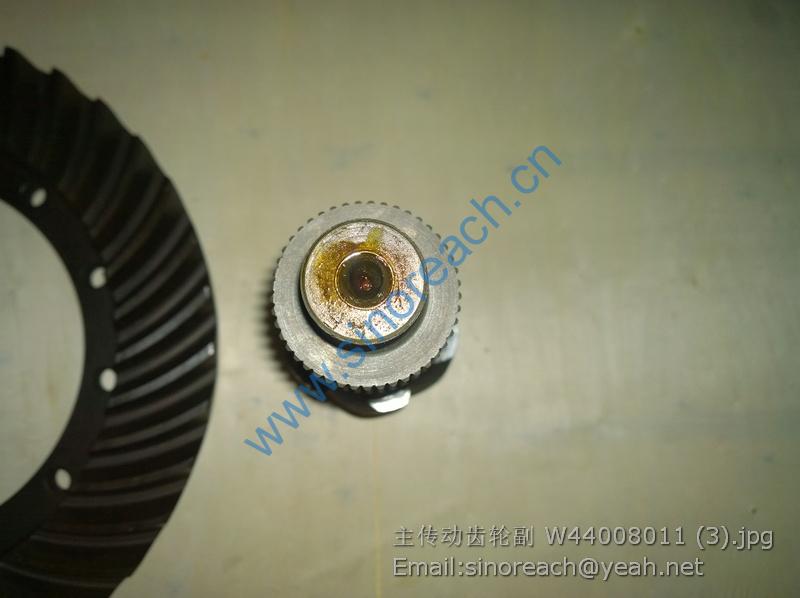

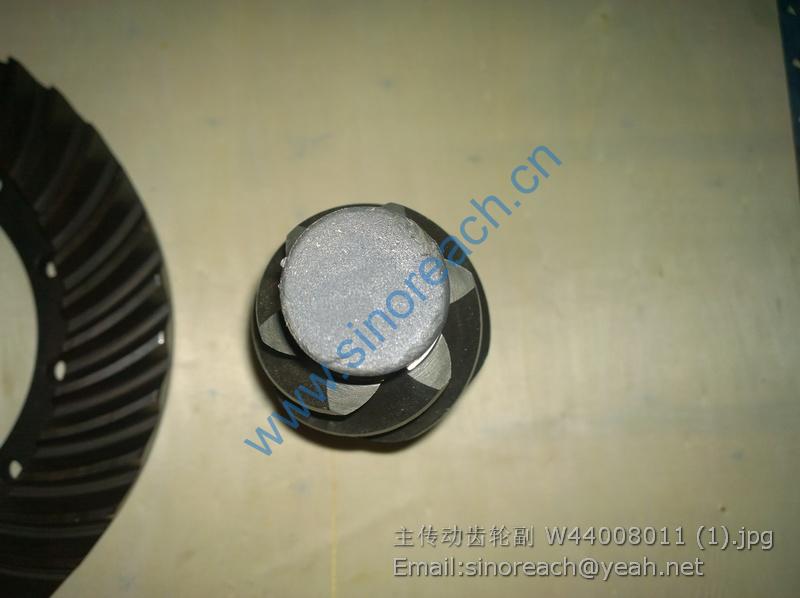

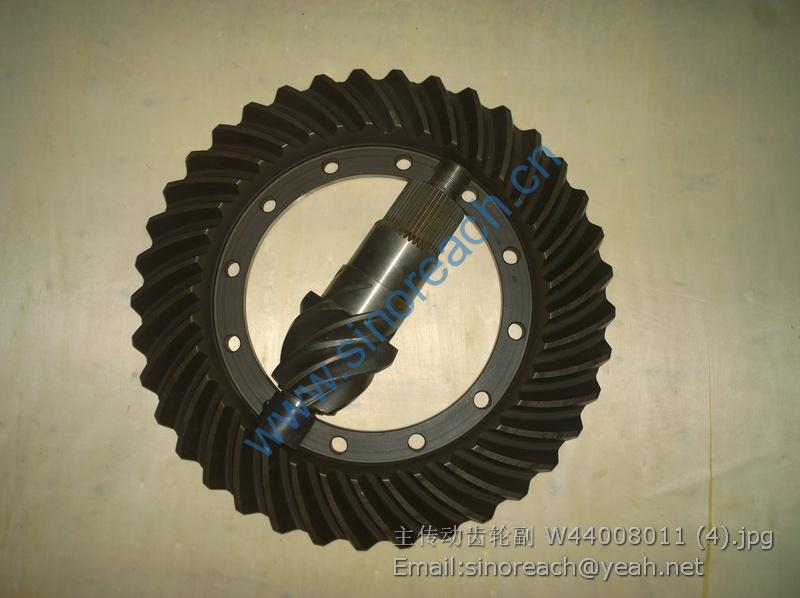

W44008011 MAIN TRANSMISSION SPIRAL GEAR 9302959 SEM

1 锁紧螺母 NYLON LOCK NUT W44008009 1
2 连接法兰组件 9302954 CONNECTING FLANGE COMPONENTS W44008010 1
3 螺栓 M14×1.5×55-10.9 BOLT B041011455 7
4 垫圈 14 WASHER B060111404 7
5 螺栓 M12×1.5×55 BOLT B041011255 1
6 垫圈 12 WASHER B060111203 1
7 油封座 002E 75201770 OIL SEALING RETAINER W041400091 1
8 主减油封 80x100x10 单唇 OIL SEAL W041401461 1
9 轴承座 75201767 BEARING SEAT W041400871 1
10 垫片 75202107 WASHER-HARD W041401141 1
11 轴承 27314E BEARING B120400017 1
12 轴承隔套 75201730 BEARING SLEEVE W041400501 1
13 轴承 27313E BEARING B120400016 1
14 主传动齿轮副 9302959 MAIN TRANSMISSION SPIRAL GEAR W44008011 1
15 轴承 GB/T283-1994,NUP2307 TAPERED ROLLER BEARING W44008012 1
16 主减速器壳体 99100201 MAIN REDUCER CASE QT500-7 W44008013 1
17 锁紧片 75200054 LOCK DISC W046100100 2
18 螺栓 M10×20 BOLT B040911020 2

19 螺栓 M14×1.5×50 BOLT B041011450 12
20 螺母 M14×1.5 NUT B050411412 12
21 轴承 32216 GB/T297-1994,32216 BEARING W44008016 2
22 止推螺栓 79600095 THRUST BOLT W041401181 1
23 锁紧片 79600097 LOCK DISC W041401490 1
24 螺母 M27×2 NUT-HEX W041401191 1
25 垫圈 38 404326 WASHER 38 W44008014 1
26 铜套 79600096 COPPER COPPY W046100020 1
27 主减油封 80x100x10 双唇 OIL SEAL W041401471 1
29 差速器总成 150 DIFFERENTIAL ASSEMBLY W041400201 1

1 差速器壳体组件 81511101 CASE AS-DIFF W44008015 1
2 半轴齿轮垫 HALF AXLE GEAR PAD W046100630 2
3 行星轮垫 ZL50D 徐州桥 PLANET GEAR GASKET W041400131 4
4 差速器螺栓 ZL50D 徐州桥 DIFFERENTIAL BOLT W041401341 8
5 十字轴 116 ZL50D 徐州桥 SPIDER W041400261 1
6 差速器齿轮组件 57000050（美驰） DIFFERENTIAL GEAR COMPONENTS W046100600 1
7 差速器螺母 DIFFERENTIAL NUT W041401346 8

1 行星轮轴 CZQ520.3-6 SHAFT-PLANET W44008003 4
2 隔环 75600334 SPACER W041400061 4
3 太阳轮 79001524 SUN GEAR W046100660 1
4 轴用挡圈 50 RETAINER B070255002 1
5 行星轮 79001547 PLANET GEAR W046100170 4
6 轮边行星垫 75600457 WASHER W041400071 8
7 螺塞 M24×1.5 PLUG W041400941 1
8 组合密封垫圈 24 COMBINED SEAL WASHER B060802403 1
9 调整支柱 79605020 ADJUSTING COLUMN20CRMNTI W046100680 1
10 限位块 73520042 STOP PLATE W041400601 1
11 螺栓 M12×1.25×23 BOLT W041401021 7
12 垫圈 12 WASHER B060111203 7
13 螺钉 M10X35 SCREW B010311035 3
14 锁片 ZL50D 徐州桥 LOCK SHEET W041400361 1
15 套管螺母 ZL50D 徐州桥 SOCKET NUT W041400311 2
16 隔环 75600334 SPACER W041400061 1
17 锥套 ZL50D 徐州桥 SLEEVE W041400371 1
18 卡环 76101022 RING-RETAINING W046100203 1

19 齿圈 76101031 GEAR-RING W046100202 1
20 齿圈支承 77500940 GEAR RING CARRIER 40CR W046100201 1
21 轴承 2007124E TAPERED ROLLER BEARING B120400013 1
22 轴承 GB/T297-1994,32024 TAPERED ROLLER BEARING W44008004 1
23 油封座 RETAINER-SEAL W041400431 1
24 轮毂 9302974 HUB ZL60D.24.1-27 ZG310-570 W44008005 1
25 50 轮边油封 150×180×15 SEAL W041401081 1
26 轮边油封 FB150x180x15 国产 OIL SEAL W041401481 1
27 挡油环 79500823 OIL THROWER W44008006 1
28 滚针 P φ6×29.8 NEEDLEP Z610240170 216
29 组合密封垫圈 A12 WASHER B060811203 1
30 螺塞 83810305（美驰） PLUG W046100570 ,M12x1.25×14 1
31 垫圈 10 WASHER B060111003 1
32 螺栓 M10×1.25×23 BOLT W041400991 1
33 密封圈 75501909 SEAL RING W046100240 1
34 行星轮架 9302968 PLANET GEAR CARRIER W44008007 1
35 端盖 9302967 PLATE W44008008 1
19 齿圈 76101031 GEAR-RING W046100202 1
