Description

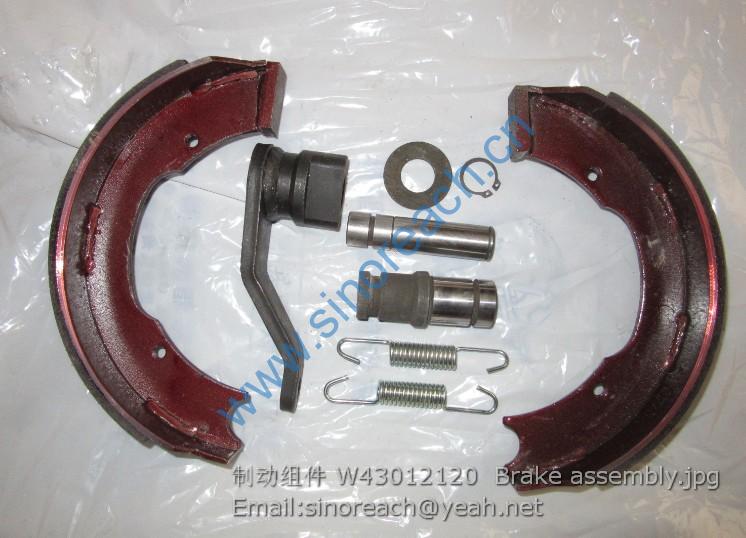

W43012120 Brake assembly

18
O 型圈
O washer
B160152060 GB/T3452.1-2005 1
19
震动传感器
Libration senior
W370001050B 1
20
连接盘
Connecting plate
Y02001028 1
20
堵塞
Bolt
Y02001046 1
21
马达联接花键轴
Motor connecting spline axis
Y02001035 1
22
联接板
Connecting plate
Y02001005 2
23
减震垫
Damping pillow
2210171 12
24
中间花键轴
mid-spline axis Y02001036
1

1
内轴承座
Inner bearing seat
Y02001053 1
2
轴承
Bearing
B120330003 GB/T283-1994 2
3
骨架油封
Framework oilproof
B160420011 GB/T9877.1-1988 4
4
左偏心轮组件
Right eccentricity wheel
assembly
Y01001013 1
4
小钢球
Steelball
W38000300 Φ3.3,18T 1
4
螺塞
Bolt
Y02001045 M30×2 1
5
O 型圈
O washer
B160156700 GB/T3452.1-2005 1
6
右轴承座
Right beaing seat Y02001055
1
7
螺栓
Bolt
B040911635 GB/T5783-2000 6
7
垫圈
Washer
B060411603 GB/T97.1-2002 6
8
放油螺塞
Giving-out bolt
Z640060320 2

1
前配重组件 18T
The counterweight assembly
Y01002001 1
2
垫圈 24
Washer 24
B060412404 GB/T97.1-2002 32
3
螺栓 M24×90-10.9
Bolt M24×90-10.9
B040862490 GB/T5782-2000 32
4
螺栓 M6×10
Bolt M6×10
B040910610 GB/T5783-2000 8
5
垫圈 6
Washer 6
B060410602 GB/T97.1-2002 8
6
盖板
Cover plate
Y02002035 2
7
螺栓 M20×80-10.9
Bolt M20×80-10.9
B040862080 GB/T5782-2000 12
8
垫圈 20-300HV
Washer 20-300HV B060462003
GB/T97.1-2002 12
9
盖板
Cover plate
Y02002013 1
10
角接触关节轴承 GAC85S
Angular contact bearing
GAC85S
W380000180 GB/T9164-2001 2
11
油杯 M10×1
Oil cup M10×1
B150211000 JB/T7940.2-1995 4
12
转向销轴
Steering pin
Y02002029 2
13
衬套
Bushing
Y02002028
2
14
开口销 6.3×70
Cotter pin 6.3×70
B080210030 GB/T91-2000 2
15
螺栓 M16×40
Bolt M16×40
B040911640 GB/T5783-2000 12
16
垫圈 24
Washer 24
B060412404 GB/T97.1-2002 8
17 调整垫
Trimmed gasket
Y02002016 2
18 轴承盖
Bearing cover
Y02002012 2
