Description
W100000410 Push-pull cable pedal SEM
1
螺栓 M6×30
Bolt M6×30
B040910630 2
2
垫圈 6
Washer 6
B060110602 2
3

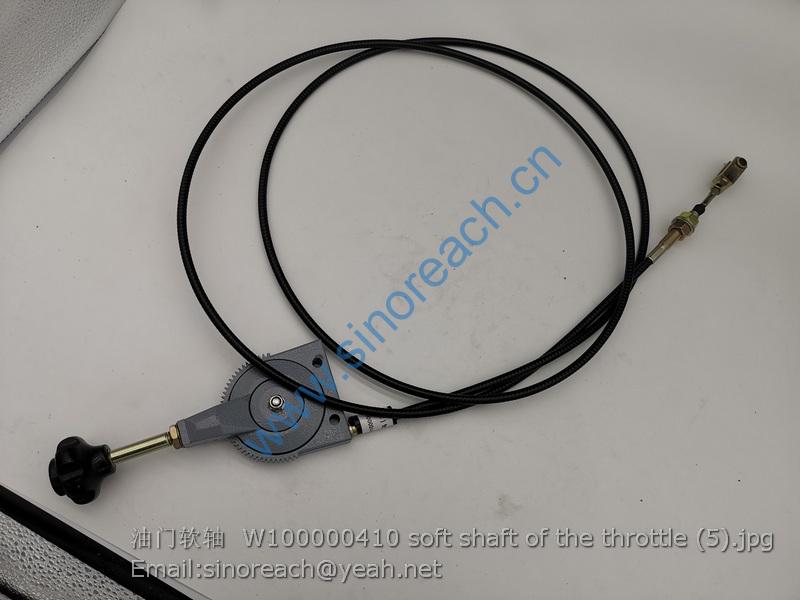

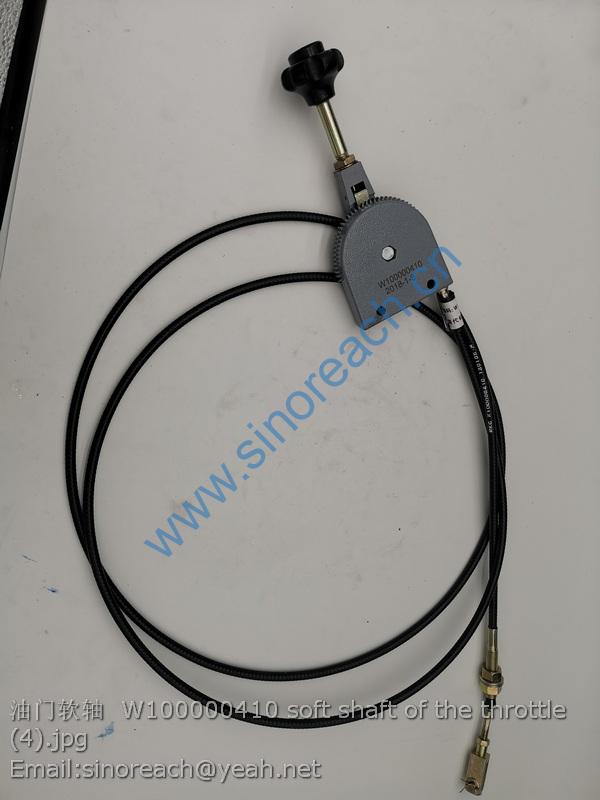

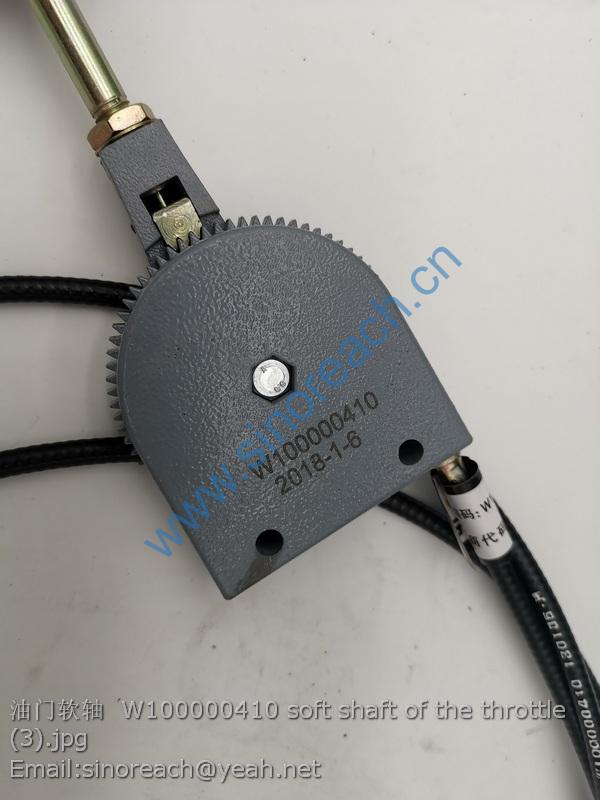

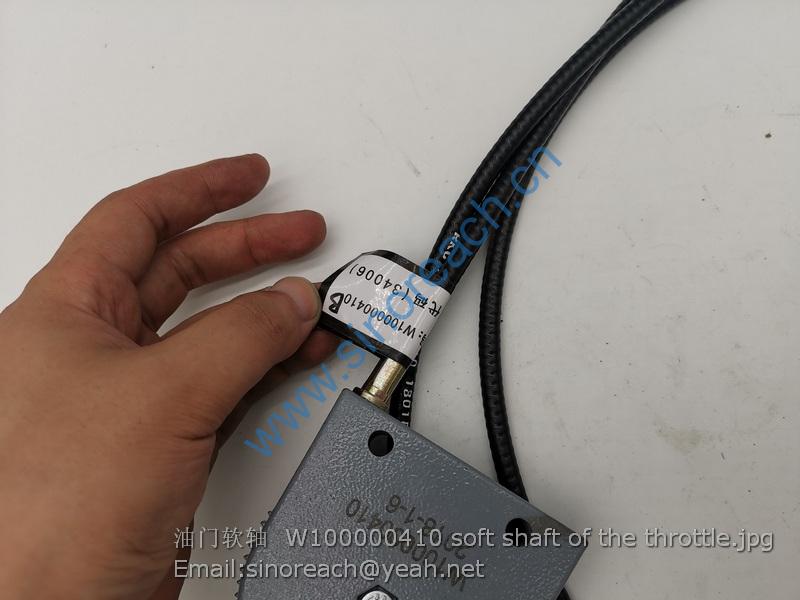

油门软轴
Push-pull cable pedal
W100000410 1
4
熄火软轴
Extinguishing cable
W100000420 1
1
螺栓 M12×80
Bolt M12×80
B040811280 4
1
2
螺栓 M8×20
Bolt M8×20
B040910820 4
2
3
螺栓 M10×25
Bolt M10×25
B040911025 2
3
4
螺母 M6
Nut M6
B050330605 2
4
5
垫圈 6
Washer 6
B060310601 2
5
6
垫圈 8
Washer 8
B060410802 4
6
7
垫圈 10
Washer 10
B060411002 2
7
8
垫圈 12-300HV
Washer 12-300HV
B060461203 4
8
9
喉箍（不锈钢）
Hose clamp
B190120600 D39-D64 4
9
10
冷却组(压路机)
Cooling package
W220800000 1
10
11
减震垫
Shock absorber
W220900000 4
11
12
膨胀水箱
Water tank
W221000000 1
12
13
水箱进水管
Cooling package hose inlet
Y02009001 1
13
14
水箱出水管
Cooling package hose outlet
Y02009002 1
14
15
中冷器进气管
Intercooler hose outlet
Y02009003 1
15
16
中冷器出气管
Intercooler hose inlet
Y02009004 1
16
17
中冷器硅胶管Ⅰ
Intercooler hose Ⅰ
Y02009005 1
17
18 中冷器硅胶管Ⅱ
Intercooler hose Ⅱ
Y02009006 1 18
19 T 型喉箍(60)
T-Hose clamp(60)
Y02009007 4
20 T 型喉箍(74) T-Hose clamp(74) Y02009008 4
21 T 型喉箍(90) T-Hose clamp(90) Y02009009 1
22 垫片 Gasket Y02009010 4
23 支架 Bracket Y02009011 1
24 U 型螺栓 U bolt Y02009012 M6×φ64 1
5
管(1000mm)
Pipe(1000mm)
W220800140 5P-1420 1
6
管(700mm)
Pipe(700mm)
W220800150 5P-1420 1
7
放水管(1000mm)
water out let Pipe(1000mm)
W220800160 5P-1420 1
8
管卡
Pipe clamp
W220800130 964035 1
9
水箱盖
Water tankCover
W220800110 3324175 1
10
管卡
Pipe clamp
W220800120 1P4278 4
22
水箱组件
Water tank assembly
W220800100 310420-01 1
23
中冷器组件
Evaporative cooler assem W220800200
230958-01 1
24
油冷器组件
Oil cooler assembly
W220800300 390370-01 1
25
导风罩
Wind guide cover
W220800400 674574-01 1
26
风扇护网
Fan shield
W220800500 675184-01 1
27
侧门密封条
Side door sealing
Z010201030 Z010201030 1
1
轮胎 20.5-25
Tire
NY0201100110 1
2
轮辋 17.00/2.0-25
Wheel rim
NY0201100110 1
轮胎轮辋组件(普通型)
Tire rim assembly
NY0201100110 1
发动机罩组件(配件装配)
NY0201200130 1
1
调整垫
Adjustment shim
Y02012078 4
1
2
垫圈 12
Washer
B060311203 GB/96-1985 4
2
3
螺栓 M12×30-10.9
Bolt
B040961230 GB/T5783-2000 1
3
4
螺栓 M6×16
Bolt
B040910616 GB/T5783-2000 1
4
5
垫圈 6
Washer
B060410602 GB/T97.1-2002 1
5
6
压路机发动机罩组件
Engine hood assembly
NY0201200100 1
6
7
调整垫
Adjustment shim Y02012077
1
7
8
机罩锁
Hood lock
W380000220 1
8
9
联接板组件
Link plate
Y02012084 1
9
螺栓 M10×20-10.9
Bolt
B040961020 GB/T5783-2000
2
锁轴组件
Lock pin assembly
Y02012085
固定板组件
Retaining plate
Y02012087
10
螺栓 M10×25-10.9
Bolt
B040961025 GB/T5783-2000
10
11
垫圈 10
Washer
B060311003 GB/96-1985
11
12
螺栓 M8×25-10.9
Bolt
B040960825 GB/T5783-2000
12
13
锁支架
Bracket
Y02012041
13
14 垫圈 8
Washer
B060310802 GB/96-1985 14
