Description

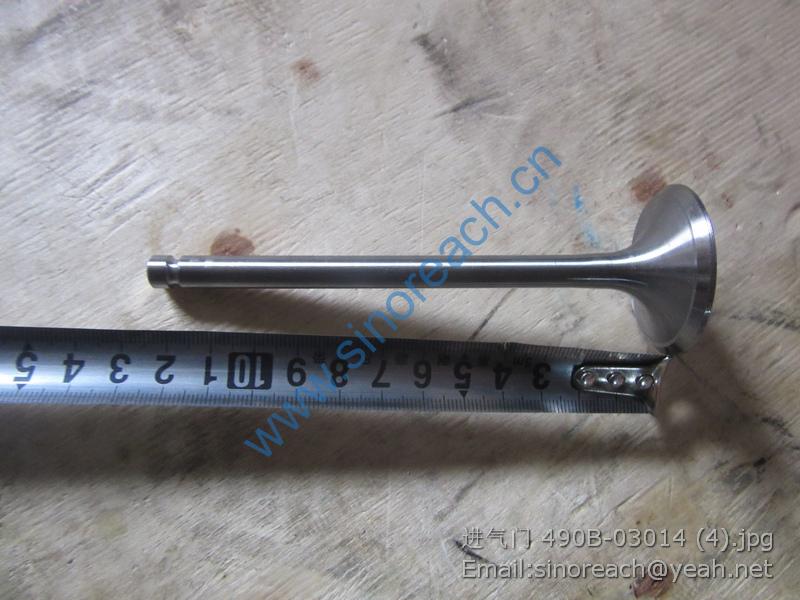

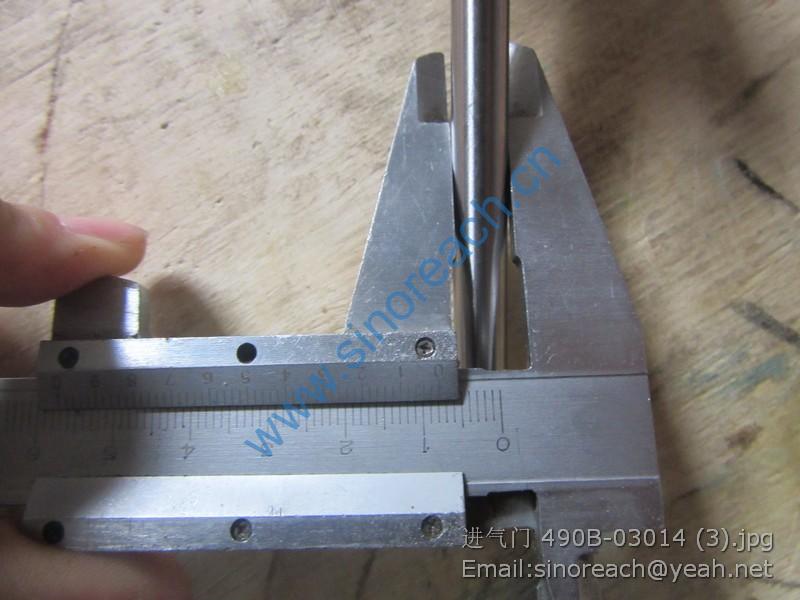

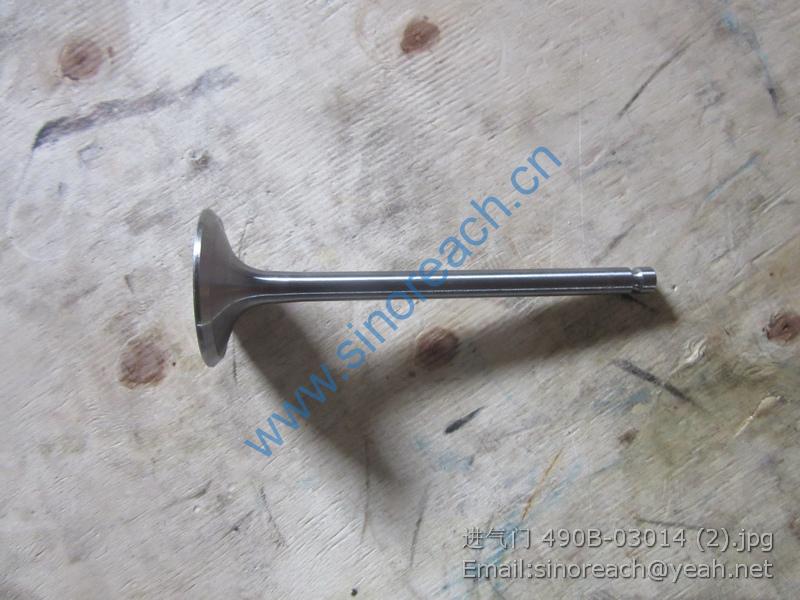

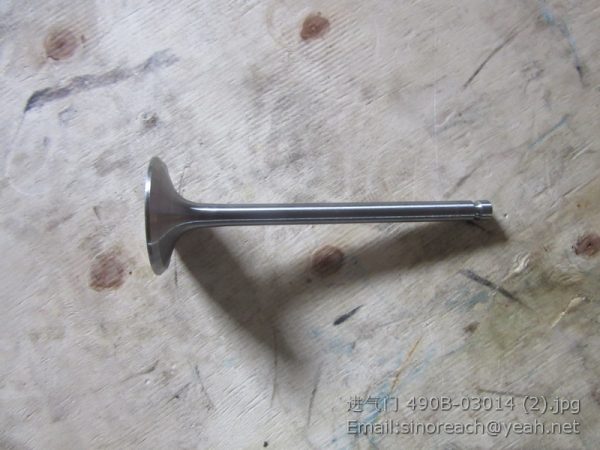

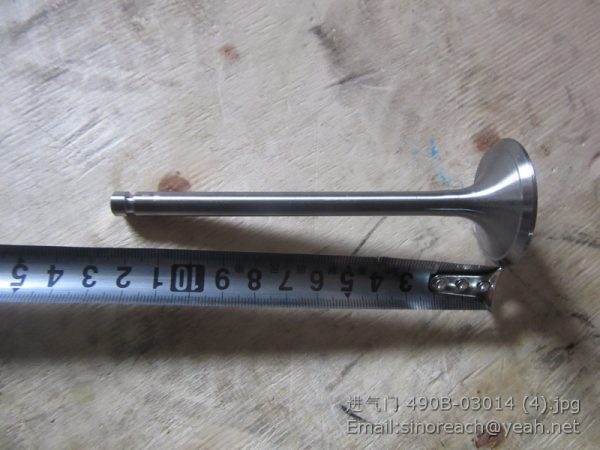

SP107253 VALVE INTAKE
| 1 | GB/T5783-2000 | 六角头螺栓全螺纹M12x35
Bolt M12x35 |
4 | 15 | SP107215 | 堵塞58
Plug 58 |
1 |
| 2 | GB/T 93-1987 | 标准型弹簧垫圈12
Spring washer 12 |
8 | 16 | 4SP107214 | 后凸轮轴衬套
Bushing |
1 |
| 3 | SP107298 | 飞轮壳
Flywheel housing |
1 | 17 | SP110095 | 曲轴止推片（下） | 1 |
| 4 | GB/T 5783-2000 | 六角头螺栓全螺纹M10X25
Bolt M10X25 |
8 | 18 | 曲轴止推片（上）
Upper thrust bushing |
||
| 5 | GB/T 93-1987 | 标准型弹簧垫圈6
Spring washer 6 |
2 | 19 | SP107219 | 主轴承螺栓
Bolt |
10 |
| 6 | GB/T67-2000 | 开槽盘头螺钉 M6×10
Screw M6×10 |
2 | 20 | SP110105 | 飞轮壳垫片
Shim |
1 |
| 7 | GB/T120.1-2000 | 内螺纹圆柱销 A10×25
Pin A10×25 |
2 | 21 | SP107221 | 后主轴承盖
Rear bearing cap |
1 |
| 8 | GB/T5782-2000 | 六角头螺栓全螺纹M12x45
Bolt M12x45 |
2 | 22 | SP110096 | 主轴瓦下瓦
Main beraing,lower half |
1 |
| 9 | SP107299 | 观察孔盖板
Cover,inspection hole |
1 | 23 | 主轴瓦上瓦
Main beraing,upper half |
||
| 10 | GB/T848-2002 | 小垫圈 12
Washer 12 |
8 | 24 | 34B0507 | 油压报警器
Oil pressure sensor |
1 |
| 11 | GB/T5782-2000 | 六角头螺栓全螺纹M12x30
Bolt M12x30 |
2 | 25 | SP107227 | 主轴承盖
Main bearing cover |
4 |
| 12 | MW100264 | 油封王 100x125x12
Oil seal 100x125x12 |
1 | 26 | SP107207 | 机体
Cylinder block |
1 |
| 13 | SP107222 | 后油封座
Oil seal seat |
1 | 27 | GB/T119.1-2000 | 圆柱销8 h8x20
Pin 8 h8x20
|
2 |
| 14 | SP107223 | 后油封座垫片
Gasket |
1 | 28 | GB/T119.1-2000 | 圆柱销10 h8x24
Pin 10 h8x24
|
2 |
| 29 | SP107238 | 碗形塞片15
Plug 15 |
2 | 43 | SP107217 | 进水管垫片
Gasket |
1 |
| 30 | SP107226 | 螺塞R1/8
Plug R1/8 |
3 | 44 | SP122727 | 进水管
Water pipe |
1 |
| 31 | SP107236 | 碗形塞片30
Plug 30 |
4 | 45 | GB/T5783-2000 | 六角头螺栓全螺纹M8x25
Bolt M8x25 |
6 |
| 32 | SP107237 | 碗形塞片40
Plug 40 |
3 | 46 | SP110090 | 放水阀部件
Drain valve assembly |
1 |
| 33 | SP107234 | 接管
Pipe |
1 | 49 | 00D2623 | 发动机前支架（左）
Engine front bracket(right) |
1 |
| 34 | SP107233 | 机油滤清器垫片
Gasket |
1 | 50 | 00D2624 | 发动机前支架（右）
Engine front bracket(right) |
1 |
| 35 | SP107235 | 柴油滤清器垫板
Fuel filter back plate |
1 | 51 | SP119093
|
O形密封圈
O-ring |
1 |
| 36 | GB/T93-1987 | 弹簧垫圈 8
Spring washer 8 |
14 | 52 | GB/T93-1987 | 弹簧垫圈 10
Spring washer 10 |
8 |
| 37 | GB/T5782-2000 | 六角头螺栓 M8×30
Bolt M8×30 |
4 | 53 | GB/T120.1-2000 | 六角头螺栓 M8×16
Bolt M8×16 |
2 |
| 38 | SP110091 | 气缸盖螺栓（甲）
Bolt |
14 | 54 | SP142849 | 呼吸器总成
Air intake assembly |
1 |
| SP110092 | 气缸盖螺栓（乙）
Bolt |
4 | 55 | GB/T97.1-2002 | 平垫圈A级8
Washer 8
|
14 | |
| 39 | SP107210 | 气缸盖衬垫
Gasket |
1 | 56 | GB/T119.1-2000 | 圆柱销16 h8x20
Pin 16 h8x20
|
2 |
| 40 | SP107211 | 气缸套
Cylinder liner |
4 | 57 | 490B-21010 | 喷油泵润滑油管部件
Pipe |
1 |
| 41 | SP107212 | 气缸盖封水圈
Water seal ring |
1 | 58 | 490BT-21003 | 气泵进油三通
Plug
|
1 |
| 42 | SP107213 | 凸轮轴衬套
Camshaft bushing |
2 | 59 | JB 892-77 | 组合密封圈10
Washer 10
|
1 |
