Description

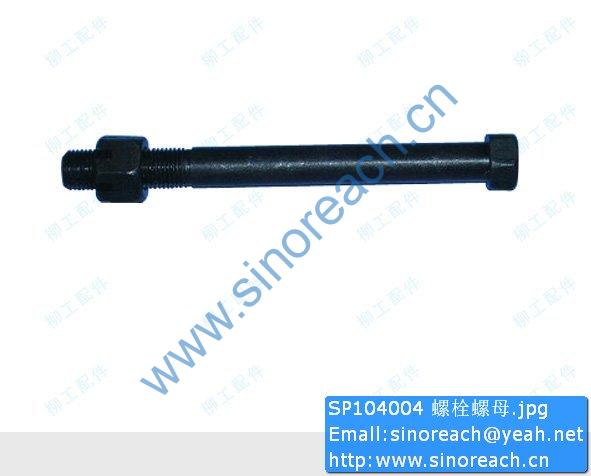

SP104004 Bolt and Nut for LIUGONG spare parts

D06B-102-74+A SP121938 Flywheel 1 D06B-001-78
D06B-103-01+B SP121939 starting ring gear 1 D06B-001-78
D06B-108-30+A SP104916 Flywheel bolt 8 D06B-000-111
B00001308 SP121564 Flat washer 8 D06B-000-111
D15-000-30B+A Oil pump assembly 1 D6114ZG9B+DB0790-ZJ
D20-000-30+C Fresh water pump assembly 1 D6114ZG9B+DB0790-ZJ
D20-102-30+A Pulley 1 D20-000-30
D20-003-01+A Water seal 1 D20-000-30
D20-002-30+A Impeller welding parts 1 D20-000-30
D20-104-01+A Impeller cover 1 D20-002-30
D20-103-30+A Impeller 1 D20-002-30
D02A-178-01+A Drain switch 1 D20-000-30
D20-004-30A+A Water pump bearing 1 D20-000-30
D20-101-30+D Water pump body 1 D20-000-30
D24A-000-30A+E Water pipe and water filter assembly 1 D6114ZG9B+DB0790-ZJ
D24A-115-02+C SP101501 Straight pipe joint 2 D24A-000-30A
D24A-005-30+A SP101495 “DCA4” water filter component 1 D24A-000-30A
D22-105-01+A SP101492 Socket pin 2 D24A-000-30A
B00001575 SP121592 hose clamp 2 D24A-000-30A
D24A-112-30A+B Water filter fixing plate 1 D24A-000-30A
D24A-110-30A+A SP101497 Outlet pipe 1 D24A-000-30A
B00001563 SP121586 Hose clamp 4 D24A-000-30A
D02A-164-01+B Hexagon socket screw plug (Z1/2) 1 D24A-000-30A
D24A-116-32+A SP101503 Water filter connecting hose 1 D24A-000-30A
D24A-006-01+A Water filter cover part 1 D24A-000-30A
D24A-113-01+C Water filter cover 1 D24A-006-01
D24A-114-01+A SP101500 water filter connector 1 D24A-006-01
D24A-118-01+A SP101504 Shut-off valve 2 D24A-006-01
B00002167 SP121674 Hexagon flange bolt 2 D24A-000-30A
D24A-135-02+A SP122023 sheath spring 1 D24A-000-30A
D24A-116-37+A SP122020 Water filter inlet hose 1 D24A-000-30A
B00002139 SP121662 Hexagon flange bolt 4 D24A-000-30A
D24A-107-02A+A SP111400 Rubber water inlet elbow 1 D24A-000-30A
D59-000-16+B Emergency stop assembly 1 D6114ZG9B+DB0790-ZJ
D59-105-06A+A SP105983 Parking solenoid 1 D59-000-16
D59-103-04+A SP122078 Tension spring 1 D59-000-16
D59-110-01+A SP122080 Hexagon head bolt 1 D59-000-16
B00000607 SP121513 Hexagon head bolt 2 D59-000-16
B00000609 SP121514 Hexagon head bolt 2 D59-000-16
B00000790 SP121524 I type hexagon nut 2 D59-000-16
B00000793 Type I Hexagon Nut 1 D59-000-16
B00001213 SP121550 Split pin 1 D59-000-16
B00001252 SP121556 Spring washer 4 D59-000-16
B00001253 SP121557 Spring washer 1 D59-000-16
B00001297 Flat washer 6 D59-000-16
B00001299 Flat washer 1 D59-000-16
D59-113-01+A Slotted flat point set screw 1 D59-000-16
D59-106-01A+A SP122079 Return spring hanger 1 D59-000-16
D59-001-08A+B SP122075 Solenoid valve bracket welding parts 1 D59-000-16
D59-101-08A+B Parking solenoid bracket 1 D59-001-08A
D59-102-07+A Support plate 1 D59-001-08A
B00000797 SP121525 I type hexagon nut, fine pitch 1 D59-001-08A
KLG-14J-000+B SP112148 air filter assembly 1 D6114ZG9B+DB0790-ZJ
F/KLG-KW2442A main filter element 1 KLG-14J-000+B
F/KLG-KW2442A (BX) Safety filter element 1 KLG-14J-000+B
9 400 360 317+A SP121481 Fuel injection pump assembly 1 D6114ZG9B+DB0790-ZJ
530-000+A SP121478 Fuel transfer pump 1 9 400 360 317+A
D22-000-30A+B Thermostat assembly 1 D6114ZG9B+DB0790-ZJ
D22-101-30C+A SP101489 Thermostat body 1 D22-000-30A
D22-105-01+A SP101492 Socket pin 2 D22-000-30A
B00000121 SP121490 Cylindrical pin 2 D22-000-30A
D02A-164-01+B Hexagon socket screw plug (Z1/2) 1 D22-000-30A
D22-103-30A+B Gasket 1 D22-000-30A
D22-102-06+B SP122017 Thermostat parts 1 D22-000-30A
D22-102-05+B SP122016 Thermostat parts 1 D22-000-30A
D02A-000-30B+E Body components 1 D6114ZG9B+DB0790-ZJ
D02A-114-01C+A SP111339 Camshaft thrust plate 1 D02A-000-30B
D02A-111-30+B crankshaft thrust bearing (upper) 1 D02A-000-30B
D02A-111-03+B crankshaft thrust bearing 1 D02A-111-30
D02A-111-30F+A SP121819 crankshaft thrust bearing (upper) 1 D02A-111-30
D02A-173-44+C SP121832 Oil pump bracket 1 D02A-000-30B
D02A-112-01+A SP101282 Main bearing lower bush 6 D02A-000-30B
D02A-115-01B+B rear cover 1 D02A-000-30B
D02A-116-01+B rear cover O-ring seal 1 D02A-000-30B
D02A-118-02B+B SP101287 crankshaft rear end oil seal 1 D02A-000-30B
D02A-166-01+B SP111348 Screw plug (Z1/8) 2 D02A-000-30B
D02A-171-30A+A SP101303 Cylinder liner sealing water ring 18 D02A-000-30B
D02A-306-01A+A SP111351 Hexagon flange bolt 4 D02A-000-30B
D02A-307-01+A SP101306 Gasket 1 D02A-000-30B
B00000098 SP121485 cylindrical pin 2 D02A-000-30B
B00000973 SP121538 Spherical washer 2 D02A-000-30B
B00001020 SP121540 Elastic cylindrical pin 3 D02A-000-30B
D02A-001-30B+E Body assembly parts 1 D02A-000-30B
D04-167-01A+A SP101383 Bulkhead (φ35) 8 D02A-001-30B
D02A-161-01+A SP101298 Bulkhead (φ20) 1 D02A-001-30B
D02A-113-01B+A SP101283 Camshaft bearing 7 D02A-001-30B
D02A-161-31+B SP111346 Bulkhead (φ20) 2 D02A-001-30B
D02A-308-01+A SP111352 Bulkhead 1 D02A-001-30B
D02A-309-01+B SP111353 cylindrical bulkhead 1 D02A-001-30B
D02A-310-01+A SP111354 Bulkhead (φ20) 1 D02A-001-30B
D04-166-01A+A SP101382 Bulkhead (φ28) 2 D02A-001-30B
D02A-002-31+C SP101270 machine body machining parts 1 D02A-001-30B
D02A-101-31+D Body 1 D02A-002-31
D02A-106-30+A SP101275 Main bearing cap bolt 14 D02A-002-31
D02A-105-40+A SP121814 Main bearing cover 1 D02A-002-31
D02A-322-40+A SP121839 Positioning sleeve 2 D02A-002-31
D02A-105-31+A SP121813 Main bearing cover 6 D02A-002-31
D02A-162-40+B SP121828 camshaft bulkhead 1 D02A-001-30B
D02A-324-40+A SP121841 O-ring 1 D02A-001-30B
D02A-142-05+A SP121826 dipstick tube 1 D02A-001-30B
B00001546 SP121578 Composite hard gasket 2 D02A-001-30B
D02A-170-01+A Screw plug 1 D02A-001-30B
D02A-139-03A+C 40C2061 Oil return pipe 1 D02A-001-30B
D02A-171-80+B SP121830 O-type rubber sealing ring 2 D02A-001-30B
B00001814 SP121612 Copper washer 1 D02A-001-30B
D02A-030-01+A SP121810 Piston cooling nozzle assembly 6 D02A-000-30B
B00000276 Steel ball 1 D02A-030-01
B00000135 SP121491 Cylindrical pin 2 D02A-030-01
D02A-137-30A+A SP104186 Piston cooling oil nozzle 1 D02A-030-01
D02A-302-01A+A SP111350 Pressure valve body 1 D02A-030-01
D02A-104-30A+C 40C2055 Cylinder liner 6 D02A-000-30B
D02A-110-01A+A SP101280 Main bearing upper bush 6 D02A-000-30B
D02A-121-01A+B SP111340 Rear cover gasket 1 D02A-000-30B
D02A-129-30A+A SP101292 Gear chamber gasket 1 D02A-000-30B
D02A-133-30A+B SP111442 oil cooler gasket 1 D02A-000-30B
D02A-163-01+B SP111347 Hexagon socket screw plug (Z3/4) 1 D02A-000-30B
D02A-179-01+A SP111349 union nut 1 D02A-000-30B
D02A-311-01+A SP111355 Hexagon flange bolt 2 D02A-000-30B
B00000102 SP121487 Cylindrical pin 2 D02A-000-30B
B00000631 SP121516 Hexagon head bolt 2 D02A-000-30B
B00002058 SP121641 Hexagon flange bolt 12 D02A-000-30B
