Description

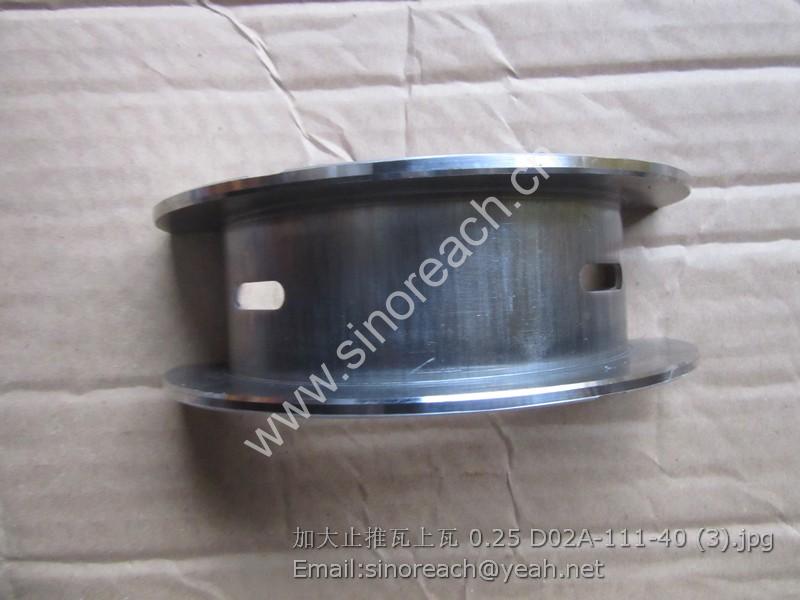

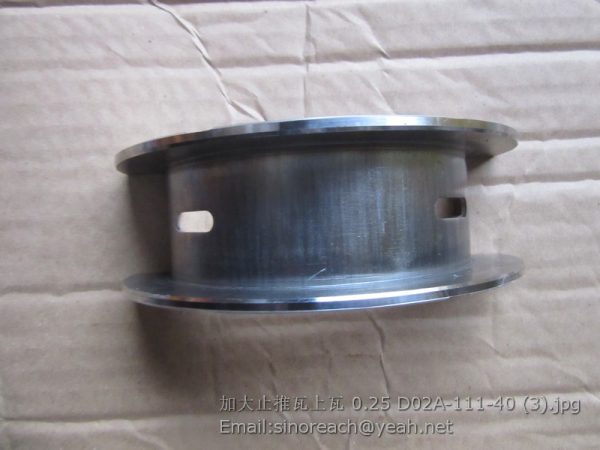

PS10703 D02A-111-40 B PS14973 Thrust tile
.
| 1 | 01V0085 | 螺栓M24×110-8.8-Zn.D | Bolt | 16 | GB5782-86 |
| 2 | 03V0535 | 锁紧螺母M24-8-Zn.D | Lock Nut | 16 | GB/T889.1-2000 |
| 3 | 06V0068 | 垫圈24-140HV-Zn.D | Washer | 16 | GB97.1-85 |
| 4 | 11U0028 | 调整垫片Ⅰ | Adjusting Shim | 4 | |
| 5 | 10U0024 | 调整垫Ⅱ | Shim | 4 | |
| 6 | 06V0008 | 垫圈12 | Spring Washer | 108 | GB93-87 |
| 7 | 00V0058 | 螺栓M12×45-8.8-Zn.D | Bolt | 96 | GB5783-86 |
| 8 | 03V0003 | 螺母M12-8-Zn.D | Nut | 96 | GB6170-86 |
| 9 | 01V0010 | 螺栓M12×60-8.8-Zn.D | Bolt | 6 | GB5782-86 |
| 10 | 12V0447 | O形圈180×2.65 | “O” ring | 2 | GB3452.1-76 |
| 11 | 53U0027 | 端盖 | Cover | 1 | |
| 12 | 35W0045 | 减振器 | Rubber Pad | 12 | |
| 13 | 04V0185 | 螺钉M10×45-8.8-Zn.D | Bolt | 16 | GB70-85 |
| 14 | 06V0002 | 垫圈10 | Spring Washer | 16 | GB93-87 |
| 15 | 53U0029 | 压盖 | Cover | 1 | |
| 16 | 22W0009 | 左振动室 | Left Vibratory
housing |
1 | |
| 17 | 01V0027 | 螺栓M16×60-8.8-Zn.D | Bolt | 40 | GB5782-86 |
| 18 | 06V0015 | 垫圈16 | Spring Washer | 40 | GB93-87 |
| 19 | 22X0005 | 滚轮 | Wheel | 1 | |
| 20 | 41W0013 | 中间轴 | Midddle Axes | 1 | |
| 21 | 22W0010 | 右振动室 | Right Vibratory
Housing |
1 | |
| 22 | 13V0208 | 密封圈B170×200×15 | Dust Wiper Seal | 2 | GB9877.1-88 |
| 23 | 83U0010 | 密封圈 | Dust Wiper Seal | 2 | |
| 24 | 75U0001 | 弹簧 | Spring | 1 | 18P0702 |
| 25 | 23V0064 | 双列圆锥滚子轴承2097722 | bearing | 2 | GB299-85 |
