Description

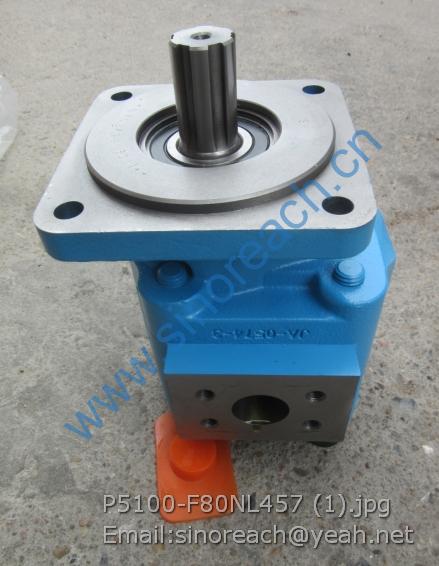

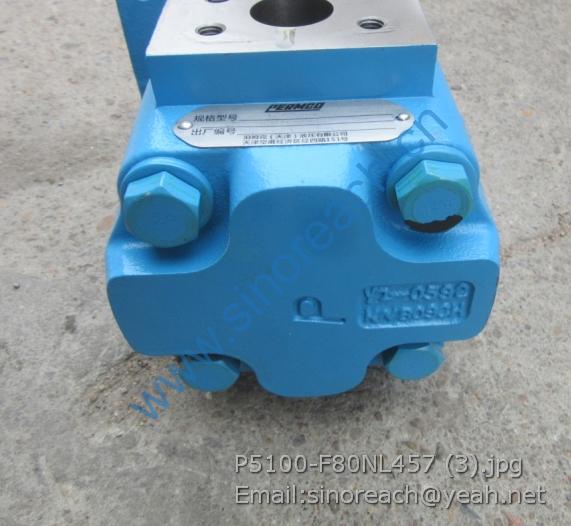

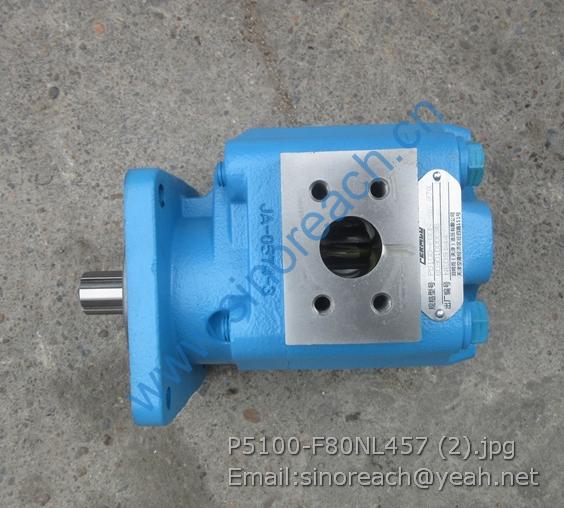

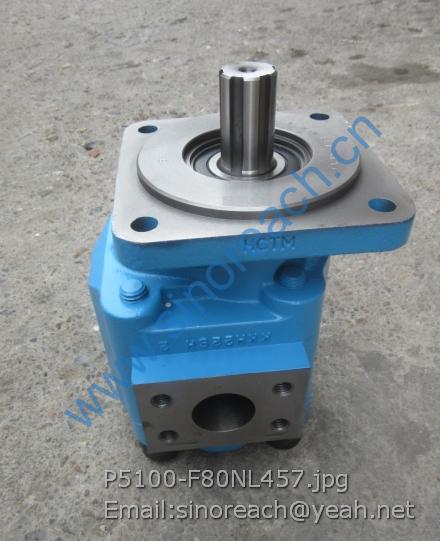

P5100-F80NL457-97G 60301000038 Gear Pump for LONKING CDM856 spare parts

1 CDM6210.03.01 COUNTER WEIGHT 配重 1
2 CDM6210.03-05 PLUG 闷堵 2
3 CDM6210.03-12 SLEEVE 套 4
4 GB/T1230 WASHER 30 垫圈 30 4
5 GB/T5782 BOLT M30×260 螺栓 M30×260 4

1 CDM6210.10.01-B TOOL KIT BOX 工具箱体 1
2 CDM6210.10.05-02-B LOWER SHIM PLATE 下垫板 1
3 GB/T5783 BOLT M12×25 螺栓 M12×25 2
4 GB/T97.1 WASHER 12 垫圈 12 6
5 GB/T5783 BOLT M12×35 螺栓 M12×35 4
6 GB/T6170 NUT M8 螺母 M8 3
7 CDM6210.10.05.01-B BRACKET 支座 2
8 CDM6210.10.02 TOOL KIT BOX COVER 工具箱盖 1
9 GB/T6170 NUT M6 螺母 M6 4
10 GB/T97.1 WASHER 6 垫圈 6 4
11 GB/T93 WASHER 6 垫圈 6 4
12 NBS504B DOOR LOCK 门锁 1
13 LG6230.25-02 ANTI-SLIP MAT 防滑垫 2
14 GB/T5783 BOLT M8×16 螺栓 M8×16 4
15 GB/T97.1 WASHER 8 垫圈 8 4
16 CDM6210.10-08 BRACE ROD 撑杆 2
17 GB/T91 COTTER PIN 1.6×20 开口销 1.6×20 4

1 CDM6210.16.01 BOTTOM SEALING PLAT Ⅰ 封板一 1
2 CDM6210.16-02 BOTTOM SEALING PLAT Ⅱ 封板二 1
3 CDM6210.16-03 BOTTOM SEALING PLAT Ⅲ 封板三 1
4 CDM6210.16-06 BOTTOM SEALING PLATⅥ 封板六 1
5 CDM6210.16-08 BOTTOM SEALING PLAT Ⅷ 封板八 1
6 CDM6210.16-07 BOTTOM SEALING PLAT Ⅶ 封板七 1
7 CDM6210.16-05 BOTTOM SEALING PLAT Ⅴ 封板五 1
8 CDM6210.16-04 BOTTOM SEALING PLAT Ⅳ 封板四 1
9 GB/T96 WASHER 12 垫圈 12 51
10 GB/T5783 BOLT M12×25 螺栓 M12×25 51
11 GB/T97.1 WASHER 10 垫圈 10 4
12 GB/T5783 BOLT M10×25 螺栓 M10×25 4
13 CDM6210.16-11 SEAL 密封垫 1
14 CDM6210.16-10 COVER BOARD 盖板 1

1 D60-10-00001 LEFT HANDLE 左手柄 1
2 D60-10-00002 RIGHT HANDLE 右手柄 1
3 GB/T818 SCREW M4×14 螺钉 M4×14 2
4 CDM6210.19.02.02 LEFT JOYSTICK 左操纵杆 1
5 CDM6210.19.02.01 RIGHT JOYSTICK 右操纵杆 1
6 GB/T5783 BOLT M10×20 螺钉 M10×20 8
7 GB/T97.1 WASHER 10 垫圈 10 24
8 GB/T5783 BOLT M16×50 螺栓 M16×50 4
9 GB/T97.1 WASHER 16 垫圈 16 4
10 CDM6210.19.03 PEDAL 踏板 2
11 GB/T5783 BOLT M10×20 螺栓 M10×20 16
12 Y20-26-00 SHOCK ABSORBER 减震器 4
13 CDM6210.19-01 WASHER 垫圈 4
14 CDM6210.19.04-02 RUBBER PEDAL 橡胶脚踏 2
15 CDM6210.19.04-03 RUBBER MAT 橡皮地垫 1
16 CDM6210.19.01 BOARD WELDMENT 底板焊合 1
17 CDM6210.19.04-05 HOSE CLAMP 管夹 2
18 CDM6210.08-07 WASHER 垫圈 4
19 GB/T96 WASHER 10 垫圈 10 4
