Description

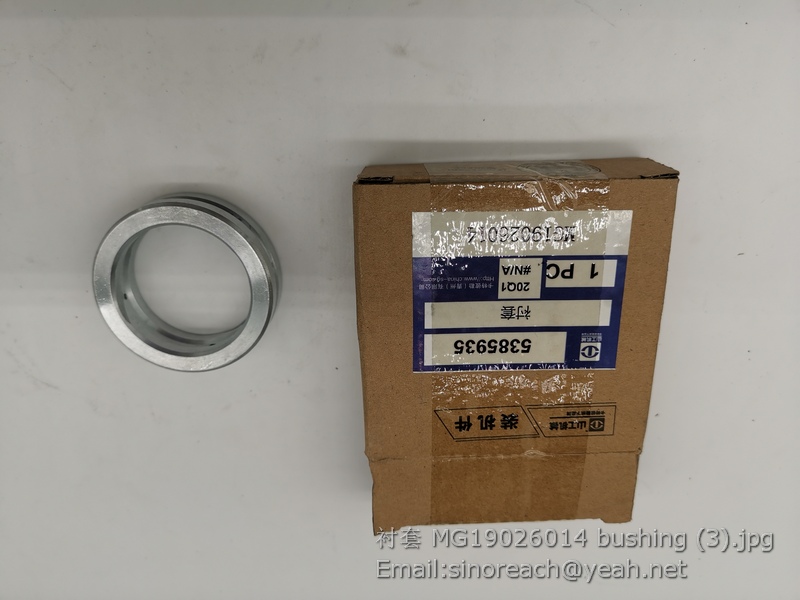

MG19026014衬套

1 Right Valve Group (4+ Plow Dozer RH) W42021000 3701262 1
2 Bolt M12×55 B040811255 GB/T5782-2000 6
3 Washer 12-300HV B060461203 GB/T97.1-2002 6
4 Spacer MG19014006 6
5 Shock Absorber W42042000 6
6 Adapter W42000019 S1CO-18-08 10

7 Adapter W42000020 S1CO-22-08 4
8 Adapter W42000021 SACCO-18-18-08OG 2
9 Adapter W42000236 SACCO-26-36-12OGX 1
10 Adapter W42000223 S1DO-30-12 1
11 Adapter W42000226 S1CO9-16-06OG 2
12 Retaining Plate MG19014003 2
13 ValveBracket Group （Right） MG19014005 1
14 Adapter W42000224 S1CO9-30-12OG 1
15 Adapter W42000223 S1DO-30-12 1
16 Nut M12 B050331211 GB/T6170-2000 2
17 Washer 12-200HV B060331203 GB96.1-2002 2
18 Left Valve Group (4+ Ripper LH) W42022000 3701261 1

1 Φ12.7High Pressure Hose Group L=1630 MG19015015 GB/T5783-2000 14
2 Φ12.7High Pressure Hose Group L=1520 MG19015013 GB/T6170-2000 3
3 Φ12.7High Pressure Hose Group L=1800 MG19015011 GB/T97.1-2002 17
4 Φ6.4High Pressure Hose Group L=1750 MG19015017 GB/T3452.1-2005 1
98
5 Adapter Z5A20101000 GB/T3452.1-2005 4
6 Steering GearXCEL45-160 W42009000 2
7 Adapter Z3A01801500 1
8 AdapterS1C-22-30 W42000018 1
9 AdapterSCC-22W W42000017 1
10 Φ12.7High Pressure Hose Group L=2200 MG19015007 1
11 Fixed Clip II MG19013067 2
12 Φ12.7High Pressure Hose Group L=1600 MG19015001 2
13 Single Clip （φ12.5） MG19015019 1
14 Clip （φ12.5） Z520171190 1
15 Pipe Cover （Φ12.5） MG19015020 1
16 AdapterS1CH9-22OG W42000016 S1CH-22 3
17 Front Wheel Steering Cylinder -Left63×45×267 W42094000 S1CH9-22OG 2
18 Clamping Plate MG19015021 SCC-22W 2

19 Φ12.7High Pressure Hose Group L=2000 MG19015003 S1C-22-30 4
20 Front Wheel Steering Cylinder -Right63×45×267 W42094000 XCEL45-160 1
21 Clip （Φ19） Z5A01701900 63×45×267 1
100
22 Single Clip Z5224501500 63×45×267 1
23 Φ12.7High Pressure Hose Group L=1670 MG19015005 4
24 Φ19.1High Pressure Hose Group L=3680 MG19015009 19
25 Bolt M10×20 B040911020 2
26 NutM10 B050331008 1
27 AdapterS1CH-22 W42000015 3
28 Bolt M10×50 B040911050 1
29 Washer10-300HV B060461002 11
30 Sleeve II MG19013079 1
31 Oil Cup M10×1 B150101000 2
32 O-RING 9×2.65 B160120090 1
33 O-RING 17×2.65 B160120170 4

1
Adapter W42000049 SLCHM-18-10-10OGDQ(SD09) 1
2
Φ7.9High Pressure Hose Group (4048) MG19016002 L=4048 1
4
Washer 10-300HV B060461002 GB/T97.1-2002 1
5
Sleeve II MG19013079 1
102
6
Double Clip Φ16 MG19013099 3
7
Bolt M10×20 B040911020 GB/T5783-2000 1
8
Φ7.9High Pressure Hose Group (3860) MG19016004 L=3860 1
9
Valve Block W42036000 1
10
Φ7.9High Pressure Hose Group (460) MG19016006 L=460 1
11
Adapter W42000235 S1CH9-18-16OG 3
12
Bolt M16×40 B040911640 GB/T5783-2000 2
13
Washer 16-300HV B060461603 GB/T97.1-2002 2
14
CentershiftLock Cylinder W42035000 90×55×62 1
15
Φ7.9High Pressure Hose Group (340) MG19016008 L=370 1
16
Bolt M8×60 B040810860 GB/T5782-2000 2
17
Washer 8-300HV B060460802 GB/T97.1-2002 2
18
Adapter W42000048 S1CH-18-16 3
