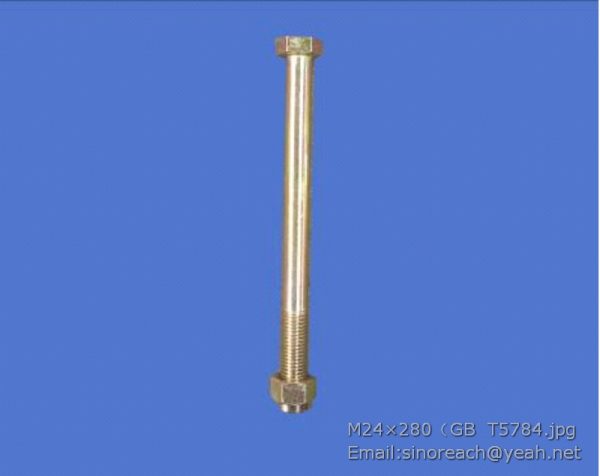

M24×280 GB/T5784 Front axle bolt and nut for LONKING PART
1 17272000307 F421CACF080804-2500 胶管总成 HOSE ASS’Y 2
2 17272006783 F7811517161616-2300- 胶管总成 HOSE ASS’Y 4
PG500
3 17272000300 F421CACE151508-2150 胶管总成 HOSE ASS’Y 2
4 30613100207 LG6230.13-02 橡胶套 RUBBER SLEEVE 2
5 60911010016 1BG-04 B2351 端直通接头 END STRAIGHT CONNECTOR 1
6 60911010035 BB-04 三通可调向接头 THREE-WAYADJUSTABLE 1
CONNECTOR
7 60911010018 1BG-08 B2351 端直通接头 END STRAIGHT CONNECTOR 1
8 60911010107 BB-08 三通可调向接头 THREE-WAY ADJUSTABLE 1
CONNECTOR
9 60911010089 2B9-04 直角接头 RIGHT ANGLE CONNECTOR 2
1 17272000329 F7811519121612-1500- 胶管总成(塑料护套 PG-119) HOSE ASS’Y(PLASTIC SLEEVE 2
PG1000 PG-119)
2 30605000092 LG6230.05A.03.01 钢管1 STEEL PIPE 1 1
3 30605000093 LG6230.05A.03.02 钢管2 STEEL PIPE 2 1
4 30605100060 LG6230.05.03-01 管夹座1 PIPE CLAMP SEAT 1 1
5 51204111322 GB/T5783 螺栓 M12×35 BOLT M12×35 4
6 51421110121 GB/T97.1 垫圈12 WASHER 12 4
7 17272000323 F7811515121212-740- 胶管总成(弹簧护套 SG131) HOSE ASS’Y (SPRING SLEEVE 2
SG740 SG131)
8 17272003202 F7811515121212-760- 胶管总成(弹簧护套 SG131) HOSE ASS’Y (SPRING SLEEVE 2
SG760 SG131)
9 56900000404 AS568 O 形圈 32.92×3.53 ORING 32.92×3.53 2
1 60911011234 FL-16 法兰夹 FLANGE CLAMP 14
2 17272000330 F78115191616(SL120) 胶管总成(塑料护套 PG-138) HOSE ASS’Y(PLASTIC SLEEVEPG-138) 1
16-1450-PG970
3 17272000328 F78115191216(SL120) 胶管总成(塑料护套 PG-119) HOSE ASS’Y(PLASTIC SLEEVEPG-119) 1
12-1500-PG1000
4 60911010573 FL-12 法兰夹 FLANGE CLAMP 22
5 51307001322 GB/T6170 螺母 M16 NUT M16 2
6 30605100063 LG6230.05A.03-01 管夹座 PIPE CLAMP SEAT 1
7 30605100150 LG6230.05.04-03 橡胶双管夹 RUBBER DOUBLE PIPE CLAMP 4
8 30605100151 LG6230.05.04-04 钢套 STEEL SLEEVE 2
9 30605100152 LG6230.05.04-05 压板 PRESS PLATE 2
10 51421130121 GB/T97.1 垫圈 16 WASHER 16 4
11 51203132621 GB/T5782 螺栓 M16×100 BOLT M16×100 2
12 51139220508 GB/T70.1 螺钉 M10×35 SCREW M10×35 16
13 51139220408 GB/T70.1 螺钉 M10×30 SCREW M10×30 56
14 51401100122 GB/T93 垫圈 10 WASHER 10 72
