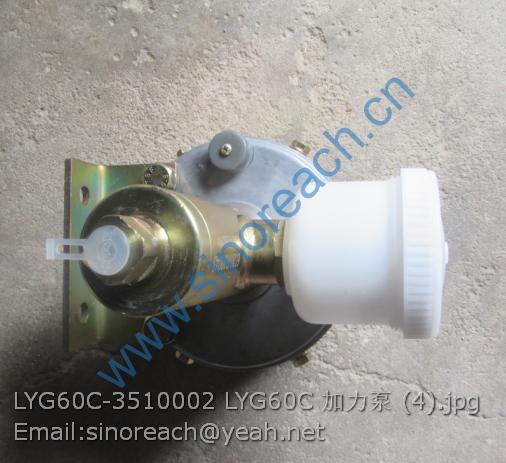

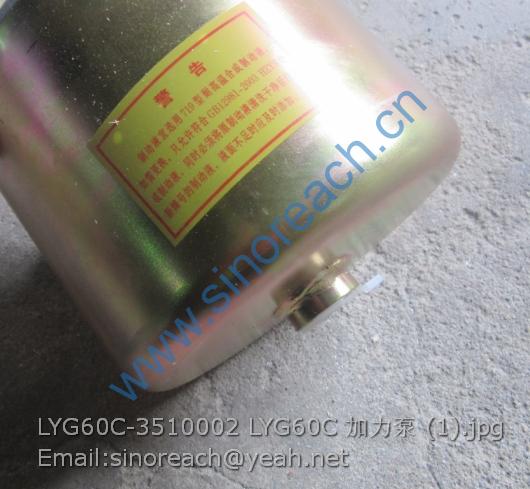

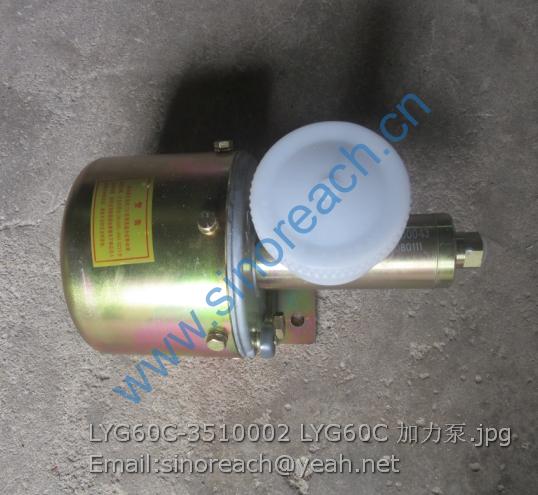

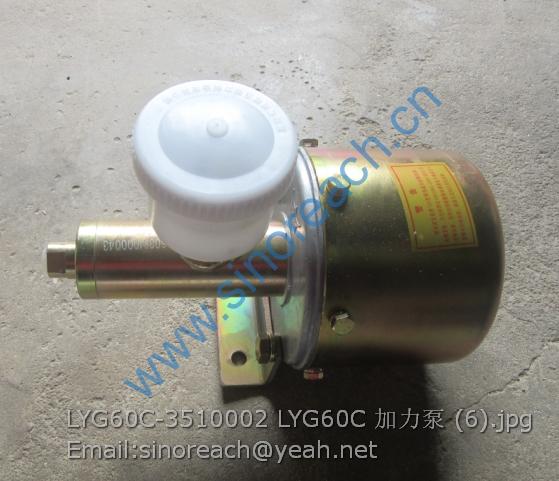

LYG60C-3510002 LYG60C Air booster pump
1 LE0817-51 OIL/AIR CHARGE FILTER 充油及换气过滤器 1
2 GB/T5783 BOLT M10×25 螺栓 M10×25 8
3 GB/T97.1 WASHER 10 垫圈 10 8
4 CDM6210.13.04 COVER BOARD 盖板 1
5 CDM6210.13-01 SPRING 弹簧 1
6 GB/T3452.1 O-RING Ф206×5.3 O 形圈Φ206×5.3 1
7 CDM6210.13-02 SPRAG 挡圈 1
8 CDM6210.13-03 PULL ROD 拉杆 1
9 GB/T6170 NUT M12 螺母 M12 1
10 Y113 200×150W OIL SUCTION FILTER 100Μ 吸油滤芯 100Μ 1
11 GB/T5783 BOLT M12×30 螺栓 M12×30 8
12 GB/T97.1 WASHER 12 垫圈 12 8
13 CDM6210.13-08 COVER BOARD 盖板 1
14 GB/T3452.1 O-RING Φ190×3.55 O 形圈Φ190×3.55 1
15 CDM6210.13-07 SPRING 弹簧 1
16 CDM6210.13-06 LOCATING BOARD 定位板 1
17 1300R010 BN4HC OIL RETURN FILTER 10Μ 回油滤清器 10Μ 1
18 LS127-T-M10 LIQUID TEMPERATURE/LEVEL GAUGE 液温液位计 1
19 CDM6210.13.01A HYDRAULIC OIL TANK BODY 液压油箱本体 1
20 GB/T3452.1 O-RING Φ128×3.55 O 形圈Φ128×3.55 2
21 CDM6210.13.03 OIL OUTLET PIPE 出油管 1
22 CDM6210.13-04 BOTTOM CAP BOARD 底盖板 1
CDM6210.13.05 BOTTOM CAP BOARD WELDING 底盖板焊合 1
23 GB/T5783 BOLT M10×25 螺栓 M10×25 12
24 GB/T97.1 WASHER 10 垫圈 10 12
25 CDM6210.12-04 ADJUSTING GASKET 调整垫 1
26 GB/T97.1 WASHER 20 垫圈 20 4
27 GB/T5783 BOLT M20×40 螺栓 M20×40 4
28 CDM6210.13.01.02-20 OIL RETURN SEAT THREE-WAY 回油座三通 1
29 CDM6210.12-03A BUTTERFLY BALL VALVE 蝶形球阀 2
30 CDM6210.12-03 CONNECTOR 接头 2
31 O-RING Ф56.74×3.53 O 形圈Ф56.74×3.53 1
32 CDM6210.13-05 PIPE 管 1
33 GB/T3452.1 O-RING Φ97.5×3.55 O 形圈Φ97.5×3.55 1
34 4G-08 PLUG 堵头 1
35 4G-12 PLUG 堵头 1
36 VR2C.O OIL RETURN POLLUTION ALARM（G1/2) 回油污染报警器（G1/2) 1
37 323-801-001-004N OIL TEMPERATURE SENSOR 油温传感器 1
38 MAGNET BLOCK M24 磁堵 M24 1
1 GB/T5783 BOLT M8×18 螺栓 M8×18 6
2 GB/T97.1 WASHER 8 垫圈 8 6
3 CDM6210.12-01 COVER BOARD 盖板 1
4 GB/T3452.1 O RING Φ128×3.55 O 形圈Φ128×3.55 1
5 20T-12B10-01
OIL FILL COVER AND OIL FILTER
ELEMENT
加油盖及滤芯 1
6 GB/T818 BOLT M5×14 螺钉 M5×14 5
7 GB/T97.1 WASHER 5 垫圈 5 5
8 224-011-000-060X OIL LEVEL SENSOR 油位传感器 1
9 LS127-T-M10
HYDRAULIC OIL TEMPERATURE AND
LEVEL INDICATOR LTM127 液温液位计 1
10 CDM6210.12.03 FUEL TANK 燃油箱本体 1
11 CDM6210.12.06 FOOT PEDAL 踏脚 1
12 GB/T97.1 WASHER 12 垫圈 12 2
13 GB/T5783 BOLT M12×25 螺栓 M12×25 2
14 DM6210.12-04 ADJUST SHIMS 调整垫 1
GB/T97.1 WASHER 20 垫圈 20 4
15 GB/T5783 BOLT M20×40 螺栓 M20×40 4
16 9C-30 INTERNAL SCREW PLUG 内螺纹堵头 1
17 CDM6210.12-03A BUTTERFLY VALVE 蝶形球阀 2
18 CDM6210.12-03 CONNECTER 接头 2
1 CDM6210.15.05 ENGINE HOOD 发动机罩 1
2 CDM6210.15.04 DOOR COMPONENT 车门组件 1
3 CDM6210.15-03 RIGHT TORSIONAL SPRING 右扭簧 1
4 CDM6210.15.01 COVER COMPONENTS BRACKET 覆盖件架 1
5 CDM6210.15-02 LEFT TORSIONAL SPRING 左扭簧 1
6 CDM6210.15.07 HAND RAIL 扶手 1
7 CDM6210.15.04.01 RIGHT SIDE DOOR 右侧门 1
8 GB/T5783 BOLT M12×25 螺栓 M12×25 10
9 GB/T96 WASHER 12 垫圈 12 13
10 GB/T5783 BOLT M12×30 螺栓 M12×30 2
11 CDM6210.15.04.04 LEFT SIDE REAR DOOR 左侧后门 1
12 CDM6210.15.04.03 LEFT SIDE FRONT DOOR 左侧前门 1
13 CDM6210.15.04.02 RIGHT SIDE PLATE 右侧面板 1
14 LGW-NBS6105010 ENGINE HOOD LOCK 发动机罩锁 2
15 NBS504B HOOD LOCK 机罩锁 2
