Description

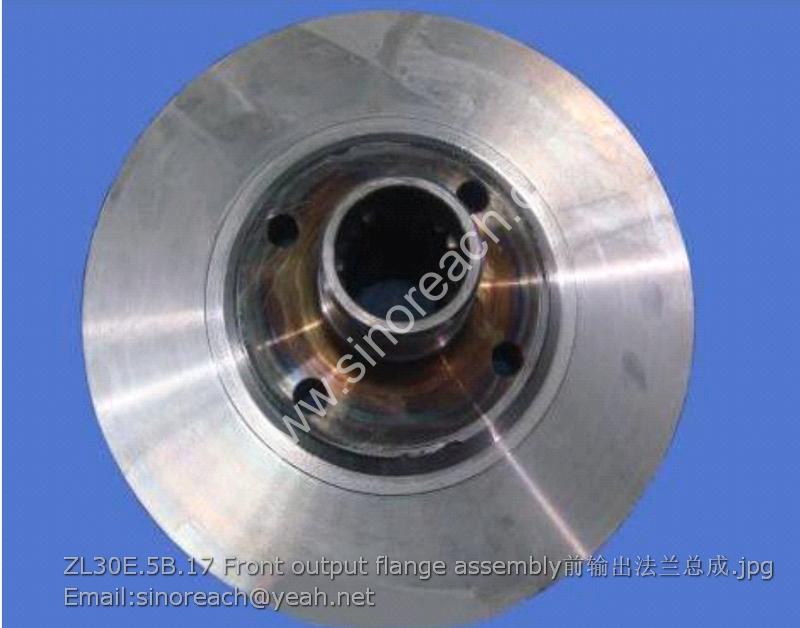

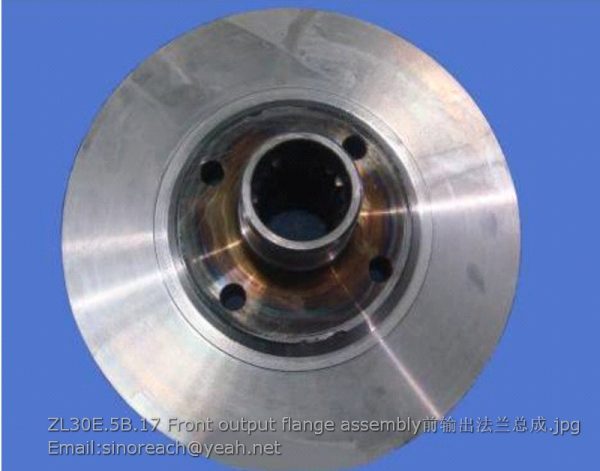

LONKING ZL30E.5B.17 Front output flange assembly

GB/T 6170 螺母 M12 Nut M12 2
LG853.08.07 压缩机出气管 Compressor air outlet pipe 1
LG856.08.01 储气筒总成 Air tank assembly 1
LG856.08.03 反冲储气筒 Recoil air tank 1 HP-3511CB-18
LG853.08.12 气压表接管 Pressure gauge connecting pipe 1 1300
LG856.08-001 四回路保护阀出气接头 Four-circuit protecting valve outlet connector 2
LG856.08.04 四回路保护阀 Four-circuit protecting valve 1 HP3518
GB/T 5783 螺栓 M8×20 Bolt M8×20 7
GB/T 93 垫圈 8 Washer 8 5
GB/T 97.1 垫圈 8 Washer 8 5
GB/T 5783 螺栓 M10×20 Bolt M10×20 8
GB/T 93 垫圈10 Washer 10 8
GB/T 97.1 垫圈10 Washer 10 8
LG853.01-005 管夹 Pipe clip 3
GB/T 5783 螺栓 M6×16 Bolt M6×16 3
GB/T 93 垫圈 6 Washer 6 3
LG853.08.05 前桥油管 Front axle pipe 2
90C-C/8I-L=2400 保护阀至右气筒胶管 Hose from protecting valve to right air tank 1
90C-C/8I-L=2700 保护阀至左气筒胶管 Hose from protecting valve to left air tank 1
90C-90°-90C/8I-L=450 干燥器至保护阀胶管 Hose from dryer to protecting valve 1

LG856.08-003 干燥器铰接螺栓 Dryer articulating bolt 1
20791-18-05/20711-18-05XJS8XL1600 空压机至干燥器钢丝软管 Hose from air compressor to dryer 1
LG856.08.05 干燥器 Dryer 1 HP3511
LG856.08.06 干燥器支架 Dryer bracket 1
90C-C/8I-L=2000 干燥器至反冲气筒胶管 From dryer to recoil air tank 1
LG856.08-004 堵头 Stopper 1
JB1002 铜垫 16 Copper pad 16 3
LG856.08-005 反充气筒固定板 Recoil air tank fixing board 1
