Description

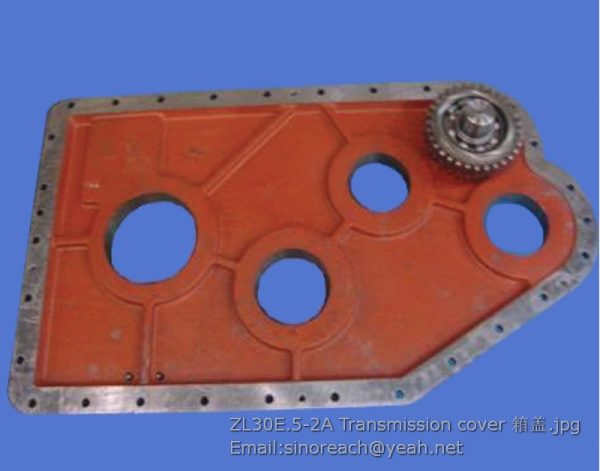

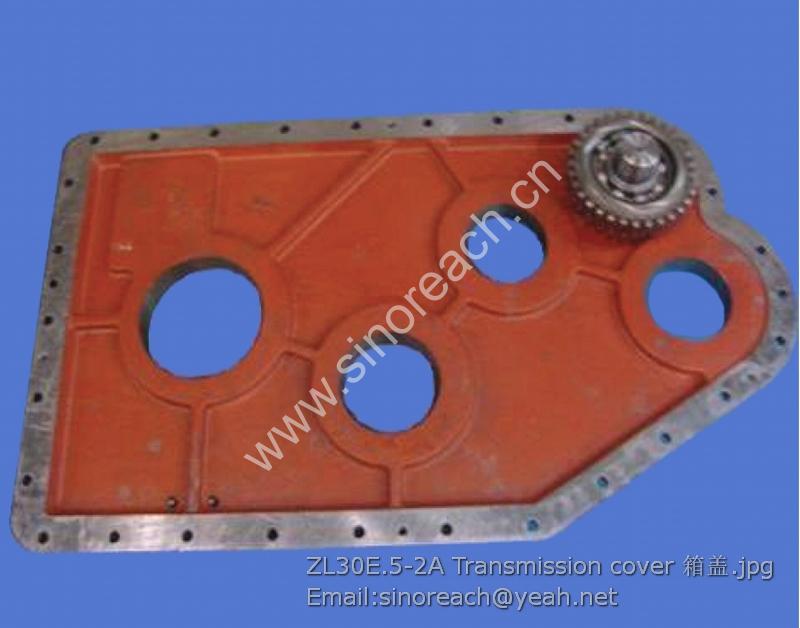

LONKING ZL30E.5-2A Transmission cover

LG853.02.02-001 铰接螺栓 Articulating bolt 2 402002A
JB1002-77 垫圈27 Washer 27 5
LG853.02.02-002 接头体 Adapter 1 402014B
JB1002-77 垫圈30 Washer 30 1
GB/T5783 螺栓M8×35 Washer M8×35 2
GB/T6170 螺母M8 Nut M8 2
GB/T93 垫圈8 Washer 8 2
GB/T97.1 垫圈8 Washer 8 4
LG855.02.02.01 双变滤油器 Oil filter 1 YFL-A400X25LS-G
LG855.02.02-001 接头体 Adapter 1 306016D
180H-270°-90H-25/28-Ⅰ-L1080 变矩器至滤油器胶管 Hose from torque converter to oil filter 1
90H-H/25/28-IIBZ-25/18BG-L750 滤油器至变矩器胶管 Hose from oil filter to torque converter 1
90H-45Q/25/28-Ⅰ-L2500 冷却器至变矩器胶管 Hose from cooler to torque converter 1
90H-330°-90Q/25/28-Ⅰ-L2300 变矩器至冷却器胶管 Hose from torque converter to cooler 1

GB/T93 垫圈18 Washer 18
GB/T6170 螺母AM18 Nut AM18
LG853.03-001 弧形垫圈 Arc washer
LG853.03-002 橡胶垫 Rubber pad
GB/T5782 螺栓M18×140 Bolt M18×140
LG856.03.01 变速箱总成 Transmission assembly
GB5783 螺栓M10×25 Bolt M10×25
GB/T97.1 平垫10 Washer 10
GB/T93 垫圈10 Washer 10

LG853.03.01.01 一轴总成 Shaft Ⅰ assembly 1 403100
LG853.03.01.02 二轴总成 Shaft Ⅱ assembly 1 403200
LG50EX.03.01.01 四轴总成 Shaft Ⅳ assembly 1 403300
GB/T5782 螺栓M10×25 Bolt M10×25 14
GB/T93 垫圈10 Washer 10 78
LG853.03.01.04 油底壳总成 Oil pan assembly 1 403400
LG855.03.01-001 制动钳固定板 Disc brake fixing board 1 403000-1
GB/T5782 螺栓M14×40 Bolt M14×40 4
GB/T93 垫圈14 Washer 14 12
LG853.03.01-001 密封垫 Gasket 1set 403001A
LG853.03.01-002 端盖 End cover 1 403002B
LG853.03.01-003 中盖 Middle cover 1 403002A
LG50EX.03.01.02 三轴总成 Shaft Ⅲ assembly 1 403500
LG853.03.01-004 螺塞 Plug screw 1 403062
GB1235-76 O型密封圈20×2.4 O-ring 20×2.4 2
GB/T5782 螺栓M10×30 Bolt M10×30 35
GB/T5782 螺栓M10×40 Bolt M10×40 3
GB/T5782 螺栓M10×75 Bolt M10×75 5
LG853.03.01-005 箱体 Case body 1 403005A
LG853.03.01-006 一挡油缸体 GearⅠ cylinder body 1 403004A
LG853.03.01.06 一挡活塞总成 GearⅠ piston assembly 1 403006A-010A
