Description

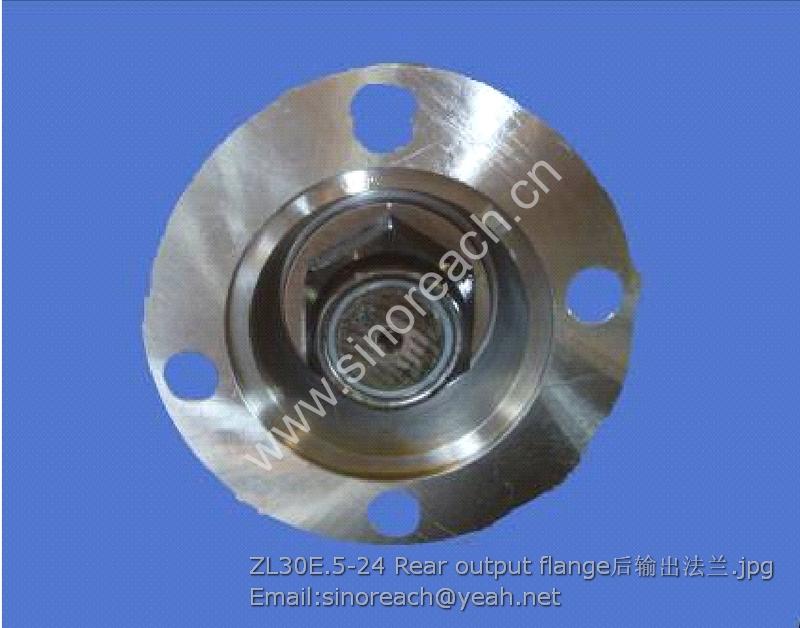

LONKING ZL30E.5-24 Rear output flange

GB/T5783 螺栓M8×80 Bolt M8×80 2
GB/T97.1 垫圈8 Washer 8 12
GB/T93 垫圈8 Washer 8 4
GB/T6170 螺母M8 Nut M8 12
LG853.07-004 后车架回油过渡接头压板 Rear frame oil return transition connector press plate 2 LG50F.07031A
GB/T5782 螺栓M10×50 Bolt M10×50 4
LG855.07.09 前车架回油过渡接头 Front frame oil return transition connector 1 LG50F.07032-033A
H-H/38/42-II-L1152 铰接回油胶管 Articulated oil return hose 1
H-H/32/34-4S-L1260 铰接进油胶管 Articulated oil inlet hose 1
LG853.07-002 前(后)车架进油过渡接头压板 Front (rear) frame oil inlet transition connector press plate 2 LG50F.07035A
GB/T5782 螺栓M10×42 Bolt M10×42 4
P5100-F100NM457 97/
P124-G10Y03G 工作/先导双联泵 Implement and pilot duplex pump 1
LG853.06-001 密封垫片 Seal gasket 1
GB/T97.1 垫圈12 Washer 12 2
GB/T6170 螺母M12 Nut M12 7
GB/T93 垫圈12 Washer 12 15
φ51×4-L520 吸油胶管 Oil suction hose 1
JB/T8870-1999 喉箍φ51-70 Hoopφ51-70 2
LG853.07-007 压板 Press plate 8 LG50F.06012A
GB1235-76 O型圈45×3.5 O-ring 45×3.5 8

45F(32)-270°-90F (32) /25/28-2S-L500 工作泵出油胶管 Implement pump oil outlet hose 1
LG855.07.10 工作泵出油钢管 Implement pump oil outlet pipe 1 LG50F.07017-018A
H-H/38/42-I-L575 回油胶管 Oil return hose 1
LG855.07.11 后车架回油过渡接头 Rear frame oil return transition connector 1 LG50F.07034-034A
LG50EX.07.05 前车架进油过渡接头 Front frame oil inlet transition connector 1 LG50F.07036-036B
GB/T5782 螺栓M12×180 Bolt M12×180 3
LG50EX.07.06 分配阀动臂联后腔钢管(一) Pipe from distribution valve to lift arm rear chamber Ⅰ 1 LG50F.07010-011A
LG50EX.07.07 分配阀动臂联前腔钢管(一) Pipe from distribution valve to lift arm front chamber Ⅰ 1 LG50F.07006-008A
LG50EX.07-001 压板 Press plate 1 LG50F.07016A
GB/T5783 螺栓M12×45 Bolt M12×45 4
GB1235-76 O形圈50×3.1 O-ring 50×3.1 2
GB/T5782 螺栓M10×60 Bolt M10×60 8
GB/T6170 螺母M10 Nut M10 8
LG50EX.07-005 管夹 Pipe clip 4
LG50EX.07.13 动臂钢管固定板 Lift arm pipe fixing board 1
LG50EX.07.08 分配阀动臂联后腔钢管(二) Pipe from distribution valve to lift arm rear chamber Ⅱ 1 LG50F.07012-012A
LG50EX.07.09 分配阀动臂联前腔钢管(二) Pipe from distribution valve to lift arm front chamber Ⅱ 1 LG50F.07009-009A
LG855.07-003 管夹 Pipe clip 1
