Description

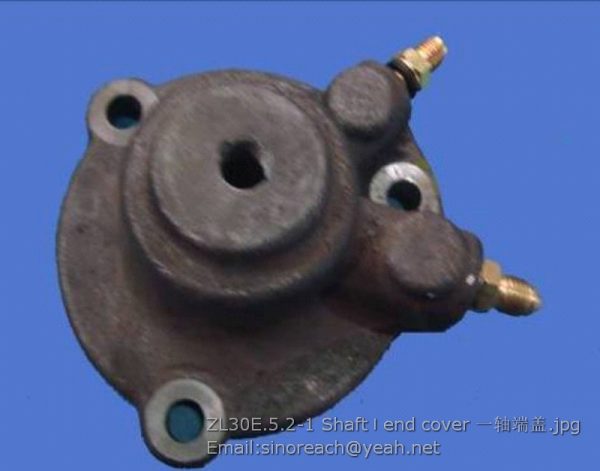

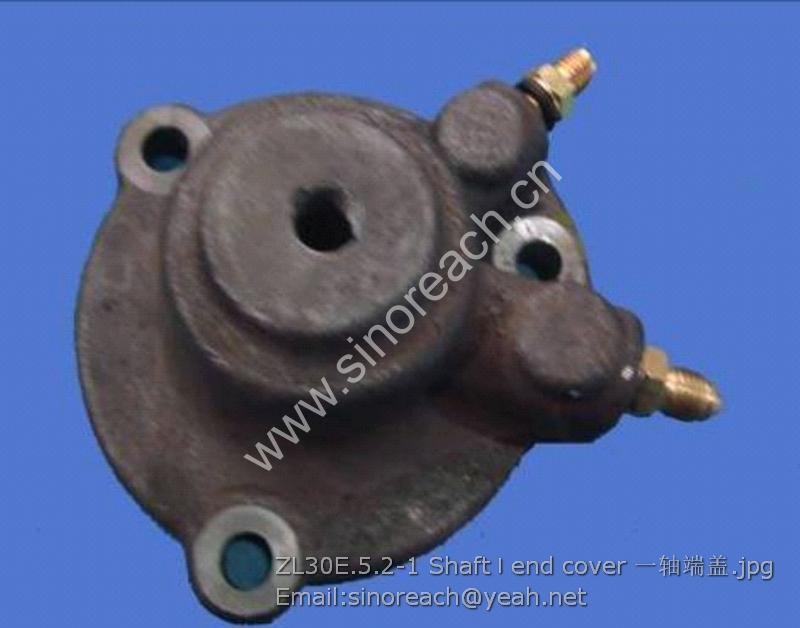

LONKING ZL30E.5.2-1 Shaft Ⅰ end cover

LG30F.04Ⅰ.01 前驱动桥总成 Front axle assembly 1 LG30F.04000A
GB/T5786 螺栓M14×1.5×42 Bolt M14×1.5×42 24 404026
GB/T889 螺母 M14×1.5 Nut M14×1.5 24
LG30F.04Ⅰ.02 前传动轴总成 Front drive shaft assembly 1 304100D
LG30F.04Ⅰ.03 中间支承轴总成 Intermediate support shaft assembly 1 304311-315D
GB/T5783 螺栓 M16×50 Bolt M16×50 4
GB/T97.1 垫圈 16 Washer 16 4
GB/T93 垫圈 16 Washer 16 4
LG30F.04Ⅰ.04 中间传动轴总成 Intermediate drive shaft assembly 2 304300D
LG30F.04Ⅰ.06 后驱动桥总成 Rear axle assembly 1 LG30F.04000A
LG30F.04Ⅰ.07 轮辋总成 Rim assembly 4 304600D
GB/T2980 17.5-25轮胎 E-3/L-3 Tyre 17.5-25 E-3/L-3 4
GB/T5784 前桥螺栓M24×280 Front axle bolt M24×280 8
GB/T890 螺母M24 Nut M24 16
GB/T5784 后桥螺栓M24×240 Rear axle bolt M24×240 8

LG30F.04Ⅰ.01.01 轮边减速器总成 Wheel reductor assembly 2 LG30F.04400A
ZL50EX.04.01-002 轮辋螺母 Rim nut 24 LG50F.04003A
LG30F.04Ⅰ.01-001 制动盘 Brake disc 2 LG30F.04001A
LG30F.04Ⅰ.01-002 螺栓 Bolt 32 LG30F.04002A
GB/T93 垫圈18 Washer 18 32
LG30F.04Ⅰ.01.04 钳盘式制动器 Disc brake 4 SOMA
GB/T5782 螺栓 M20×65 Bolt M20×65 12
GB/T93 垫圈20 Washer 20 12
LG30F.04Ⅰ.01-003 半轴 Axle shaft 2 LG30F.04003A
LG30F.04Ⅰ.01.02 前后桥壳总成 Front/rear axle housing assembly 1 LG30F.04500A
LG30F.04Ⅰ.01.03 主减速器总成 Final reductor assembly 1 LG30F.04300A
LG30F.04Ⅰ.01-004 密封垫 Seal gasket 1 LG30F.04004A
LG853.02.01-011 螺塞 Plug 2 402223
LG853.04.01.04 透气管 Vent pipe 1
GB/T6173 螺母 M10×1 Nut M10×1 1
LG30F.04Ⅰ.01.05 刹车片 Brake plate 8
LG30F.04Ⅰ.01-005 固定圆锥套 Securing taper bush 3 LG30F.04005A
GB/T6170 螺母M12 Nut M12 3
GB/T95 垫圈 12 Washer 12 3
LG30F.04Ⅰ.01-006 螺柱 Stud 3 LG30F.04006A
GB/T5783 螺栓M12×35 Bolt M12×35 9
GB/T5783 螺栓 M12×45 Bolt M12×45 2

LG30F.04Ⅰ.01.01 轮边减速器总成 Wheel reductor assembly 2 LG30F.04400A
ZL50EX.04.01-002 轮辋螺母 Rim nut 24 LG50F.04003A
LG30F.04Ⅰ.01.04 钳盘式制动器 Disc brake 2 SOMA
LG30F.04Ⅰ.01-001 制动盘 Brake disc 2 LG30F.04001A
LG30F.04Ⅰ.01-002 螺栓 Bolt 32 LG30F.04002A
GB/T93 垫圈18 Washer 18 32
GB/T5782 螺栓 M20×65 Bolt M20×65 12
GB/T93 垫圈20 Washer 20 12
LG30F.04Ⅰ.01-003 半轴 Axle shaft 2 LG30F.04003A
LG30F.04Ⅰ.06.01 后桥壳总成 Rear axle housing assembly 1 LG30F.04500A
LG30F.04Ⅰ.06.02 后主减速器总成 Rear final redactor assembly 1 LG30F.04300A
LG30F.04Ⅰ.01-004 密封垫 Seal gasket 1 LG30F.04004A
LG853.02.01-011 螺塞 Plug 2 402223
LG853.04.01.04 透气管 Vent pipe 1
GB/T6173 螺母 M10×1 Nut M10×1 1
LG30F.04Ⅰ.01.05 刹车片 Brake plate 8
GB/T5783 螺栓M12×35 Bolt M12×35 9
GB/T95 垫圈 12 Washer 12 3
GB/T5783 螺栓 M12×45 Bolt M12×45 2
LG30F.04Ⅰ.01-005 固定圆锥套 Securing taper sleeve 3 LG30F.04005A
GB/T6170 螺母M12 Nut M12 3
LG30F.04Ⅰ.01-006 螺柱 Stud 3 LG30F.04006A
